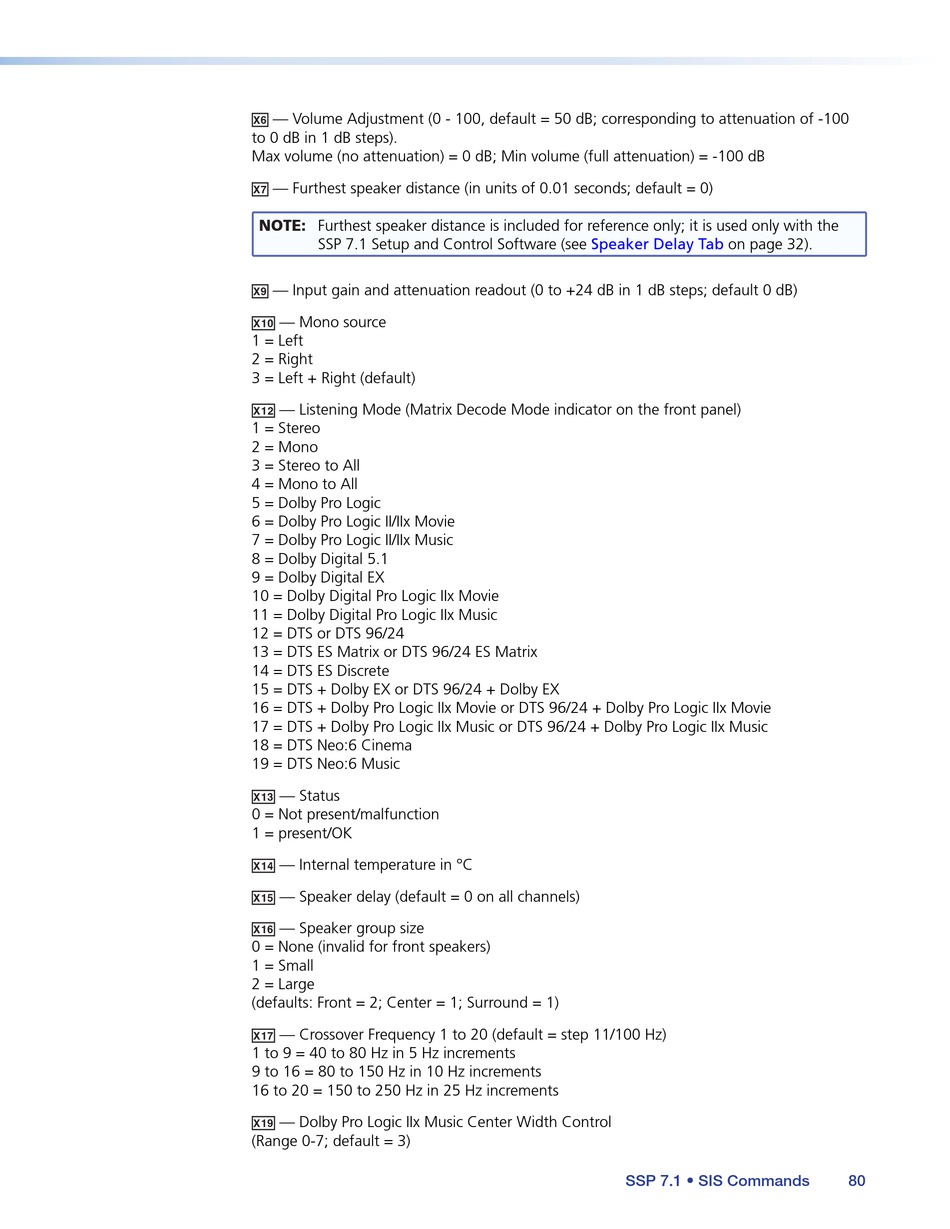

Extron electronics SSP 7.1 User Manual page 86

X^
— Volume Adjustment (0 - 100, default = 50 dB; corresponding to attenuation of -100
to 0 dB in 1 dB steps).
Max volume (no attenuation) = 0 dB; Min volume (full attenuation) = -100 dB
X&
— Furthest speaker distance (in units of 0.01 seconds; default = 0)
NOTE:
Furthest speaker distance is included for reference only; it is used only with the
SSP 7.1 Setup and Control Software (see
X(
— Input gain and attenuation readout (0 to +24 dB in 1 dB steps; default 0 dB)
X1)
— Mono source
1 = Left
2 = Right
3 = Left + Right (default)
X1@
— Listening Mode (Matrix Decode Mode indicator on the front panel)
1 = Stereo
2 = Mono
3 = Stereo to All
4 = Mono to All
5 = Dolby Pro Logic
6 = Dolby Pro Logic II/IIx Movie
7 = Dolby Pro Logic II/IIx Music
8 = Dolby Digital 5.1
9 = Dolby Digital EX
10 = Dolby Digital Pro Logic IIx Movie
11 = Dolby Digital Pro Logic IIx Music
12 = DTS or DTS 96/24
13 = DTS ES Matrix or DTS 96/24 ES Matrix
14 = DTS ES Discrete
15 = DTS + Dolby EX or DTS 96/24 + Dolby EX
16 = DTS + Dolby Pro Logic IIx Movie or DTS 96/24 + Dolby Pro Logic IIx Movie
17 = DTS + Dolby Pro Logic IIx Music or DTS 96/24 + Dolby Pro Logic IIx Music
18 = DTS Neo:6 Cinema
19 = DTS Neo:6 Music
X1#
— Status
0 = Not present/malfunction
1 = present/OK
X1$
— Internal temperature in °C
X1%
— Speaker delay (default = 0 on all channels)
X1^
— Speaker group size
0 = None (invalid for front speakers)
1 = Small
2 = Large
(defaults: Front = 2; Center = 1; Surround = 1)
X1&
— Crossover Frequency 1 to 20 (default = step 11/100 Hz)
1 to 9 = 40 to 80 Hz in 5 Hz increments
9 to 16 = 80 to 150 Hz in 10 Hz increments
16 to 20 = 150 to 250 Hz in 25 Hz increments
X1(
— Dolby Pro Logic IIx Music Center Width Control
(Range 0-7; default = 3)
Speaker Delay Tab
on page 32).
