Main Tab

The program opens with the Main tab selected. Two other tabs are available
Setup and
they appear at the top of the screen. Full instructions on how to configure each screen are
available in the help file, which can be accessed under the Help menu option or by pressing
F1 from within the program.

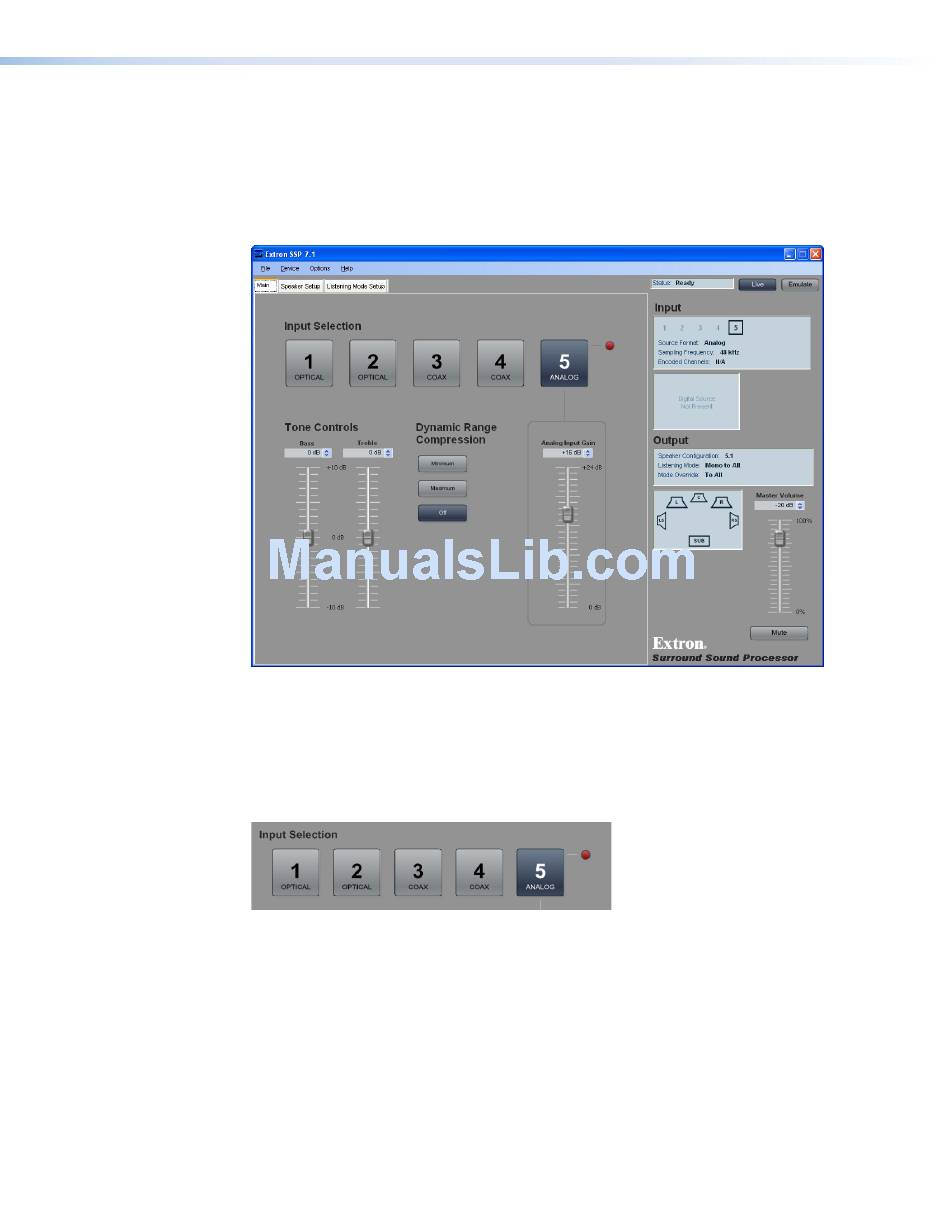

Figure 16.
The Main tab offers the options that are available on the SSP 7.1 front panel:
Input source — The five buttons allow the user to select between five possible audio
inputs: four digital inputs and one analog input. The currently selected input is shown in
blue; the other sources are shown in gray. Further information about the
available on page
Figure 17.
Listening Mode Setup). It is advisable to configure each tab in the sequence
Main Tab
61.
Main Tab — Input Selection
SSP 7.1 • Setup and Control Software
(Speaker
input sources is
26
