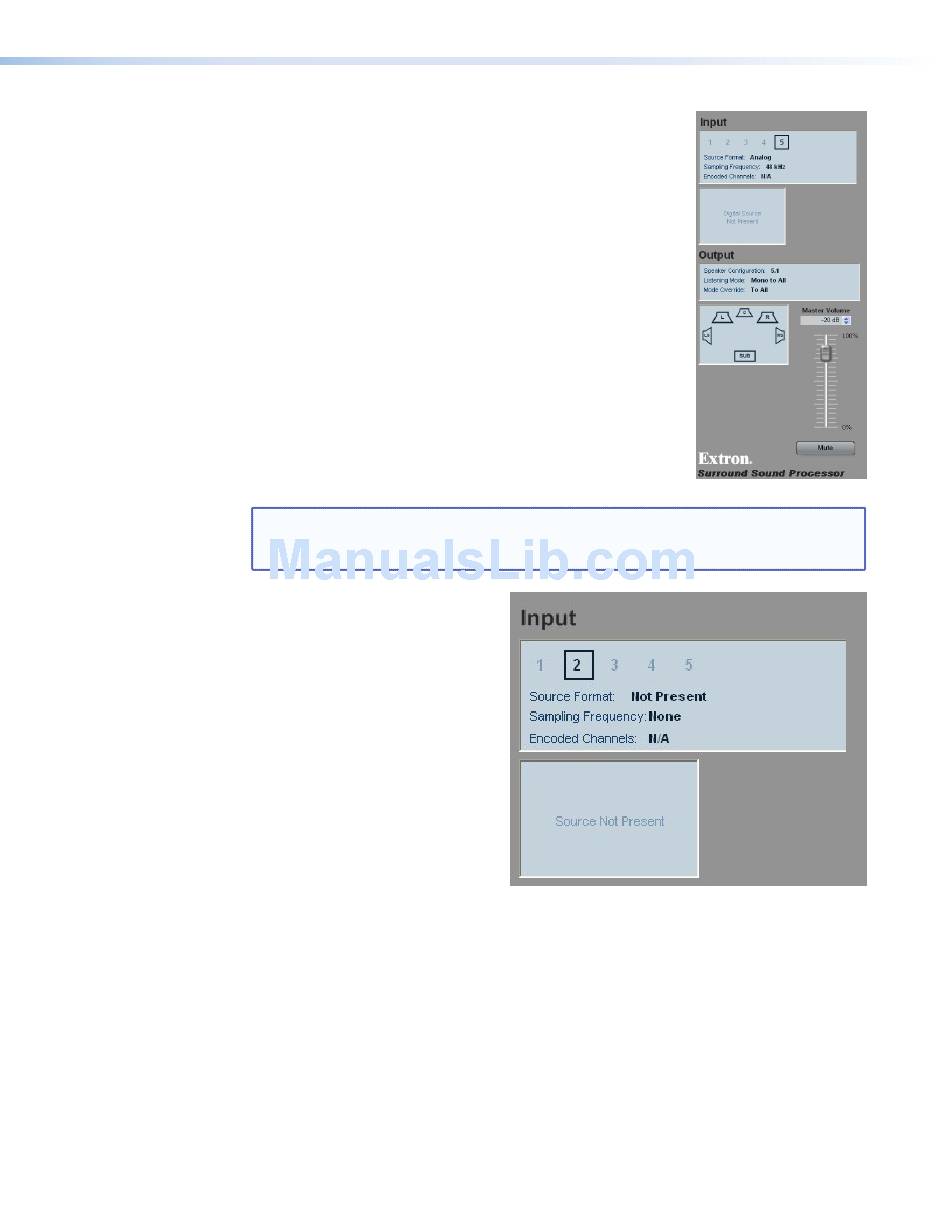

Input and Output information bar — The Input and Output
information bar, on the right side of the screen, is visible in all tabs
and provides information about:
•
The current input
о
Selected input channel
о Source format
о Sampling frequency
о
Encoded channels
•
The current output
о
Speaker configuration
о Listening mode
о Mode override selection
•
Master volume
•
Mute
NOTE: While the Master Volume value and Mute status can be adjusted using the slider
bar and button in this panel, the Input and Output status information in this
information bar is read only.
Input status — The Input box
indicates which input channel is being
used. Underneath are three lines of
information about the source format,
the sampling frequency, and encoded
channels.
The box underneath highlights the
audio source's active channels in blue.
L = Left front
C = Center
R = Right front
LS = Left surround
RS = Right surround
S = Surround (only available with 3/1
or 2/1 sources): LS and RS carry a
mono surround signal.
SB = Surround back
LFE = Low Frequency Effect (primarily used for subwoofer channel output)
Further information about the source format configuration from the SSP 7.1 front panel can
be found on page 6. To understand more about source formats, see page
SSP 7.1 • Setup and Control Software
61.
