Dolby, DTS and Mono Settings Tab

After configuring

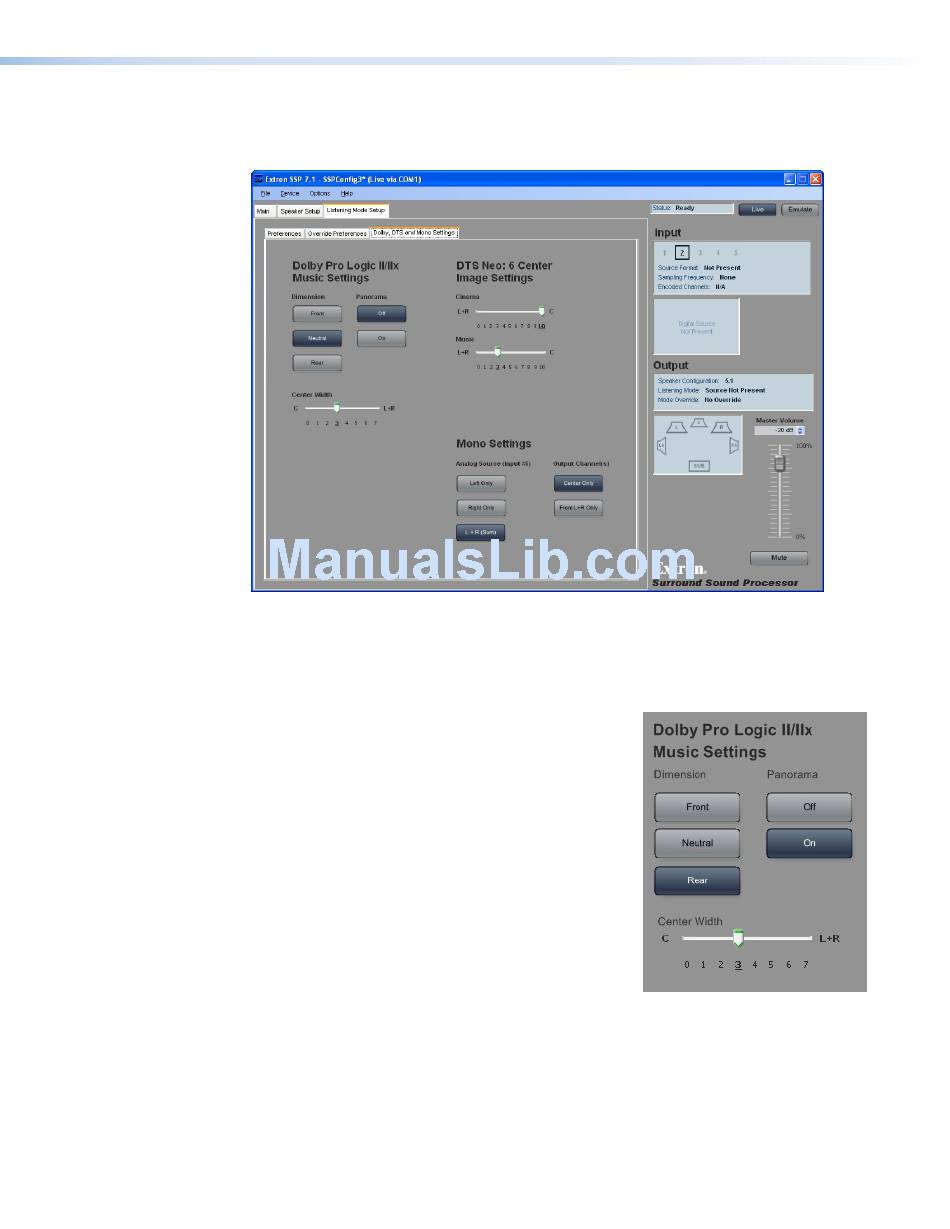

Figure 37.
This tab allows advanced adjustments to the settings for Dolby ProLogic II/IIx Music,
DTS Neo:6, and how mono signals are received and output by the SSP 7.1.
Dolby Pro Logic II/IIx Music Settings
The Dolby Pro Logic II/IIx Music listening mode is used for
listening to any stereo music recordings. More information
about this listening mode
of the Reference material. These controls adjust global
settings for the listening mode, to tailor the sound to
individual listening tastes.
Dimension control
These buttons allow the user to choose Front, Neutral,
or Rear (the default is Neutral). See page 68 for more
information about
Panorama control
These buttons allow the user to switch the Panorama
settings On or Off (the default is Off). See page 68 for
more information about
Center Width control
This sliding bar adjusts the Center Width control in the range 0-7. When the control is set
to 0, the sound comes from the front center speaker. At 7, the sound comes from the front
right and left speakers. The default setting is 3 (bold and underlined). See page 68 for more
information about
Override Preferences, click the Dolby, DTS and Mono Settings tab.
Dolby, DTS and Mono Settings Tab
can be found on page 68
Dimension Control.
Panorama Control.
Center Width control.
SSP 7.1 • Setup and Control Software 49
