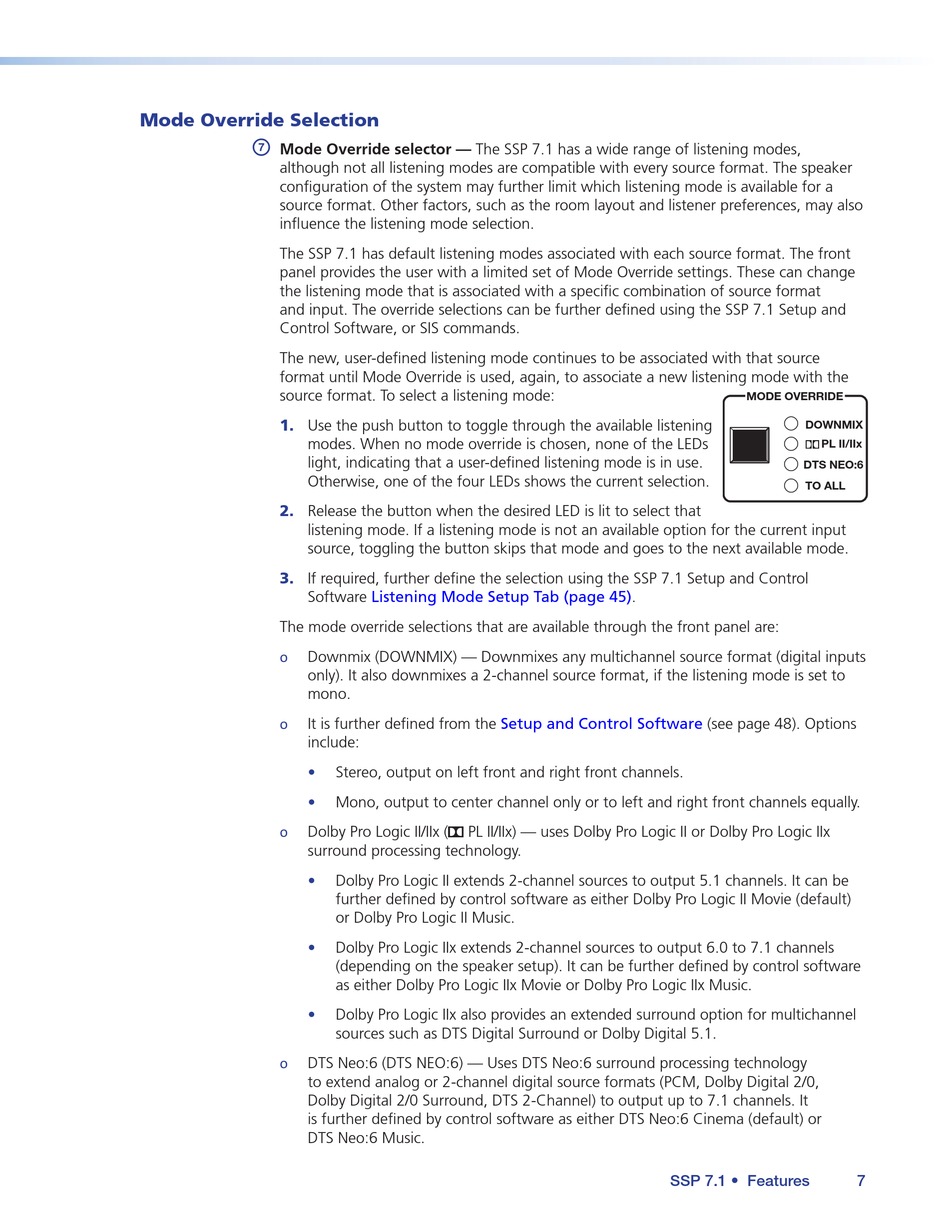

Mode Override Selection

g
Mode Override selector — The SSP 7.1 has a wide range of listening modes,
although not all listening modes are compatible with every source format. The speaker
configuration of the system may further limit which listening mode is available for a
source format. Other factors, such as the room layout and listener preferences, may also
influence the listening mode selection.
The SSP 7.1 has default listening modes associated with each source format. The front
panel provides the user with a limited set of Mode Override settings. These can change
the listening mode that is associated with a specific combination of source format
and input. The override selections can be further defined using the SSP 7.1 Setup and
Control Software, or SIS commands.
The new, user-defined listening mode continues to be associated with that source
format until Mode Override is used, again, to associate a new listening mode with the
source format. To select a listening mode:
1.
Use the push button to toggle through the available listening
modes. When no mode override is chosen, none of the LEDs
light, indicating that a user-defined listening mode is in use.
Otherwise, one of the four LEDs shows the current selection.
2. Release the button when the desired LED is lit to select that
listening mode. If a listening mode is not an available option for the current input
source, toggling the button skips that mode and goes to the next available mode.
3. If required, further define the selection using the SSP 7.1 Setup and Control
Software
The mode override selections that are available through the front panel are:
о Downmix (DOWNMIX) — Downmixes any multichannel source format (digital inputs
only). It also downmixes a 2-channel source format, if the listening mode is set to
mono.
о
It is further defined from the
include:
•
•
о
Dolby Pro Logic II/IIx (
surround processing technology.
•
•
•
о
DTS Neo:6 (DTS NEO:6) — Uses DTS Neo:6 surround processing technology
to extend analog or 2-channel digital source formats (PCM, Dolby Digital 2/0,
Dolby Digital 2/0 Surround, DTS 2-Channel) to output up to 7.1 channels. It
is further defined by control software as either DTS Neo:6 Cinema (default) or
DTS Neo:6 Music.
Listening Mode Setup Tab (page
Setup and Control Software
Stereo, output on left front and right front channels.
Mono, output to center channel only or to left and right front channels equally.
PL II/IIx) — uses Dolby Pro Logic II or Dolby Pro Logic IIx
Dolby Pro Logic II extends 2-channel sources to output 5.1 channels. It can be
further defined by control software as either Dolby Pro Logic II Movie (default)
or Dolby Pro Logic II Music.
Dolby Pro Logic IIx extends 2-channel sources to output 6.0 to 7.1 channels
(depending on the speaker setup). It can be further defined by control software
as either Dolby Pro Logic IIx Movie or Dolby Pro Logic IIx Music.
Dolby Pro Logic IIx also provides an extended surround option for multichannel
sources such as DTS Digital Surround or Dolby Digital 5.1.
MODE OVERRIDE
45).
(see page 48). Options
