Features

The next two sub-sections describe the features and operation of the SSP 7.1.
•
•

Rear Panel Features

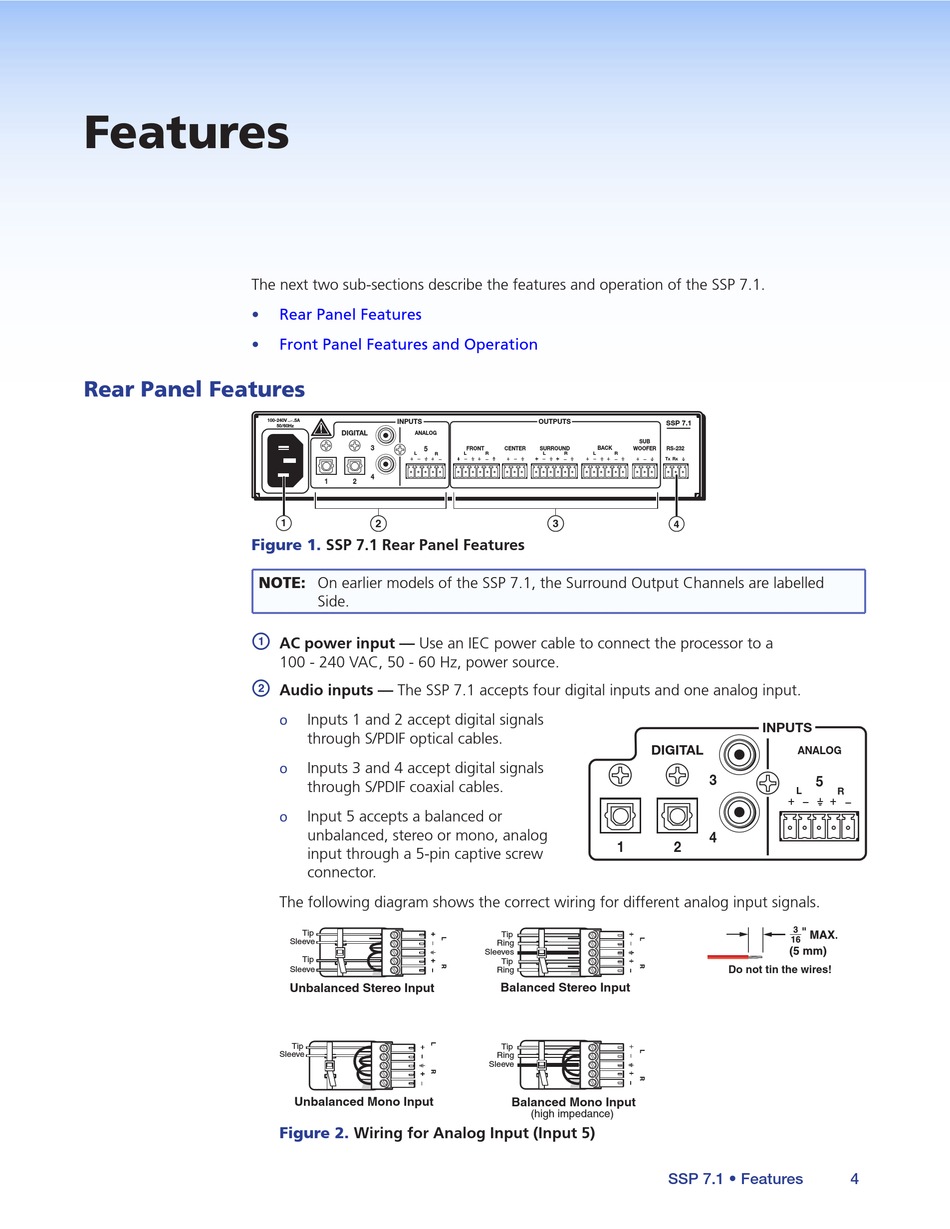

Figure 1.
NOTE: On earlier models of the SSP 7.1, the Surround Output Channels are labelled
a
b
Rear Panel Features
Front Panel Features and Operation
INPUTS
100-240V .5A
50/60Hz
DIGITAL ANALOG
3
5
L R
4
1 2
1
2
SSP 7.1 Rear Panel Features
Side.
AC power input — Use an IEC power cable to connect the processor to a
100 - 240 VAC, 50 - 60 Hz, power source.
Audio inputs — The SSP 7.1 accepts four digital inputs and one analog input.
о
Inputs 1 and 2 accept digital signals
through S/PDIF optical cables.
о Inputs 3 and 4 accept digital signals
through S/PDIF coaxial cables.
о
Input 5 accepts a balanced or
unbalanced, stereo or mono, analog
input through a 5-pin captive screw
connector.
The following diagram shows the correct wiring for different analog input signals.
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Tip
Sleeve
Unbalanced Mono Input
Figure 2. Wiring for Analog Input (Input 5)
OUTPUTS
SUB
CENTER BACK
FRONT SURROUND WOOFER
L R L R L R
3
1
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Tip
Ring
Sleeve
Balanced Mono Input
(high impedance)
SSP 7.1
RS-232
Tx Rx
4
INPUTS
DIGITAL
ANALOG
3
5
L
4
2
Do not tin the wires!
SSP 7.1 • Features
R
