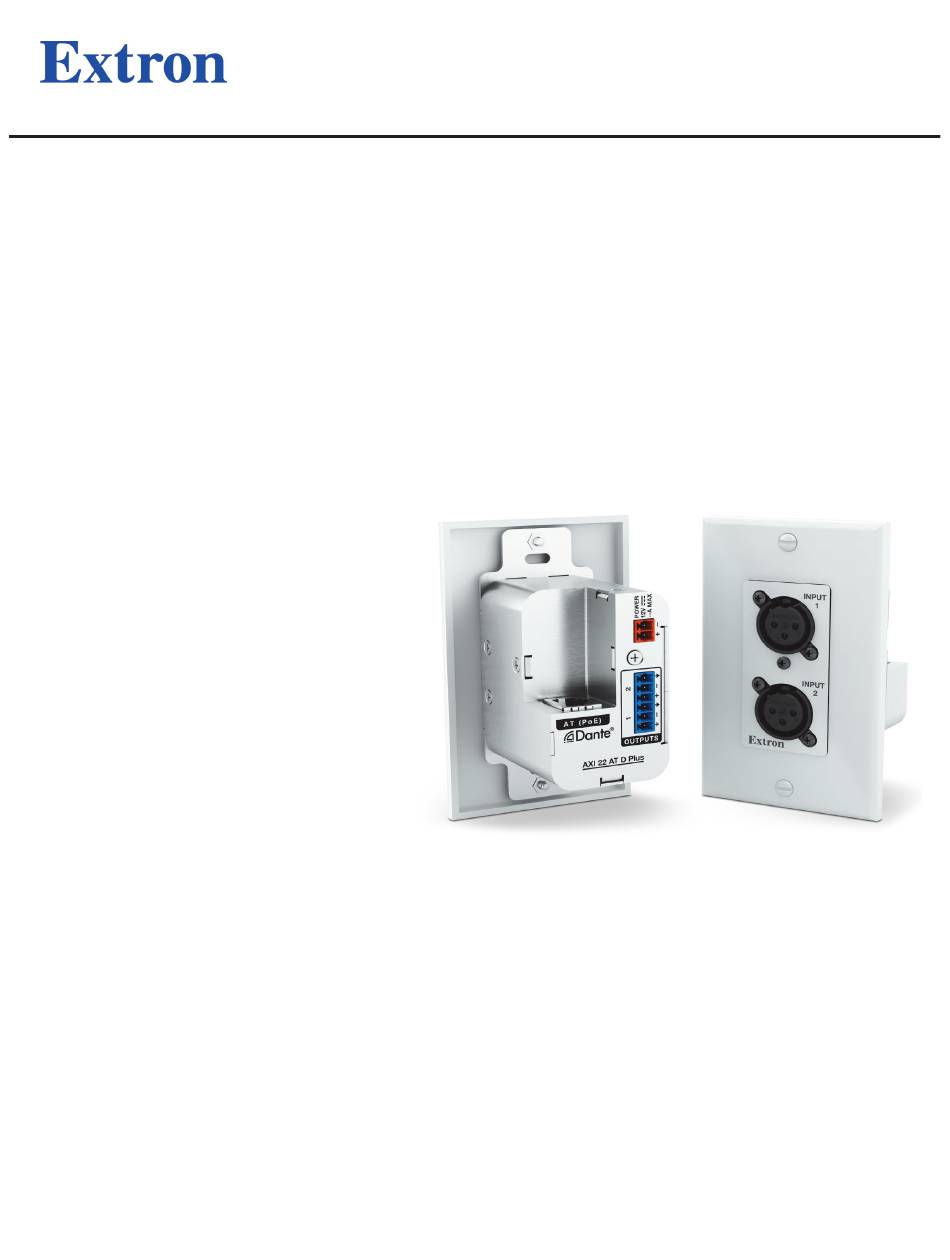

- Page 1 AXI 22 AT D Plus Audio Expansion Interface User Guide Audio Products Mixers and Processors 68-3532-01 Rev. A 10 24...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock. ATTENTION: This symbol, , when used on the product, is intended to alert the user of important operating and maintenance (servicing) - Page 3 Copyright © 2024 Extron. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ® ), registered service marks ( ), and trademarks ( ) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the page at www.extron.com): Terms of Use...
-
Page 4: Fcc Class A Notice
FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Software Commands
Conventions Used in this Guide Notifications The following notifications are used in this guide: WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: •... -
Page 7: Table Of Contents
Setting Phantom Power ...........................10 Dante Controller ............................11 Overview................................11 Downloading and Installing Dante Controller ....................11 Configuring the AXI 22 AT D Plus in Dante Controller ..................12 Device Name ..............................12 Receiver and Transmitter Names .........................12 Dante Controller Naming Conventions ......................12 Renaming the AXI 22 AT D Plus in Dante Controller..................12... - Page 8 Command and Response Table for DSP SIS Commands ................32 Object ID (OID) Number and Value Range Tables ..................33 Inputs and Outputs OIDs ..........................33 Inputs and Outputs Meter Levels .........................33 Mounting the AXI 22 AT D Plus ......................34 AXI 22 AT D Plus • Table of Contents...
-
Page 9: Introduction
+48 VDC phantom power for connecting and powering condenser microphones, plus gain controls for each input. The AXI 22 AT D Plus also features two line outputs on the back for routing any two Dante channels from the network to an amplifier, or connecting into an optional secondary wallplate with two XLR outputs. -
Page 10: Axi 22 At D Plus Application Diagrams
• Compatible with Extron WPD 100 Series wallplates — WPD 100 Series Decorator-Style wallplates can be connected to the line outputs of the AXI 22 AT D Plus, to provide a two-gang wall installation. • Dante Domain Manager and AES67 Support. - Page 11 LAN 1 CLIP CLIP Ethernet LAN 2 SIGNAL SIGNAL DMP 64 Plus DIGITAL MATRIX PROCESSOR Wallplate Extron DMP 64 Plus C V AT Digital Matrix Processor Figure 2. AXI 22 AT D Plus Application AXI 22 AT D Plus • Introduction...
-
Page 12: Installation And Operation
XLR ports. • Amber LEDs light when power is provided. The LED blinks while the AXI 22 AT D Plus is booting up and is off when boot-up is complete. It lights steadily if there is no network connection. - Page 13 Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. • Cette installation doit toujours être en accord avec les mesures qui s’applique au National Electrical Code ANSI/NFPA 70, article 725, et au Canadian Electrical Code, partie 1, section 16. AXI 22 AT D Plus • Installation and Operation...
- Page 14 An AXI 22 AT D Plus and WPD 102 XLRM can be set up as a two-gang wall installation with XLR audio inputs and XLR or RCA outputs. They also provide local wall, floor box, or furniture-mounted connectivity for any audio system.
- Page 15 +48 VDC power from the power supply to the AXI 22 AT D Plus. Connect the IEC power cord to a 100 VAC to 240 VAC, 50-60 Hz power source. Figure 8 shows the Extron XTP PI 115. Your power injector may look different.
- Page 16 ATTENTION: • The AXI 22 AT D Plus is intended for connection to a Power over Ethernet circuit for intra-building use only and are considered to be part of a Network Environment 0 per IEC TR62101. • Le AXI 22 AT D Plus est conçu pour une connexion à un circuit PoE pour une utilisation intérieure seulement et est considéré...
-
Page 17: Front Panel Features
IP address, channel names, and sample rates are reset to defaults. Gain values and phantom power settings are not affected. The AXI 22 AT D Plus has two reset modes. The reset modes only affect the Dante module and do not change settings such as gain, mute, and phantom power. -
Page 18: Setting Phantom Power
When a line level source is connected, be certain the +48 V phantom power is off (cleared). • Lorsqu’une source de niveau ligne est connectée, soyez certain que l’alimentation fantôme +48 V est débranchée (enlevée). AXI 22 AT D Plus • Installation and Operation... -
Page 19: Dante Controller
Up to 2 mono channels can be transmitted from the AXI 22 AT D Plus to the Dante network and up to 2 mono channels can be received by the AXI 22 AT D Plus from the Dante network. -
Page 20: Configuring The Axi 22 At D Plus In Dante Controller
Configuring the AXI 22 AT D Plus in Dante Controller Use a standard T-568B CAT5/6 Ethernet cable to connect the AXI 22 AT D Plus to a Dante network via the rear panel AT port (see figure on page 4) and power the device. - Page 21 Figure 11. Device View and Select a Dante Device Drop-Down NOTE: If there are multiple AXI 22 AT D Plus devices connected to the network that have not been renamed, obtain the Dante interface media access code (MAC) address of the desired device from the white label on the rear panel of the device in order to identify it in Dante Controller.
-
Page 22: Renaming A Receiver Or Transmitter
) to confirm the new name, then close the Device Configuration dialog box. The new name is written to the Dante interface of the AXI 22 AT D Plus. Repeat as necessary for all devices. Figure 14. Rename Device Confirmation Dialog Box Renaming a Receiver or Transmitter In addition to renaming devices, individual receiver and transmitter channels can be renamed in Dante Controller. -
Page 23: Finding A Dante Device Ip Address
1. Open Dante Controller. 2. On the Dante Controller‑Network View screen, click the Device Info tab (see figure 17, 3. On the Device Info page, locate the name of the AXI 22 AT D Plus in the Device Name column ( ). The IP address is located in the Primary Address column ( AXI 22 AT D Plus •... -
Page 24: Dante Controller Operation
Routing Devices After the AXI 22 AT D Plus is configured, the channels can be routed to the other Dante devices on the audio network. Channels transmitted to the network or received from the network are routed using the Dante Controller... -
Page 25: Disconnecting Inputs From Outputs
Creating Subscriptions Between Devices 1. Ensure the control computer and AXI 22 AT D Plus are connected to the same network. 2. From the start menu select: All Programs > Audinate > Dante Controller > Dante Controller The Dante Controller ‑ Network View screen opens (see figure 18). -
Page 26: Simplifying The Network For Troubleshooting
If further troubleshooting of Dante Controller is necessary, begin by simplifying the network: 1. Bypass network switches by connecting two Dante-compatible units, such as a DMP Plus AT and an AXI 22 AT D Plus, via their AT ports. 2. Connect the PC to an unused AT port with an Ethernet cable. -
Page 27: Restarting Dante Controller
Click the Help icon in the upper-right corner of the Network View screen (see figure 21, • Select Help, then Online Help from the list ( • Press the <F1> key on the computer keyboard for online help or <Shift+F1> for offline help. AXI 22 AT D Plus • Dante Controller... -
Page 28: Dsp Configurator Software
Extron DSP Configurator Software is the main user interface for control and management of the Extron AXI 22 AT D Plus and all of its audio functions. This section describes the Extron DSP Configurator software and covers the following topics: •... -
Page 29: Connecting To Dsp Configurator
For details about specific software features and device configurations, refer to the DSP Configurator Help File. The DSP Configurator main workspace contains various functions to configure the AXI 22 AT D Plus (see figure 25). Use the expand and collapse buttons ( ) next to the input and output group names to show or hide input and output groups and their corresponding mix matrices. -
Page 30: Menu Bar
Device Manager (see on page 23). • Backup — Recalls and transfers all partial presets of a AXI 22 AT D Plus to the configuration file or template file within DSP Configurator. NOTES: • Configuration files have an .EDC file extension and template files have an .EDCT file extension. -
Page 31: Tools
Live mode. Presets with an asterisk next to them are on the AXI 22 AT D Plus, but not in the current configuration file. Run a preset to load it into the configuration file. -
Page 32: Dsp Configurator Status Panel
Live Mode Enter Live mode to connect to a AXI 22 AT D Plus and push or pull configurations between the device and host PC. In Live mode, changes made in DSP Configurator are directly applied to the device. Additionally, presets and macros can be created and stored on the device. - Page 33 While in Emulate mode, DSP Configurator is functioning in an “offline” state. Changes made to the configuration file are not applied to a AXI 22 AT D Plus. In Emulate mode, the user can create and configure the software as though a device was connected, except for any actions that require direct connection to the device or information that is stored only on the device.
-
Page 34: Sis Configuration And Control
Command and Response Table for DSP SIS Commands Connection Options The AXI 22 AT D Plus can be remotely connected via a host computer or other device (such as a control system) attached to the AT port or the USB Config port. -
Page 35: Usb Config Port
USB Config Port The AXI 22 AT D Plus has a USB-C configuration port that can be connected to a computer as a host device running the DataViewer utility for control of the device. Once a connection is established, SIS programming can begin (see Host-to-Device Communications). -
Page 36: Using The Command And Response Tables
The AXI 22 AT D Plus rejects the following characters: {space (OK for names)} + ~ , @ = ‘ { } [ ] < > ` “ ; : \ ? -
Page 37: Error Responses
Error Responses When the AXI 22 AT D Plus is unable to execute the command, it returns an error response to the host. The error response codes and their descriptions are as follows: — Unrecognized command — Invalid preset number —... -
Page 38: Command And Response Table For Sis Commands
Set verbose mode EX2@ X2@] X2@] View verbose mode KEY: = Verbose mode = Clear/none (default) = Verbose mode = Tagged response for queries = Verbose mode and tagged responses for queries AXI 22 AT D Plus • SIS Configuration and Control... - Page 39 , and hyphen (-). Names must begin with a letter and cannot end with a hyphen (-) = MAC address xx-xx-xx-xx-xx-xx = DHCP status = Enabled/on (default) = Disabled/off Resets System Reset (Factory Default) ZXXX AXI 22 AT D Plus • SIS Configuration and Control...
-
Page 40: Dsp Sis Commands
Object ID (OID) Number and Value Range Tables for Input and output gain value numbers. Object ID (OID) Number and Value Range Tables Meter value for meter levels. Status = Disabled/off (default) = Enabled/on AXI 22 AT D Plus • SIS Configuration and Control... -
Page 41: Object Id (Oid) Number And Value Range Tables
Output Attenuation Block Meter Level Range Mic/Line Input 1 -150.0 to 0.0 Output 1 -150.0 to 0.0 40000 60000 Mic/Line Input 2 -150.0 to 0.0 Output 2 -150.0 to 0.0 40001 60001 AXI 22 AT D Plus • SIS Configuration and Control... -
Page 42: Mounting The Axi 22 At D Plus
Cabling on page 4). 3. Install the AXI 22 AT D Plus into the wall box or mud ring and attach the wall plate. Do not attach the faceplate (cover plate) at this time. 4. If not using PoE, connect AC power to the external power supply. -
Page 43: Extron Warranty
Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
