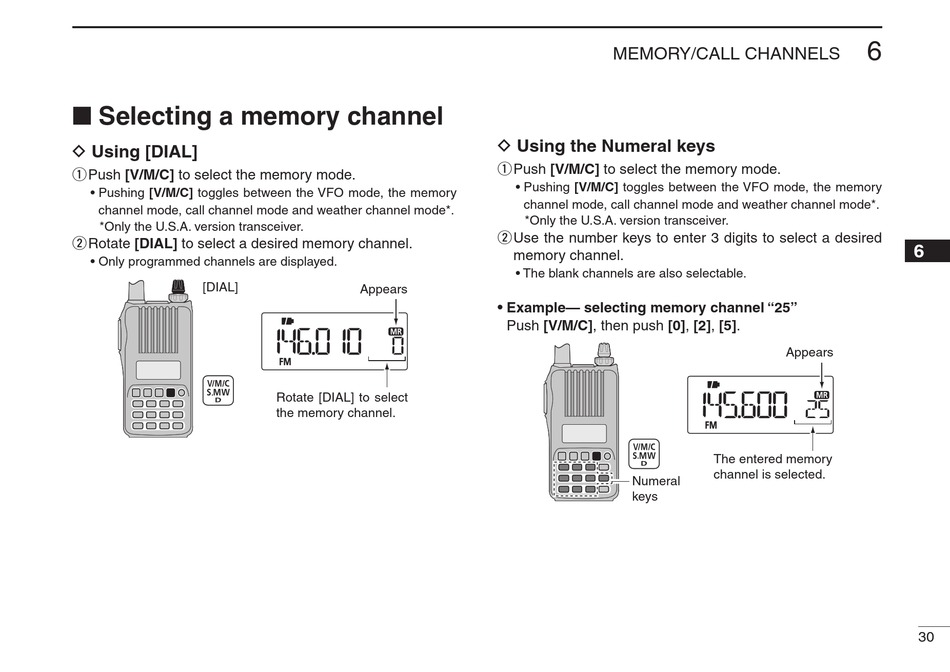

■ Selecting a memory channel
D Using [DIAL]
q Push [V/M/C] to select the memory mode.
• Pushing [V/M/C] toggles between the VFO mode, the memory
channel mode, call channel mode and weather channel mode*.
* Only the U.S.A. version transceiver.
w Rotate [DIAL] to select a desired memory channel.
• Only programmed channels are displayed.
[DIAL]
Appears
Rotate [DIAL] to select
the memory channel.
MEMORY/CALL CHANNELS
D Using the Numeral keys
q Push [V/M/C] to select the memory mode.
• Pushing [V/M/C] toggles between the VFO mode, the memory
channel mode, call channel mode and weather channel mode*.
* Only the U.S.A. version transceiver.
w Use the number keys to enter 3 digits to select a desired
memory channel.
• The blank channels are also selectable.
• Example— selecting memory channel "25"
Push [V/M/C], then push [0], [2], [5].
Numeral
keys
6
Appears
The entered memory
channel is selected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
30
