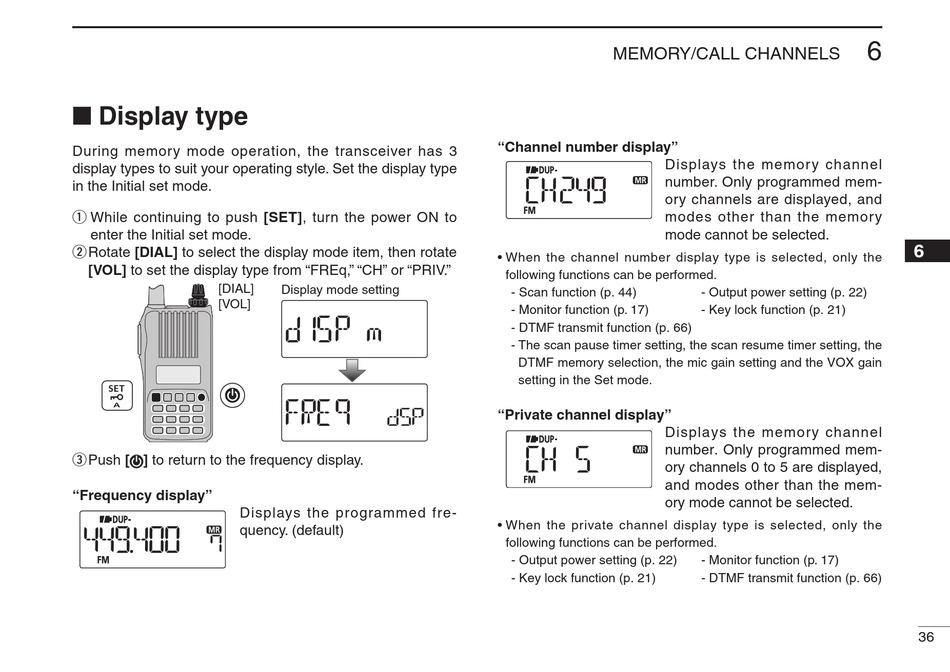

■ Display type
During memory mode operation, the transceiver has 3
display types to suit your operating style. Set the display type
in the Initial set mode.
q While continuing to push [SET], turn the power ON to
enter the Initial set mode.
w Rotate [DIAL] to select the display mode item, then rotate
[VOL] to set the display type from "FREq," "CH" or "PRIV."
[DIAL]
[VOL]
e Push [ ] to return to the frequency display.
"Frequency display"
Displays the programmed fre-
quency. (default)
Display mode setting
MEMORY/CALL CHANNELS
"Channel number display"
Displays the memor y channel
number. Only programmed mem-
ory channels are displayed, and
modes other than the memory
mode cannot be selected.
• When the channel number display type is selected, only the
following functions can be performed.
- Scan function (p. 44)
- Monitor function (p. 17)
- DTMF transmit function (p. 66)
- The scan pause timer setting, the scan resume timer setting, the
DTMF memory selection, the mic gain setting and the VOX gain
setting in the Set mode.
"Private channel display"
Displays the memory channel
number. Only programmed mem-
ory channels 0 to 5 are displayed,
and modes other than the mem-
ory mode cannot be selected.
• When the private channel display type is selected, only the
following functions can be performed.
- Output power setting (p. 22)
- Key lock function (p. 21)
6
- Output power setting (p. 22)
- Key lock function (p. 21)
- Monitor function (p. 17)
- DTMF transmit function (p. 66)
