2

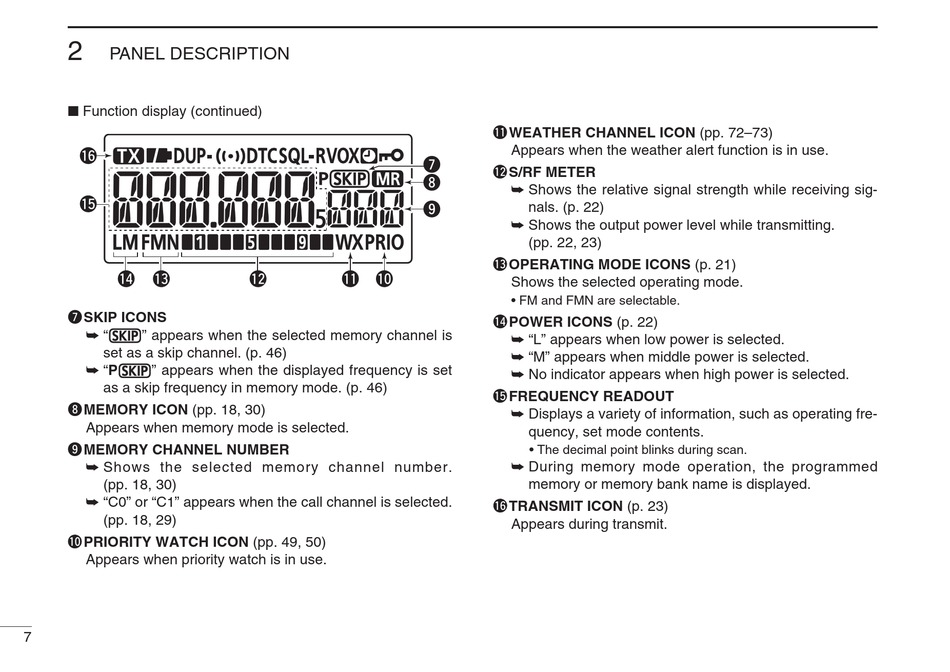

PANEL DESCRIPTION
■ Function display (continued)
!6
!5
!4 !3
u SKIP ICONS
➥ " " appears when the selected memory channel is
set as a skip channel. (p. 46)
➥ "P " appears when the displayed frequency is set
as a skip frequency in memory mode. (p. 46)
i MEMORY ICON (pp. 18, 30)
Appears when memory mode is selected.
o MEMORY CHANNEL NUMBER
➥ Shows the selected memory channel number.
(pp. 18, 30)
➥ "C0" or "C1" appears when the call channel is selected.
(pp. 18, 29)
!0 PRIORITY WATCH ICON (pp. 49, 50)
Appears when priority watch is in use.
7
u
i
o
!2 !1 !0
!1 WEATHER CHANNEL ICON (pp. 72–73)
Appears when the weather alert function is in use.
!2 S/RF METER
➥ Shows the relative signal strength while receiving sig-
nals. (p. 22)
➥ Shows the output power level while transmitting.
(pp. 22, 23)
!3 OPERATING MODE ICONS (p. 21)
Shows the selected operating mode.
• FM and FMN are selectable.
!4 POWER ICONS (p. 22)
➥ " L" appears when low power is selected.
➥ " M" appears when middle power is selected.
➥ No indicator appears when high power is selected.
!5 FREQUENCY READOUT
➥ Displays a variety of information, such as operating fre-
quency, set mode contents.
• The decimal point blinks during scan.
➥ During memory mode operation, the programmed
memory or memory bank name is displayed.
!6 TRANSMIT ICON (p. 23)
Appears during transmit.
