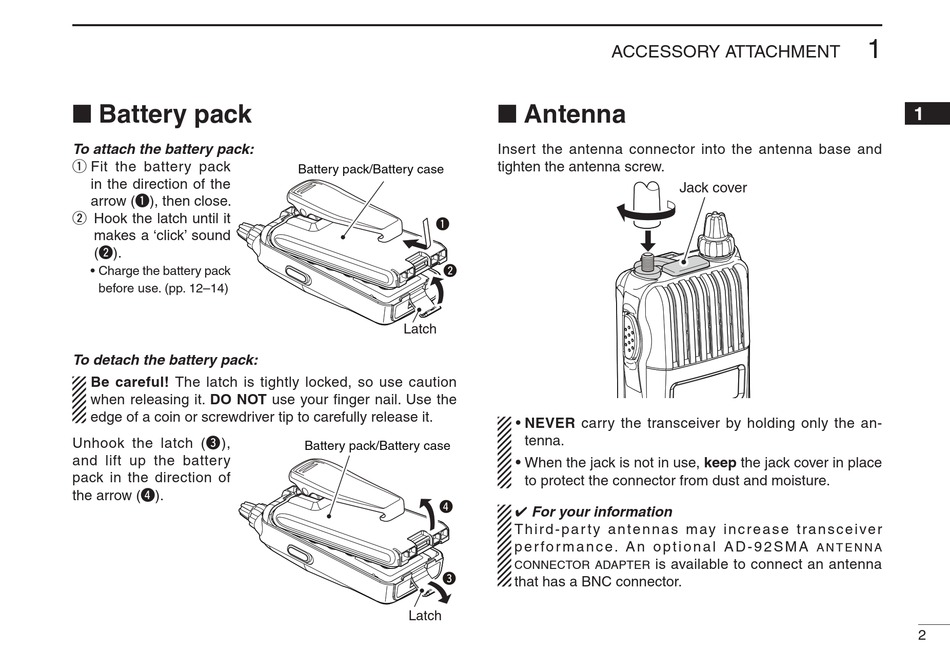

■ Battery pack

To attach the battery pack:
q Fit the battery pack
in the direction of the
arrow (q), then close.
w Hook the latch until it
makes a 'click' sound
(w).
• Charge the battery pack
before use. (pp. 12–14)
To detach the battery pack:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your finger nail. Use the
edge of a coin or screwdriver tip to carefully release it.
Unhook the latch (e),
and lift up the battery
pack in the direction of
the arrow (r).
Battery pack/Battery case
q
w
Latch
Battery pack/Battery case
r
e
Latch
ACCESSORY ATTACHMENT

■ Antenna

Insert the antenna connector into the antenna base and
tighten the antenna screw.
• NEVER carry the transceiver by holding only the an-
tenna.
• When the jack is not in use, keep the jack cover in place
to protect the connector from dust and moisture.
✔ For your information
T h i r d - p a r t y a n t e n n a s m ay i n c r e a s e t r a n s c e i ve r
p e r fo r m a n c e . A n o p t i o n a l A D - 9 2 S M A
is available to connect an antenna
connector adapter
that has a BNC connector.
Jack cover
a n t e n n a
