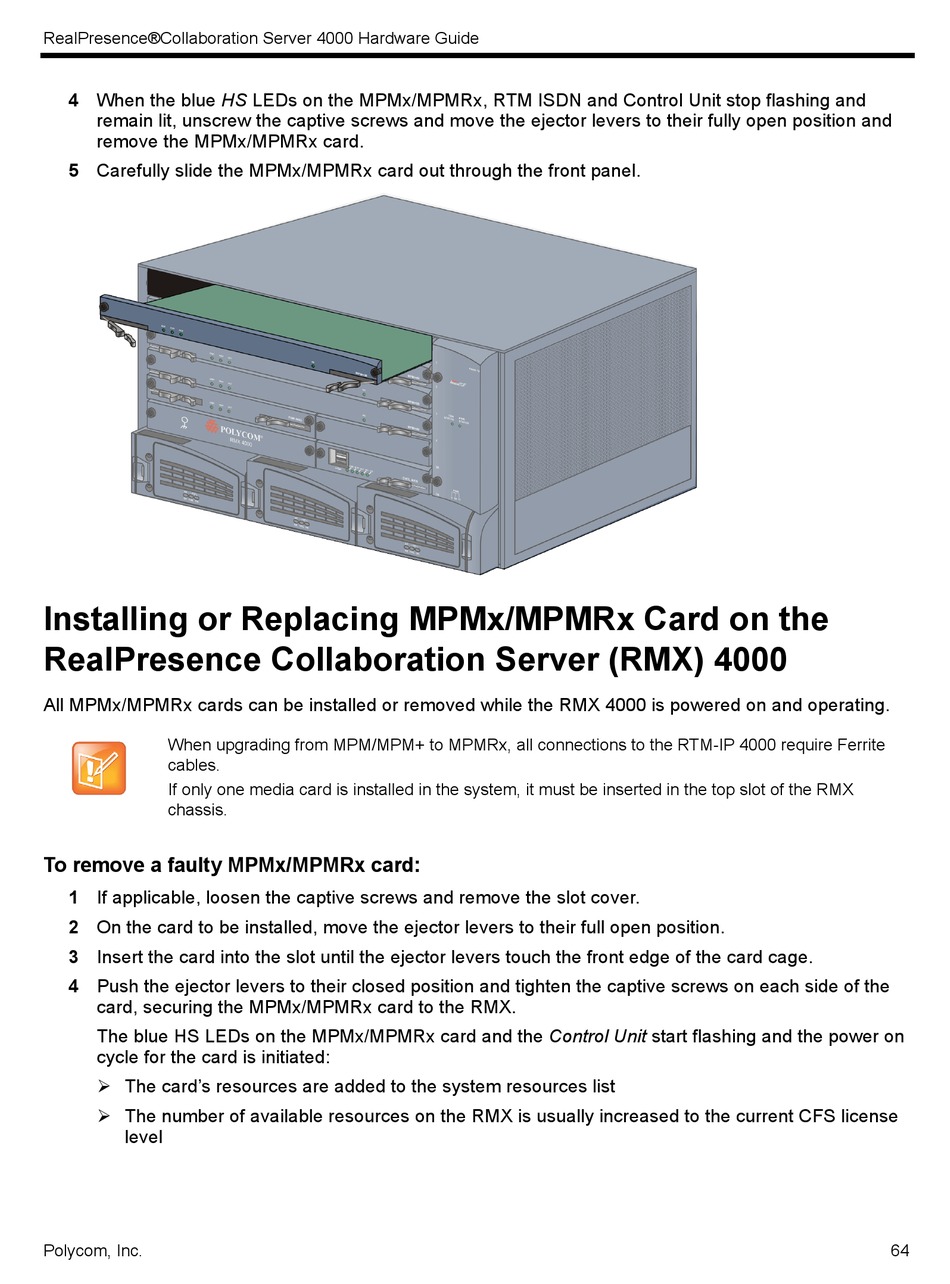

RealPresence®Collaboration Server 4000 Hardware Guide
4 When the blue HS LEDs on the MPMx/MPMRx, RTM ISDN and Control Unit stop flashing and
remain lit, unscrew the captive screws and move the ejector levers to their fully open position and
remove the MPMx/MPMRx card.
5 Carefully slide the MPMx/MPMRx card out through the front panel.
Installing or Replacing MPMx/MPMRx Card on the
RealPresence Collaboration Server (RMX) 4000
All MPMx/MPMRx cards can be installed or removed while the RMX 4000 is powered on and operating.
When upgrading from MPM/MPM+ to MPMRx, all connections to the RTM-IP 4000 require Ferrite
cables.
If only one media card is installed in the system, it must be inserted in the top slot of the RMX
chassis.
To remove a faulty MPMx/MPMRx card:
1 If applicable, loosen the captive screws and remove the slot cover.
2 On the card to be installed, move the ejector levers to their full open position.
3 Insert the card into the slot until the ejector levers touch the front edge of the card cage.
4 Push the ejector levers to their closed position and tighten the captive screws on each side of the
card, securing the MPMx/MPMRx card to the RMX.
The blue HS LEDs on the MPMx/MPMRx card and the Control Unit start flashing and the power on
cycle for the card is initiated:
 The card's resources are added to the system resources list
 The number of available resources on the RMX is usually increased to the current CFS license
level
