RealPresence®Collaboration Server 4000 Hardware Guide
On the RMX4000 the center hole on the Rack Spacer must be left clear as it is required for fixing the
RMX to the rack post.
3 Adjust the telescopic rack rail runner to the rack opening and mount it onto the marked position of
the rear post as described in step 2.

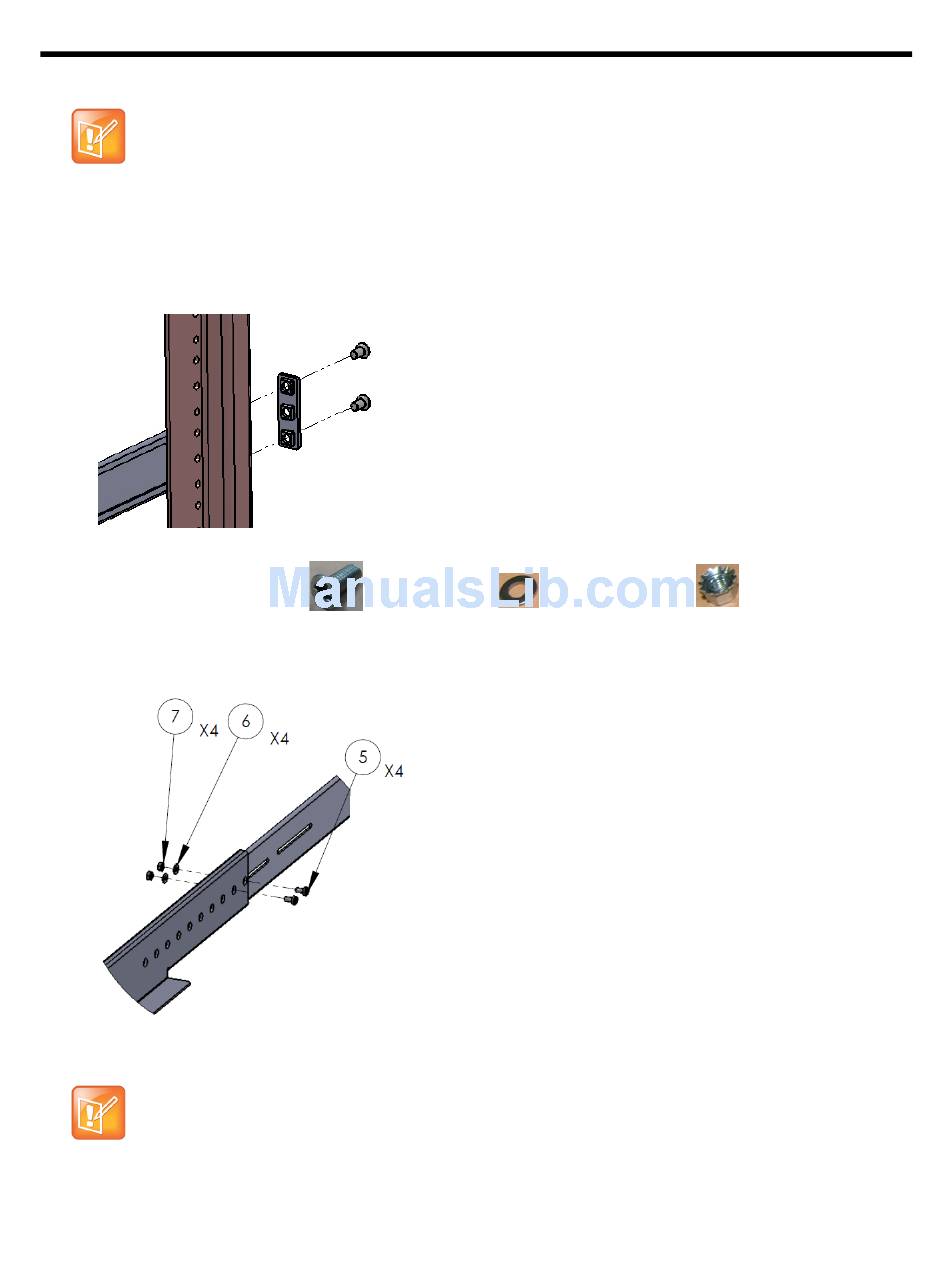

Detail of Rear RMX 4000 Rack Spacer Assembly
4 Repeat steps 2 and 3 for the right rack rail runner.
5 Install the flat head screw
the telescopic rack rail runner for added stability as shown in the figure below.
Detail of Left Raid Runner (front internal view)
The number of screws to install depends on the rack width.
6 Repeat step 2 for the right rack rail runner.
Polycom, Inc.
(5), flat washer (6) and nut spring (7) in the middle of
27
