RealPresence®Collaboration Server 4000 Hardware Guide

Mounting the RealPresence Collaboration Server (RMX) 4000 in a 23" Rack

1 Mounting the RMX 4000 on a 23" rack requires that first the handles and then the 19" brackets be
removed from the MCU, as shown in the figure below.
.

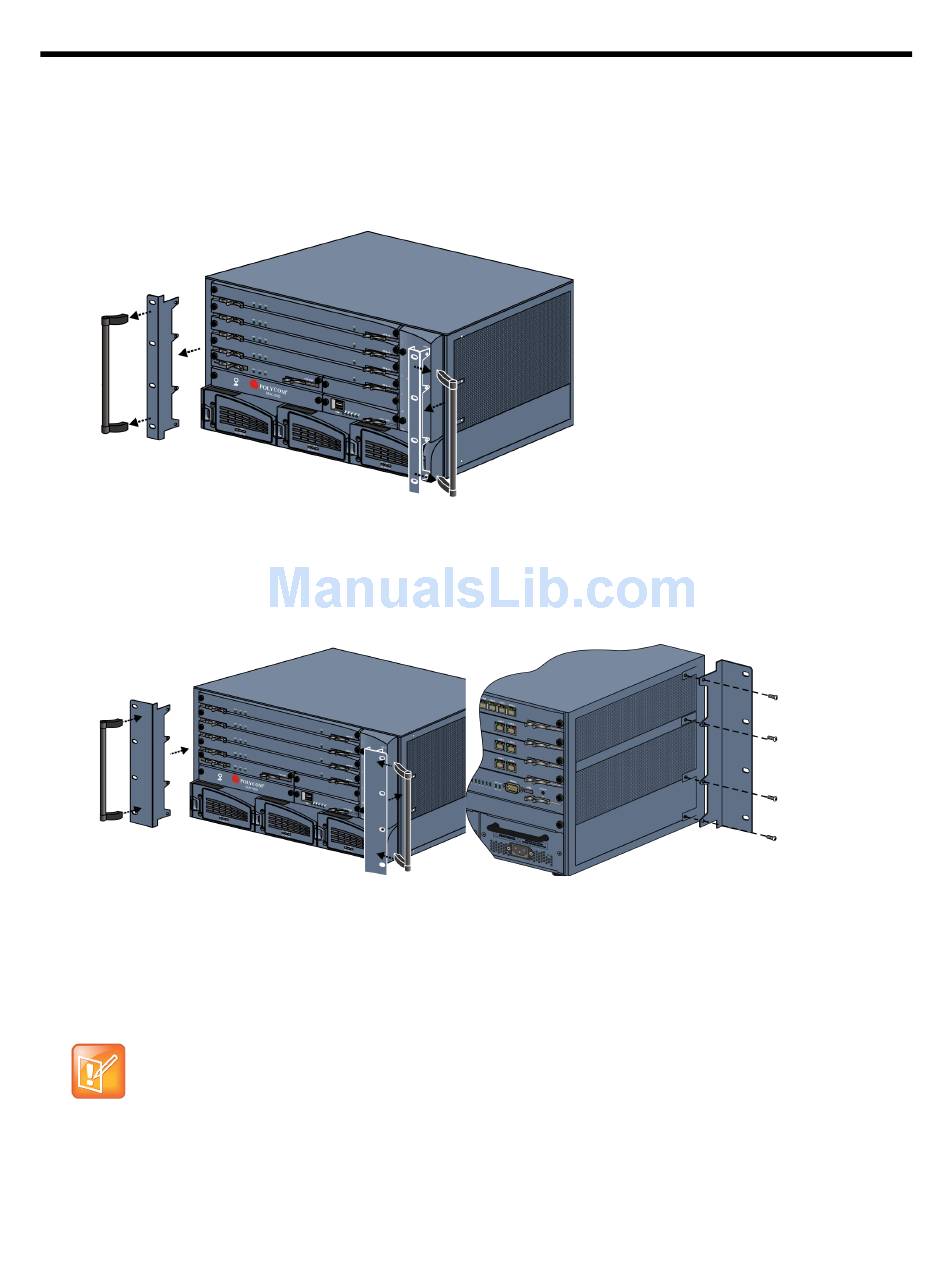

Removing and attaching 19" and 23" brackets
2 After removal, attach the 23" brackets as provided in the Rack Installation Accessories kit, and
re-install the handles to the 23" brackets, as shown in the figure below.
Installing the handles and brackets & detailed rear view of 23" bracket attachment
n
3 Mount the RMX on top of the rack brackets using the blades or place it on a rack mount shelf with
chassis runners.
4 Fasten the RMX to the rack with 8 screws into the holes provided on the RMX's front as shown in
figure above.
.
Rack mounting screws must be supplied by the rack's manufacturer.
The airflow of the RMX 4000 is from right to left. Be sure that the areas on the left and right side of
the system are clear for proper ventilation.
Polycom, Inc. 31
