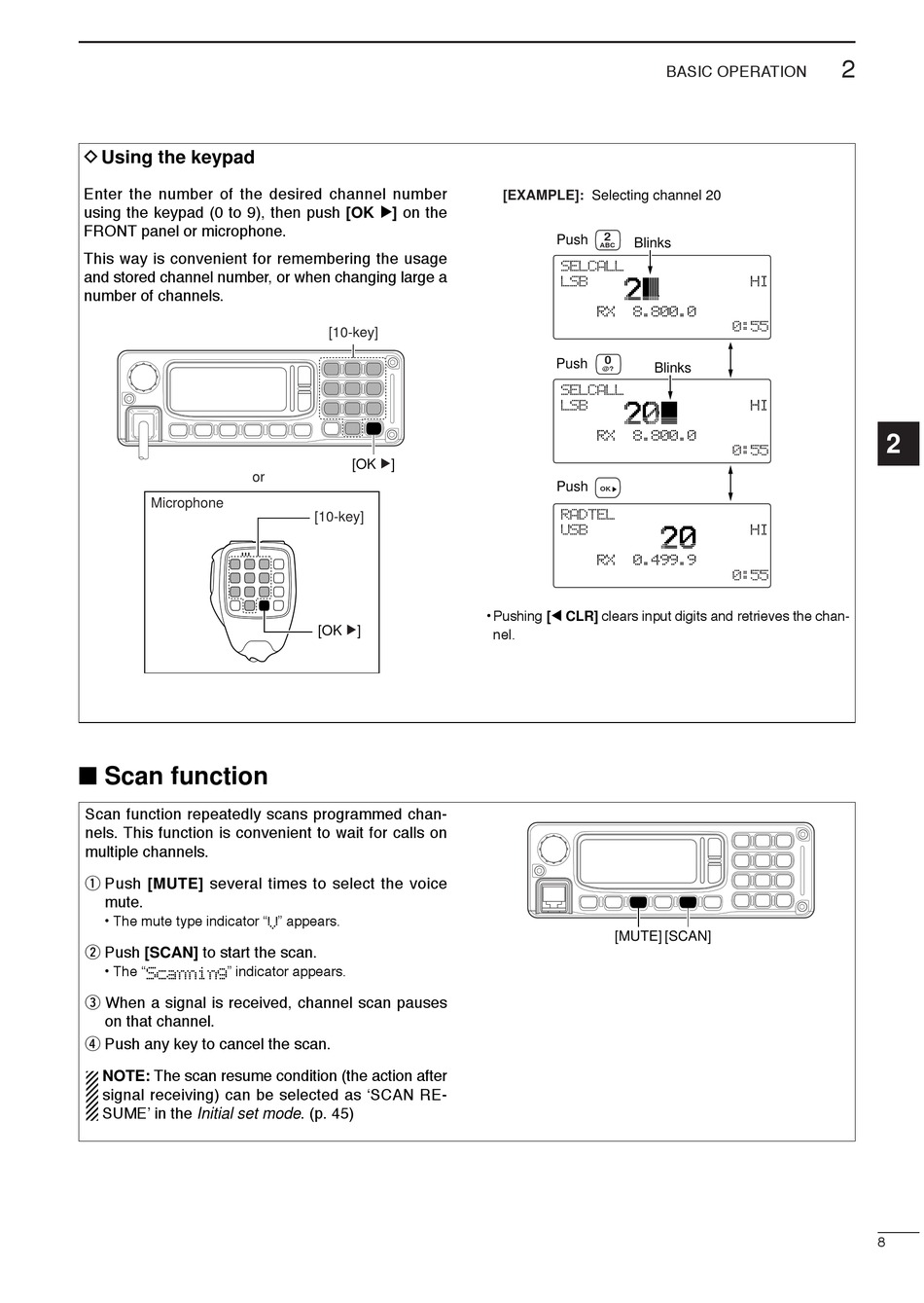

D Using the keypad

Enter the number of the desired channel number
using the keypad (0 to 9), then push [OK ≈ ≈ ] on the
FRONT panel or microphone.
This way is convenient for remembering the usage
and stored channel number, or when changing large a
number of channels.
or
Microphone

■ Scan function

Scan function repeatedly scans programmed chan-
nels. This function is convenient to wait for calls on
multiple channels.
q Push [MUTE] several times to select the voice
mute.
• The mute type indicator "V" appears.
w Push [SCAN] to start the scan.
• The "Scanning" indicator appears.
e When a signal is received, channel scan pauses
on that channel.
r Push any key to cancel the scan.
NOTE: The scan resume condition (the action after
signal receiving) can be selected as 'SCAN RE-
SUME' in the Initial set mode. (p. 45)
[10-key]
[OK ≈ ]
[10-key]
• Pushing [Ω Ω CLR] clears input digits and retrieves the chan-
[OK ≈ ]
BASIC OPERATION
[EXAMPLE]: Selecting channel 20
2
Push
Blinks
ABC
SELCALL
LSB
RX 8.800.0
0
Push
Blinks
@?
SELCALL
LSB
RX 8.800.0
Push
OK
RADTEL
USB
RX 0.499.9
nel.
[MUTE] [SCAN]
2
HI
--0:55
HI
2
--0:55
HI
--0:55
8
