RECEIVE AND TRANSMIT

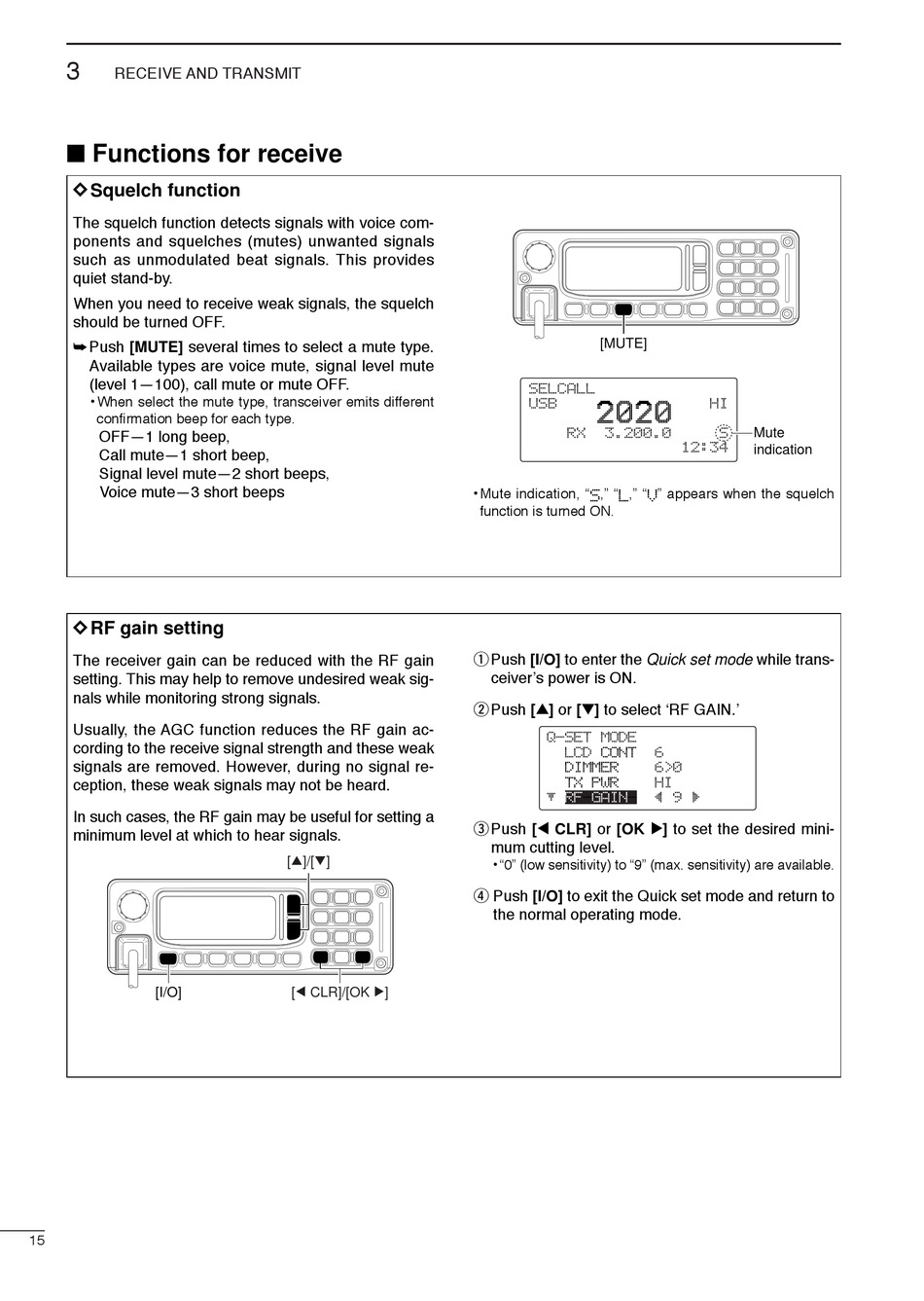

■ Functions for receive

D D Squelch function
The squelch function detects signals with voice com-
ponents and squelches (mutes) unwanted signals
such as unmodulated beat signals. This provides
quiet stand-by.
When you need to receive weak signals, the squelch
should be turned OFF.
➥ Push [MUTE] several times to select a mute type.
Available types are voice mute, signal level mute
(level 1—100), call mute or mute OFF.
• When select the mute type, transceiver emits different
confirmation beep for each type.
OFF—1 long beep,
Call mute—1 short beep,
Signal level mute—2 short beeps,
Voice mute—3 short beeps
D D RF gain setting
The receiver gain can be reduced with the RF gain
setting. This may help to remove undesired weak sig-
nals while monitoring strong signals.
Usually, the AGC function reduces the RF gain ac-
cording to the receive signal strength and these weak
signals are removed. However, during no signal re-
ception, these weak signals may not be heard.
In such cases, the RF gain may be useful for setting a
minimum level at which to hear signals.
[I/O]
15
[∫]/[√]
[Ω CLR]/[OK ≈]
[MUTE]
SELCALL
USB-A
RX--3.200.0
• Mute indication, "S," "L," "V" appears when the squelch
function is turned ON.
q Push [I/O] to enter the Quick set mode while trans-
ceiver's power is ON.
w Push [∫ ∫ ] or [√ √ ] to select 'RF GAIN.'
Q-SET-MODE
--LCD-CONT--6
--DIMMER----6>0
--TX-PWR----HI
è-RF-GAIN---ç-9-å
e Push [Ω Ω CLR] or [OK ≈ ≈ ] to set the desired mini-
mum cutting level.
• "0" (low sensitivity) to "9" (max. sensitivity) are available.
r Push [I/O] to exit the Quick set mode and return to
the normal operating mode.
HI
S Mute
12:34
indication
