CONNECTION AND INSTALLATION

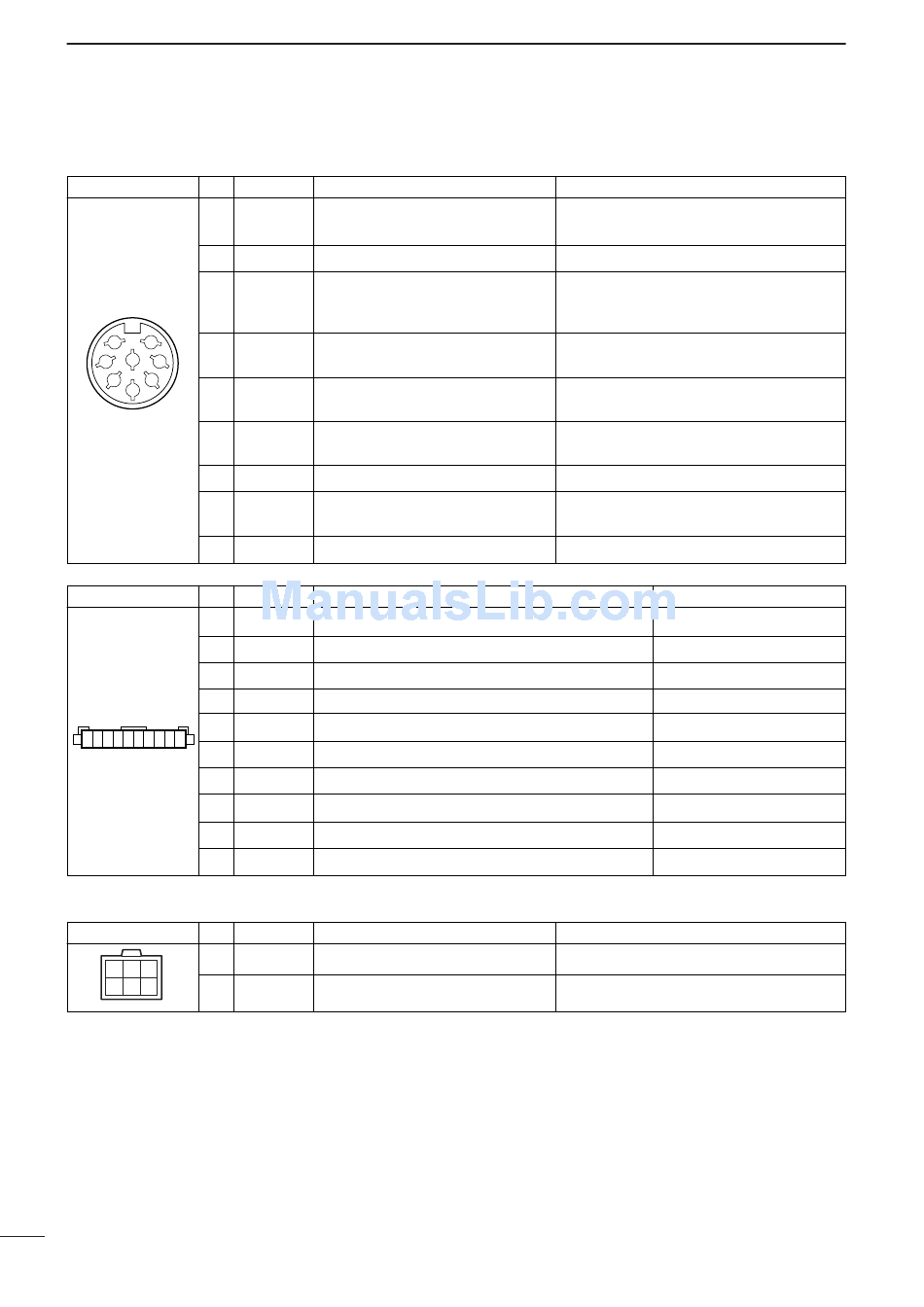

■ Connector information

ACC
*
7 6
8
3 1
5 4
2
TUNER
1 2 3 4 5 6 7 8 9 10
DC 13.8V
1 2 3
4 5 6
61
Pin Pin name
1 CWK CW and FSK keying input.
(NC) (NC: AUS version)
2 AF GND Ground line for AF signal.
3 SEND Input/output pin.
Goes to ground when transmitting.
When grounded, transmits.
4 MOD Modulator input.
Usable when pin 3 is grounded.
5 AF AF detector output.
Fixed, regardless of [VOL] position.
6 SQLS Squelch output
Goes to ground when squelch opens. Squelch closed
7 13.8 V 13.8 V output when power is ON.
8 ALC ALC voltage input.
* DC GND Common ground.
Pin Pin name
1 E Negative terminal
2 13.8V 13.8 V output
3 TUM4 Stepping motor control signal output for AT230.
4 TUM2 Stepping motor control signal output for AT230.
5 TUM1 Stepping motor control signal output for AT230.
6 TURS Band control signal output for AT230.
7 TSCS Preamp control signal output while scanning.
8 TUM3 Stepping motor control signal output for AT230.
9 START Start/through signal output
10 KEY Key signal input.
Pin Pin name
+ DC input +.
1–3
_ DC input _.
4–6
Description
Input level
Ground level
Input current
Input impedance : 5 kΩ
Input level
Output impedance: 4.7 kΩ
Output level
Squelch open
Output current
Control voltage
Input impedance : More than 10 kΩ
Description
Description
Max. power consumption 23 A typical.
Specification
: Less than 0.6 V for transmit
: –0.5 to 0.8 V
: Less than 20 mA
: Approx. 100 mV rms
: 100–300 mV rms
: Less than 0.3 V/5 mA
: More than 6.0 V/100 µA
: max. 1 A
: –3 to 0 V
Specification
–0.5 to 0.8 V during tuning
Specification
