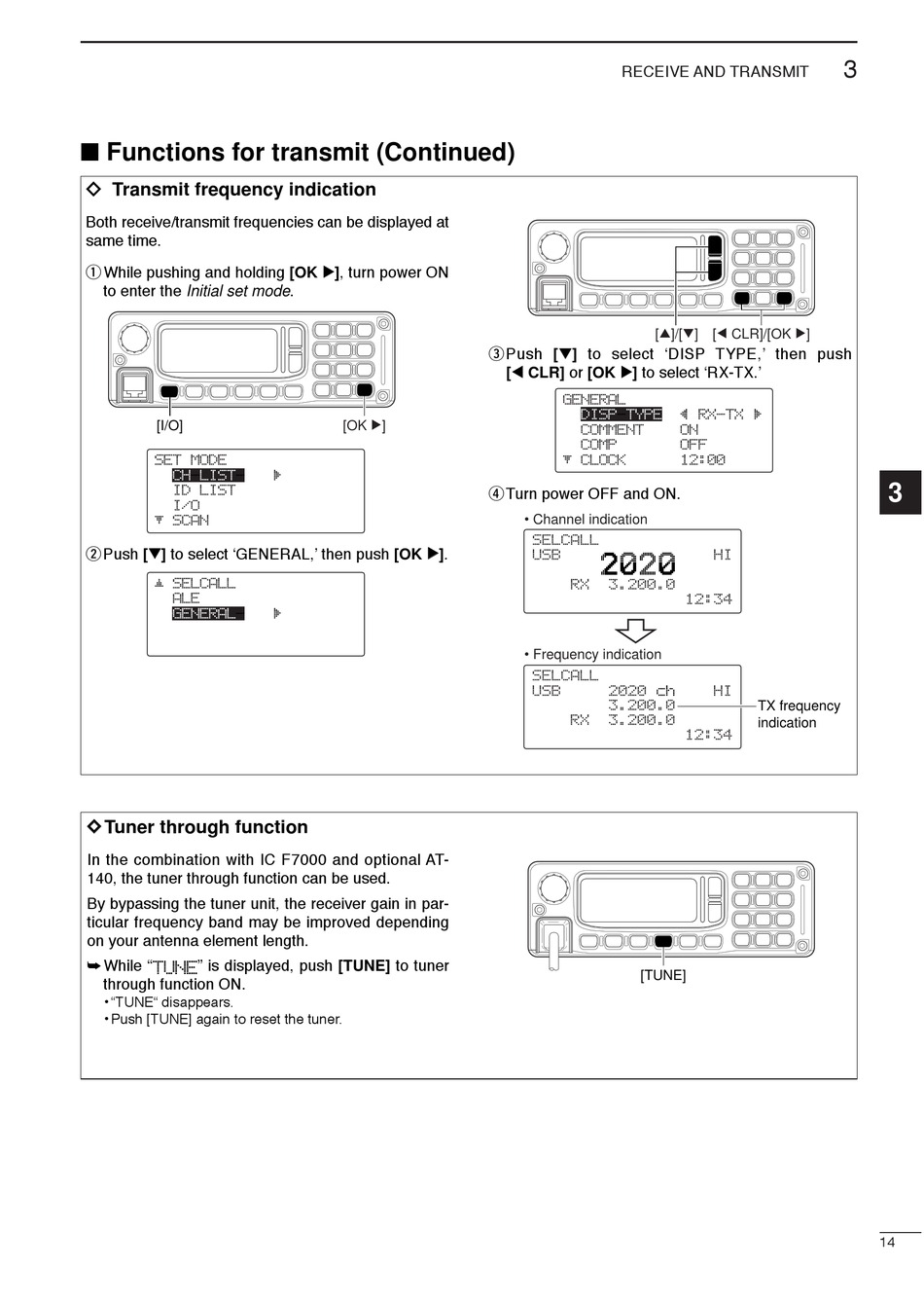

■ Functions for transmit (Continued)
ï Transmit frequency indication
Both receive/transmit frequencies can be displayed at
same time.
q While pushing and holding [OK ≈ ≈ ], turn power ON
to enter the Initial set mode.
[I/O]
SET-MODE
--CH-LIST----å
--ID-LIST----
--I/O--------
è-SCAN-------
w Push [√ √ ] to select 'GENERAL,' then push [OK ≈ ≈ ].
é-SELCALL----
--ALE--------
--GENERAL----å
--I/O--------
è-SCAN-------
D D Tuner through function
In the combination with IC F7000 and optional AT-
140, the tuner through function can be used.
By bypassing the tuner unit, the receiver gain in par-
ticular frequency band may be improved depending
on your antenna element length.
➥ While "TUNE" is displayed, push [TUNE] to tuner
through function ON.
• "TUNE" disappears.
• Push [TUNE] again to reset the tuner.
e Push [√ √ ] to select 'DISP TYPE,' then push
[Ω Ω CLR] or [OK ≈ ≈ ] to select 'RX-TX.'
[OK ≈]
r Turn power OFF and ON.
RECEIVE AND TRANSMIT
[∫]/[√]
GENERAL----
--DISP-TYPE--ç-RX-TX-å
--COMMENT----ON
--COMP-------OFF
è-CLOCK------12:00
• Channel indication
SELCALL
USB-A
RX--3.200.0
12:34
• Frequency indication
SELCALL
USB-A 2020-ch
TX--3.200.0
RX--3.200.0
12:34
[TUNE]
3
[Ω CLR]/[OK ≈]
HI
HI
TX frequency
indication
14
3
