RECEIVE AND TRANSMIT

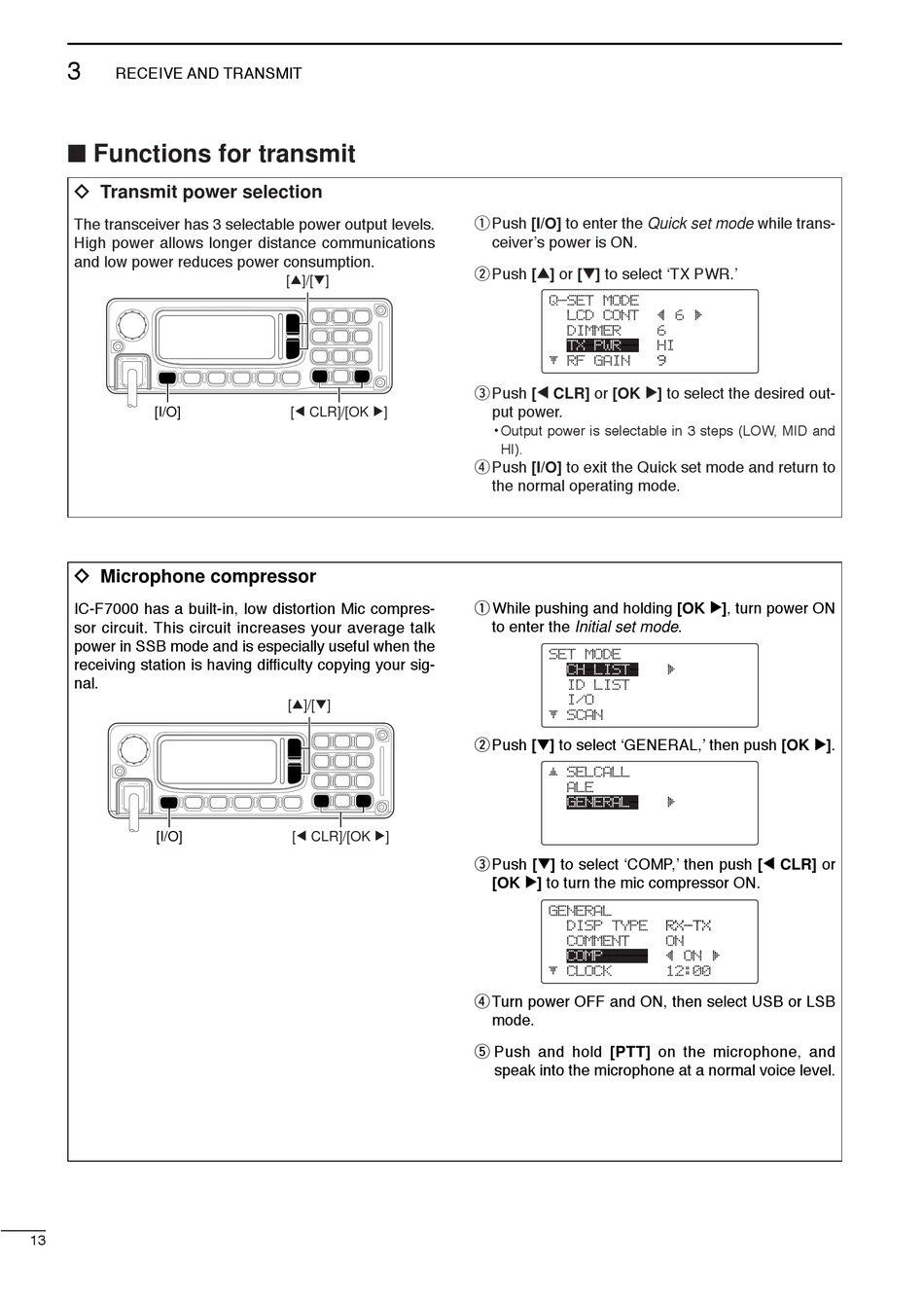

■ Functions for transmit

ï Transmit power selection
The transceiver has 3 selectable power output levels.
High power allows longer distance communications
and low power reduces power consumption.
[I/O]
ï Microphone compressor
IC-F7000 has a built-in, low distortion Mic compres-
sor circuit. This circuit increases your average talk
power in SSB mode and is especially useful when the
receiving station is having difficulty copying your sig-
nal.
[I/O]
13
[∫]/[√]
[Ω CLR]/[OK ≈]
[∫]/[√]
[Ω CLR]/[OK ≈]
q Push [I/O] to enter the Quick set mode while trans-
ceiver's power is ON.
w Push [∫ ∫ ] or [√ √ ] to select 'TX PWR.'
Q-SET-MODE
--LCD-CONT--ç-6-å
--DIMMER----6
--TX-PWR----HI
è-RF-GAIN---9
e Push [Ω Ω CLR] or [OK ≈ ≈ ] to select the desired out-
put power.
• Output power is selectable in 3 steps (LOW, MID and
HI).
r Push [I/O] to exit the Quick set mode and return to
the normal operating mode.
q While pushing and holding [OK ≈ ≈ ], turn power ON
to enter the Initial set mode.
SET-MODE
--CH-LIST----å
--ID-LIST----
--I/O--------
è-SCAN-------
w Push [√ √ ] to select 'GENERAL,' then push [OK ≈ ≈ ].
é-SELCALL----
--ALE--------
--GENERAL----å
--I/O--------
è-SCAN-------
e Push [√ √ ] to select 'COMP,' then push [Ω Ω CLR] or
[OK ≈ ≈ ] to turn the mic compressor ON.
GENERAL----
--DISP-TYPE--RX-TX
--COMMENT----ON
--COMP-------ç-ON-å
è-CLOCK------12:00
r Turn power OFF and ON, then select USB or LSB
mode.
t Push and hold [PTT] on the microphone, and
speak into the microphone at a normal voice level.
