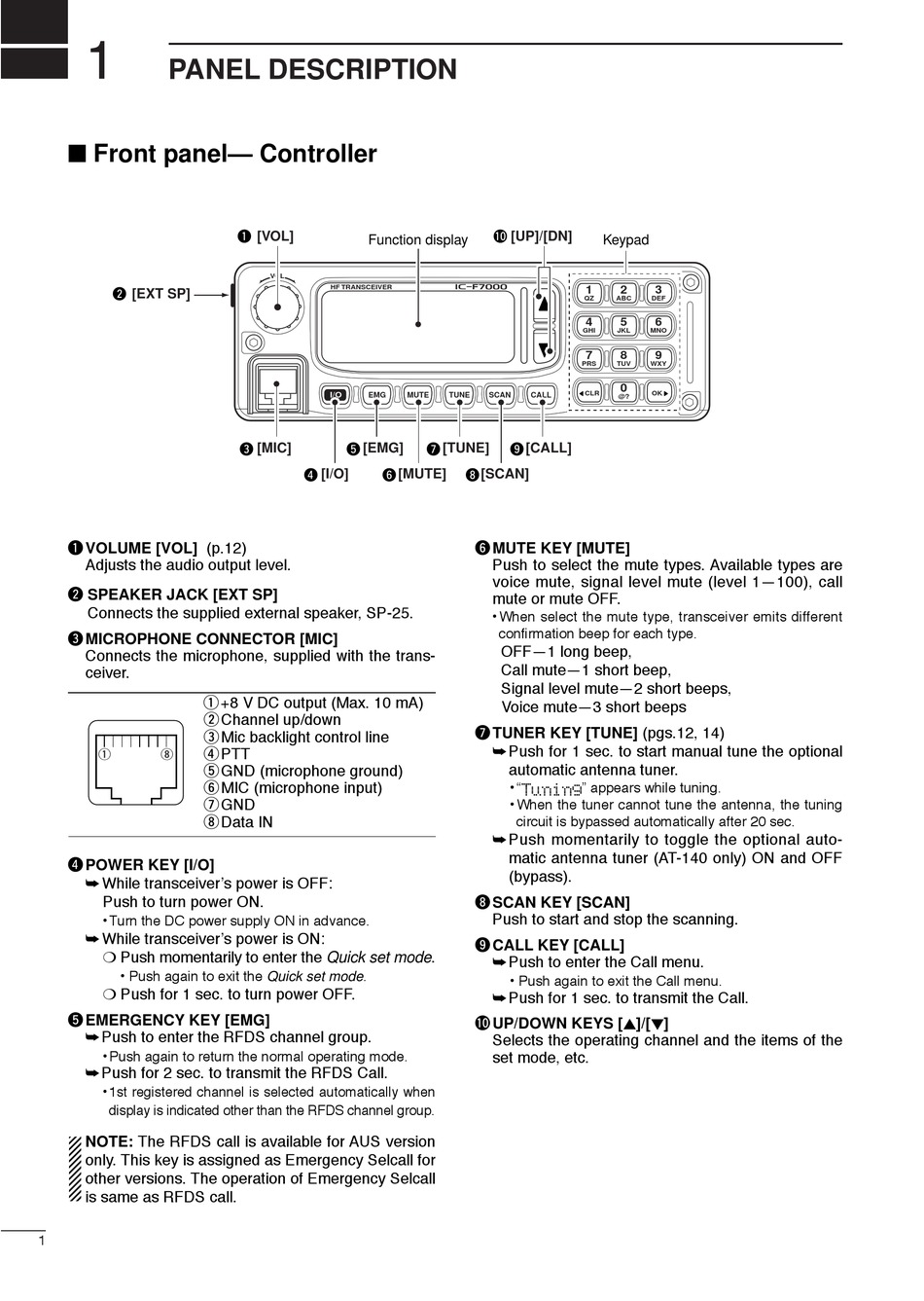

PANEL DESCRIPTION

■ Front panel— Controller
w
[EXT SP]
q VOLUME [VOL] (p.12)
Adjusts the audio output level.
w SPEAKER JACK [EXT SP]
Connects the supplied external speaker, SP-25.
e MICROPHONE CONNECTOR [MIC]
Connects the microphone, supplied with the trans-
ceiver.
q +8 V DC output (Max. 10 mA)
w Channel up/down
e Mic backlight control line
r PTT
q i
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
r POWER KEY [I/O]
➥ While transceiver's power is OFF:
Push to turn power ON.
• Turn the DC power supply ON in advance.
➥ While transceiver's power is ON:
❍ Push momentarily to enter the Quick set mode.
• Push again to exit the Quick set mode.
❍ Push for 1 sec. to turn power OFF.
t EMERGENCY KEY [EMG]
➥ Push to enter the RFDS channel group.
• Push again to return the normal operating mode.
➥ Push for 2 sec. to transmit the RFDS Call.
• 1st registered channel is selected automatically when
display is indicated other than the RFDS channel group.
NOTE: The RFDS call is available for AUS version
only. This key is assigned as Emergency Selcall for
other versions. The operation of Emergency Selcall
is same as RFDS call.
1
q
[VOL]
Function display
VOL
HF TRANSCEIVER
I/O EMG MUTE
e t
[MIC] [EMG]
r y
[I/O] [MUTE]
!0
[UP]/[DN]
iF7000
1
QZ
4
GHI
7
PRS
CLR
TUNE SCAN CALL
u o
[TUNE] [CALL]
i
[SCAN]
y MUTE KEY [MUTE]
Push to select the mute types. Available types are
voice mute, signal level mute (level 1—100), call
mute or mute OFF.
• When select the mute type, transceiver emits different
confirmation beep for each type.
OFF—1 long beep,
Call mute—1 short beep,
Signal level mute—2 short beeps,
Voice mute—3 short beeps
u TUNER KEY [TUNE] (pgs.12, 14)
➥ Push for 1 sec. to start manual tune the optional
automatic antenna tuner.
• "Tuning" appears while tuning.
• When the tuner cannot tune the antenna, the tuning
circuit is bypassed automatically after 20 sec.
➥ Push momentarily to toggle the optional auto-
matic antenna tuner (AT-140 only) ON and OFF
(bypass).
i SCAN KEY [SCAN]
Push to start and stop the scanning.
o CALL KEY [CALL]
➥ Push to enter the Call menu.
• Push again to exit the Call menu.
➥ Push for 1 sec. to transmit the Call.
!0 UP/DOWN KEYS [ ∫ ∫ ]/[ √ √ ]
Selects the operating channel and the items of the
set mode, etc.
Keypad
2 3
ABC DEF
5 6
JKL MNO
8 9
TUV WXY
0
OK
@?
