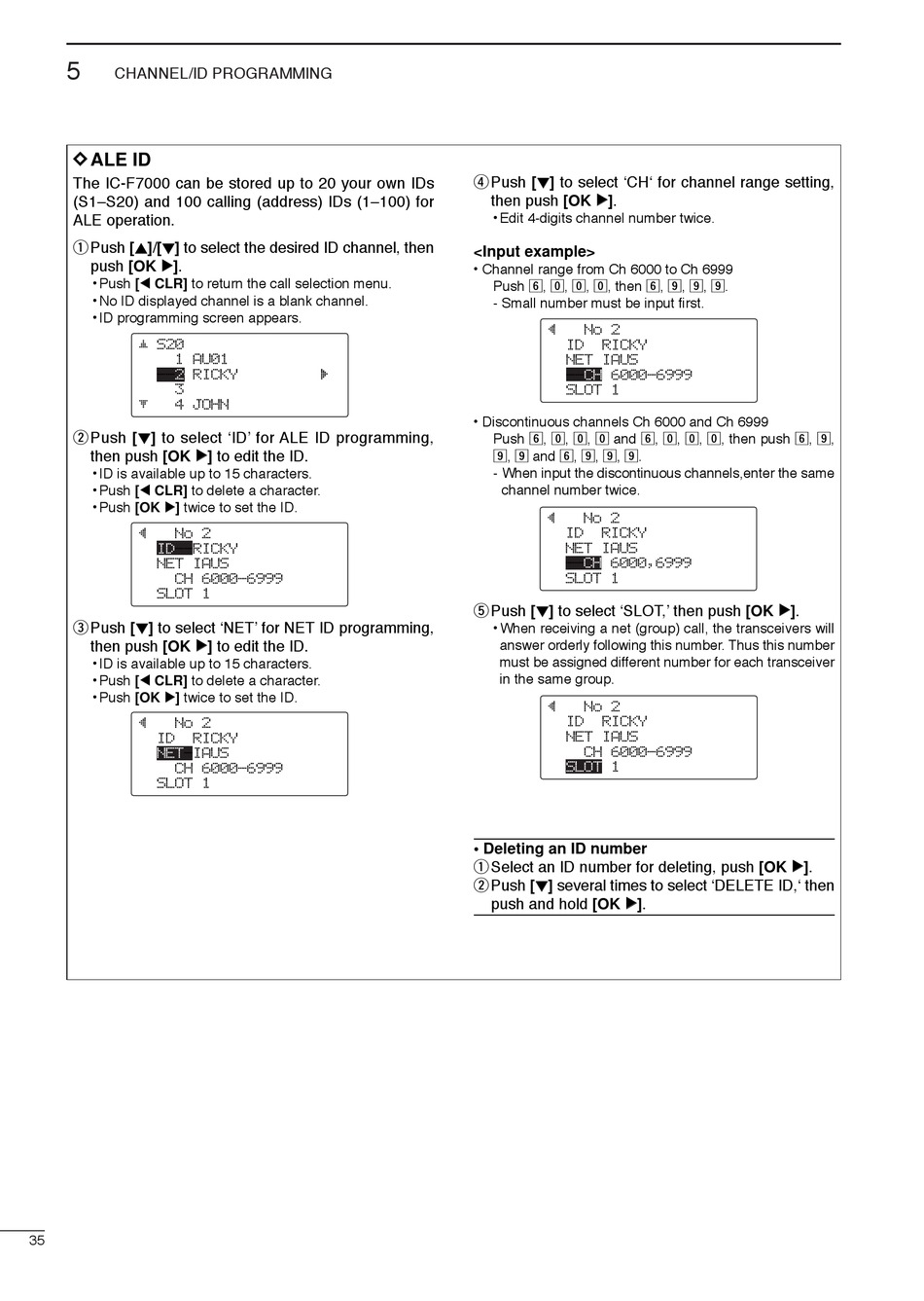

Icom IC-F7000 Instruction Manual page 38

5
CHANNEL/ID PROGRAMMING
D D ALE ID
The IC-F7000 can be stored up to 20 your own IDs
(S1–S20) and 100 calling (address) IDs (1–100) for
ALE operation.
q Push [ ∫ ∫ ]/[ √ √ ] to select the desired ID channel, then
push [OK ≈ ≈ ].
• Push [Ω Ω CLR] to return the call selection menu.
• No ID displayed channel is a blank channel.
• ID programming screen appears.
é-S20---------------å
----1-AU01
----2-RICKY---------å
----3
è---4-JOHN
w Push [ √ √ ] to select 'ID' for ALE ID programming,
then push [OK ≈ ≈ ] to edit the ID.
• ID is available up to 15 characters.
• Push [Ω Ω CLR] to delete a character.
• Push [OK ≈ ≈ ] twice to set the ID.
ç---No-2
--ID--RICKY
--NET-IAUS
----CH-6000-6999
è-SLOT-1
e Push [ √ √ ] to select 'NET' for NET ID programming,
then push [OK ≈ ≈ ] to edit the ID.
• ID is available up to 15 characters.
• Push [Ω Ω CLR] to delete a character.
• Push [OK ≈ ≈ ] twice to set the ID.
ç---No-2
--ID--RICKY
--NET-IAUS
----CH-6000-6999
è-SLOT-1
35
r Push [ √ √ ] to select 'CH' for channel range setting,
then push [OK ≈ ≈ ].
• Edit 4-digits channel number twice.
<Input example>
• Channel range from Ch 6000 to Ch 6999
Push n, /, /, /, then n, ., ., ..
- Small number must be input first.
ç---No-2
--ID--RICKY
--NET-IAUS
----CH-6000-6999
è-SLOT-1
• Discontinuous channels Ch 6000 and Ch 6999
Push n, /, /, / and n, /, /, /, then push n, .,
., . and n, ., ., ..
- When input the discontinuous channels,enter the same
channel number twice.
ç---No-2
--ID--RICKY
--NET-IAUS
----CH-6000,6999
è-SLOT-1
t Push [ √ √ ] to select 'SLOT,' then push [OK ≈ ≈ ].
• When receiving a net (group) call, the transceivers will
answer orderly following this number. Thus this number
must be assigned different number for each transceiver
in the same group.
ç---No-2
--ID--RICKY
--NET-IAUS
----CH-6000-6999
è-SLOT-1
• Deleting an ID number
q Select an ID number for deleting, push [OK ≈ ≈ ].
w Push [ √ √ ] several times to select 'DELETE ID,' then
push and hold [OK ≈ ≈ ].
