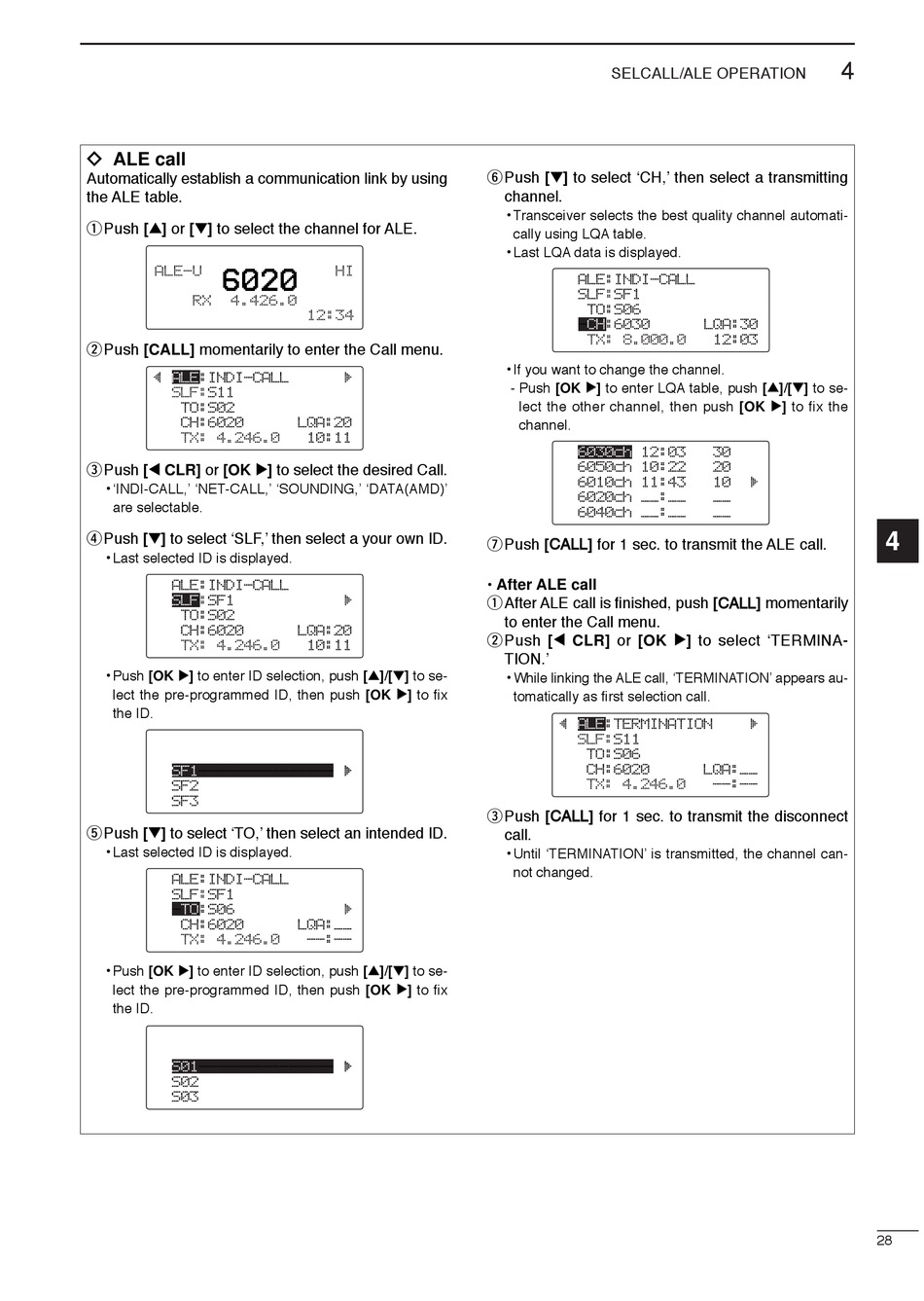

ï ALE call
Automatically establish a communication link by using
the ALE table.
q Push [∫ ∫ ] or [√ √ ] to select the channel for ALE.
SELCALL
ALE-U
RX--4.426.0
w Push [CALL] momentarily to enter the Call menu.
ç-ALE:INDI-CALL------å
--SLF:S11
---TO:S02
ç--CH:6020------LQA:20
è--TX:-4.246.0---10:11
e Push [Ω Ω CLR] or [OK ≈ ≈ ] to select the desired Call.
• 'INDI-CALL,' 'NET-CALL,' 'SOUNDING,' 'DATA(AMD)'
are selectable.
r Push [√ √ ] to select 'SLF,' then select a your own ID.
• Last selected ID is displayed.
ç-ALE:INDI-CALL------å
--SLF:SF1------------å
---TO:S02
ç--CH:6020------LQA:20
è--TX:-4.246.0---10:11
• Push [OK ≈ ≈ ] to enter ID selection, push [∫ ∫ ]/[√ √ ] to se-
lect the pre-programmed ID, then push [OK ≈ ≈ ] to fix
the ID.
--
--
ç-SF1----------------å
ç-SF2----------------å
è-SF3
t Push [√ √ ] to select 'TO,' then select an intended ID.
• Last selected ID is displayed.
ç-ALE:INDI-CALL
--SLF:SF1------------å
---TO:S06------------å
ç--CH:6020------LQA:__
è--TX:-4.246.0-----:--
• Push [OK ≈ ≈ ] to enter ID selection, push [∫ ∫ ]/[√ √ ] to se-
lect the pre-programmed ID, then push [OK ≈ ≈ ] to fix
the ID.
--
--
ç-S01----------------å
ç-S02----------------å
è-S03
HI
12:34
SELCALL/ALE OPERATION
y Push [√ √ ] to select 'CH,' then select a transmitting
channel.
• Transceiver selects the best quality channel automati-
cally using LQA table.
• Last LQA data is displayed.
ç-ALE:INDI-CALL------å
--SLF:SF1
---TO:S06
ç--CH:6030------LQA:30
è--TX:-8.000.0---12:03
• If you want to change the channel.
- Push [OK ≈ ≈ ] to enter LQA table, push [∫ ∫ ]/[√ √ ] to se-
lect the other channel, then push [OK ≈ ≈ ] to fix the
channel.
--6030ch-12:03---30
--6050ch-10:22---20
ç-6010ch-11:43---10--å
ç-6020ch-__:__---__--
è-6040ch-__:__---__--
u Push [C C A A L L L L ] for 1 sec. to transmit the ALE call.
• After ALE call
q After ALE call is finished, push [C C A A L L L L ] momentarily
to enter the Call menu.
w Push [Ω Ω CLR] or [OK ≈ ≈ ] to select 'TERMINA-
TION.'
• While linking the ALE call, 'TERMINATION' appears au-
tomatically as first selection call.
ç-ALE:TERMINATION----å
--SLF:S11
---TO:S06
ç--CH:6020------LQA:__
è--TX:-4.246.0-----:--
e Push [C C A A L L L L ] for 1 sec. to transmit the disconnect
call.
• Until 'TERMINATION' is transmitted, the channel can-
not changed.
4
