Icom IC-F7000 Instruction Manual page 65

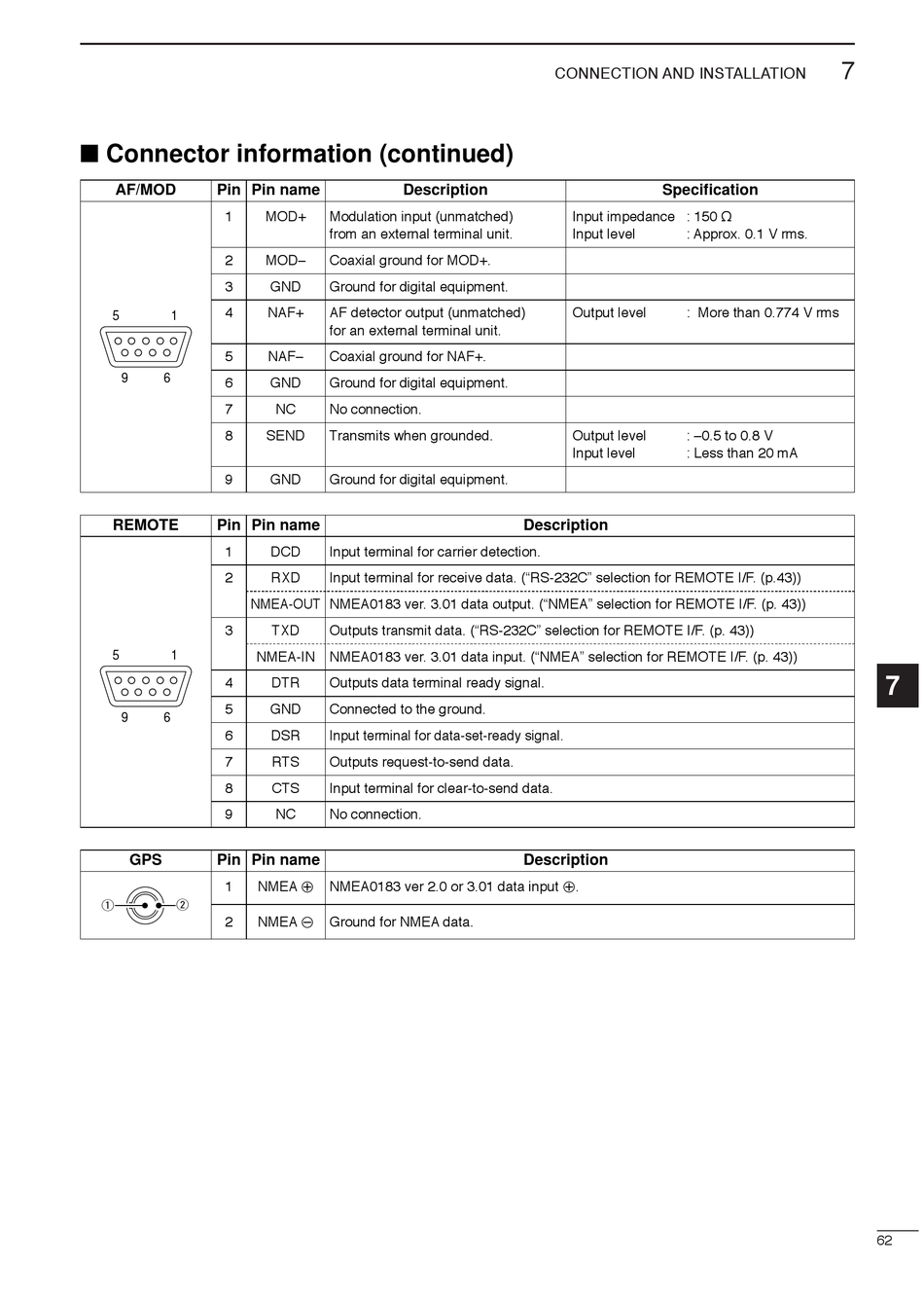

■ Connector information (continued)
AF/MOD Pin Pin name
1
2
3
4
5 1
5
9 6
6
7
8
9
REMOTE Pin Pin name
1
2
NMEA-OUT NMEA0183 ver. 3.01 data output. ("NMEA" selection for REMOTE I/F. (p. 43))
3
5 1
4
5
9 6
6
7
8
9
GPS Pin Pin name
1
q w
2
Description
MOD+ Modulation input (unmatched)
from an external terminal unit.
MOD– Coaxial ground for MOD+.
GND Ground for digital equipment.
NAF+ AF detector output (unmatched)
for an external terminal unit.
NAF– Coaxial ground for NAF+.
GND Ground for digital equipment.
NC No connection.
SEND Transmits when grounded.
GND Ground for digital equipment.
DCD Input terminal for carrier detection.
RXD Input terminal for receive data. ("RS-232C" selection for REMOTE I/F. (p.43))
TXD Outputs transmit data. ("RS-232C" selection for REMOTE I/F. (p. 43))
NMEA-IN NMEA0183 ver. 3.01 data input. ("NMEA" selection for REMOTE I/F. (p. 43))
DTR Outputs data terminal ready signal.
GND Connected to the ground.
DSR Input terminal for data-set-ready signal.
RTS Outputs request-to-send data.
CTS Input terminal for clear-to-send data.
NC No connection.
NMEA + NMEA0183 ver 2.0 or 3.01 data input +.
NMEA _
Ground for NMEA data.
CONNECTION AND INSTALLATION
Specification
Input impedance : 150 Ω
Input level : Approx. 0.1 V rms.
Output level : More than 0.774 V rms
Output level : –0.5 to 0.8 V
Input level : Less than 20 mA
Description
Description
7
7
62
