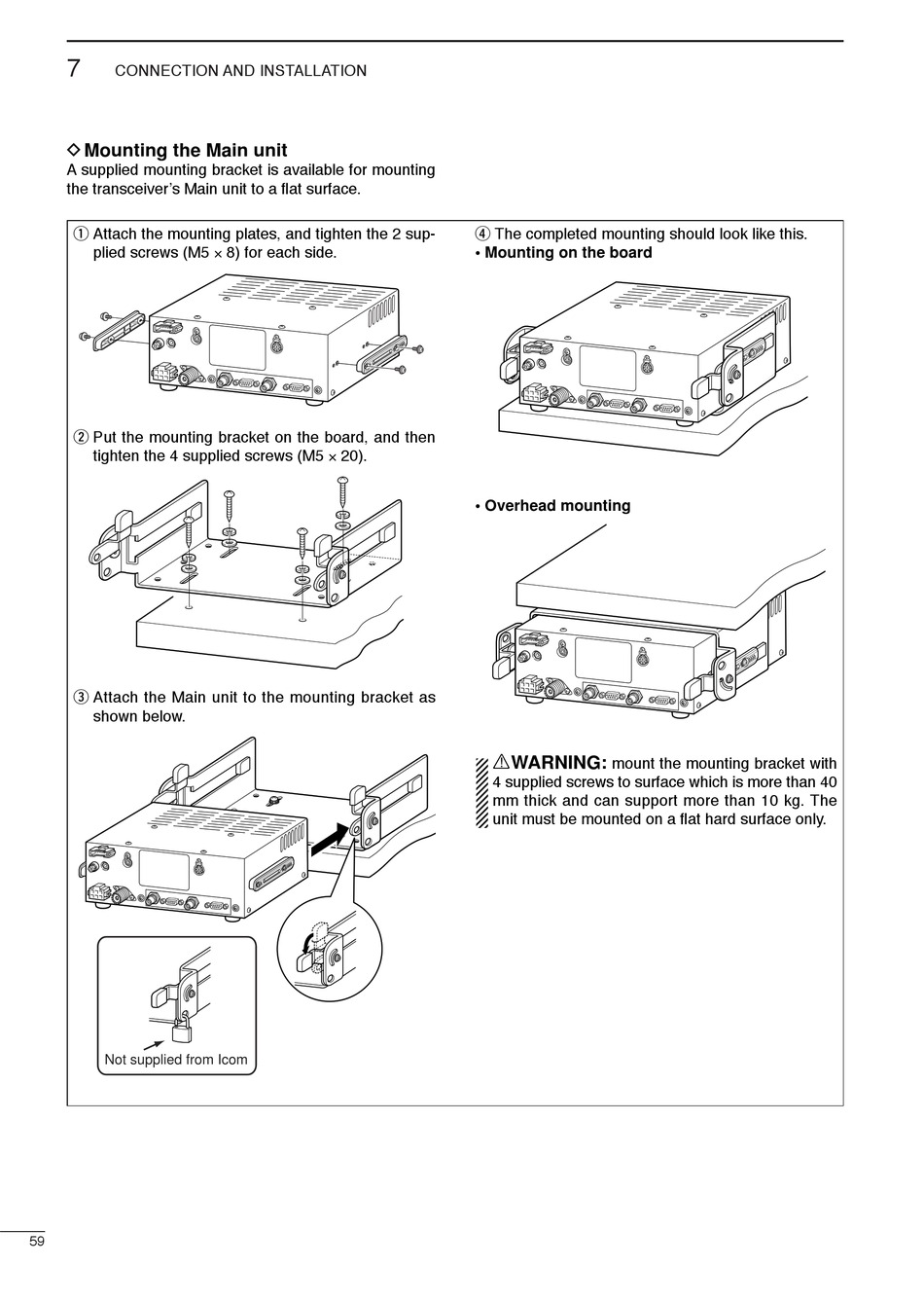

CONNECTION AND INSTALLATION
D Mounting the Main unit
A supplied mounting bracket is available for mounting
the transceiver's Main unit to a flat surface.
q Attach the mounting plates, and tighten the 2 sup-
plied screws (M5 × 8) for each side.
w Put the mounting bracket on the board, and then
tighten the 4 supplied screws (M5 × 20).
e Attach the Main unit to the mounting bracket as
shown below.
Not supplied from Icom
59
r The completed mounting should look like this.
• Mounting on the board
• Overhead mounting
RWARNING:
mount the mounting bracket with
4 supplied screws to surface which is more than 40
mm thick and can support more than 10 kg. The
unit must be mounted on a flat hard surface only.
