7
CONNECTION AND INSTALLATION

■ Antenna

Most stations operate with a whip or long wire (insu-
lated backstay) antenna. However, these antennas
cannot be connected directly to the transceiver since
their impedance may not be matched with the trans-
ceiver antenna connector.
R WARNING: HIGH VOLTAGE!
NEVER
touch the antenna element/wire while tun-
ing or transmitting.
D D MN-100/MN-100L
D D AT-130/AT-130E
D D Non-Icom tuner
Some non-Icom tuners may be used with the IC-
F7000. Please consult your dealer if you wish to con-
nect one.
57

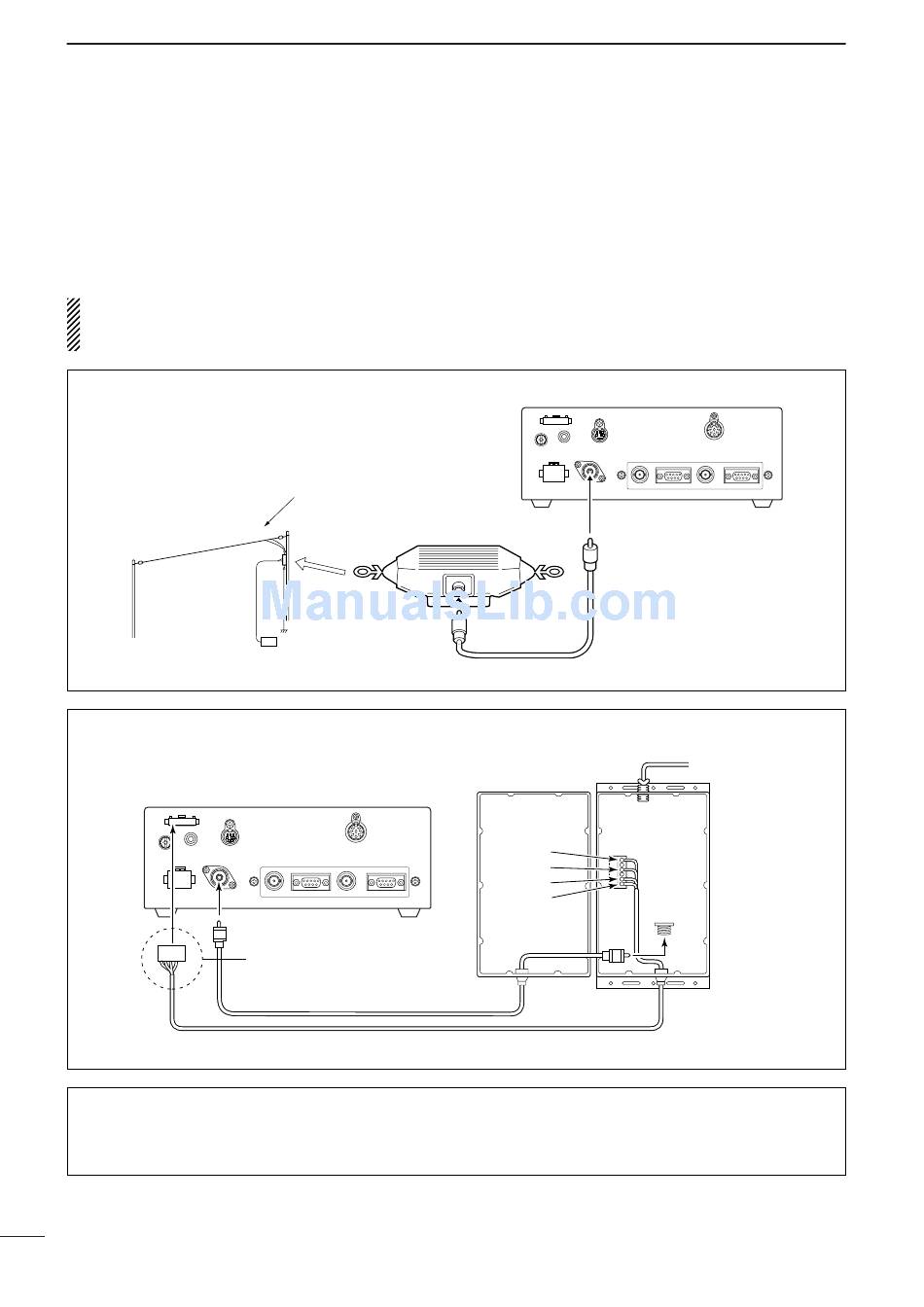

ANTENNA MATCHERS
Antenna wire
AUTOMATIC ANTENNA TUNER
Assemble the connector using
the supplied connector kit.
See page 61 for pin assignment.
Control cable (Not supplied from Icom)
With a 50 Ω matched antenna all HF bands cannot be
used. The following antenna matcher or antenna tuner
may be helpful for antenna installation.
MN-100/MN-100L
[E]:
[13.6]:
[START]:
[KEY]:
D D AT-140
AUTOMATIC ANTENNA TUNER
See page 55.
to antenna element
