Opening the Performance Monitor window

FIGURE 22

Opening the Performance Monitor window

To perform performance monitoring, you must use Web Tools with the EGM license; otherwise,
access to this feature is denied and an error messages displays.
To open the Performance Monitor window, perform the following steps.
1. Select a switch from the Fabric Tree and log in when prompted.
2. Click Monitor > Performance Monitor. The Performance Monitor window displays.

Creating basic performance monitor graphs

To create the basic performance monitor graphs listed in
following steps.
1. Open the Performance Monitor window.
2. Select Performance Graphs > Basic Monitoring > Graph Type.
3. If prompted, drag the port into the Enter/drag slot,port field, or manually enter the slot and
94

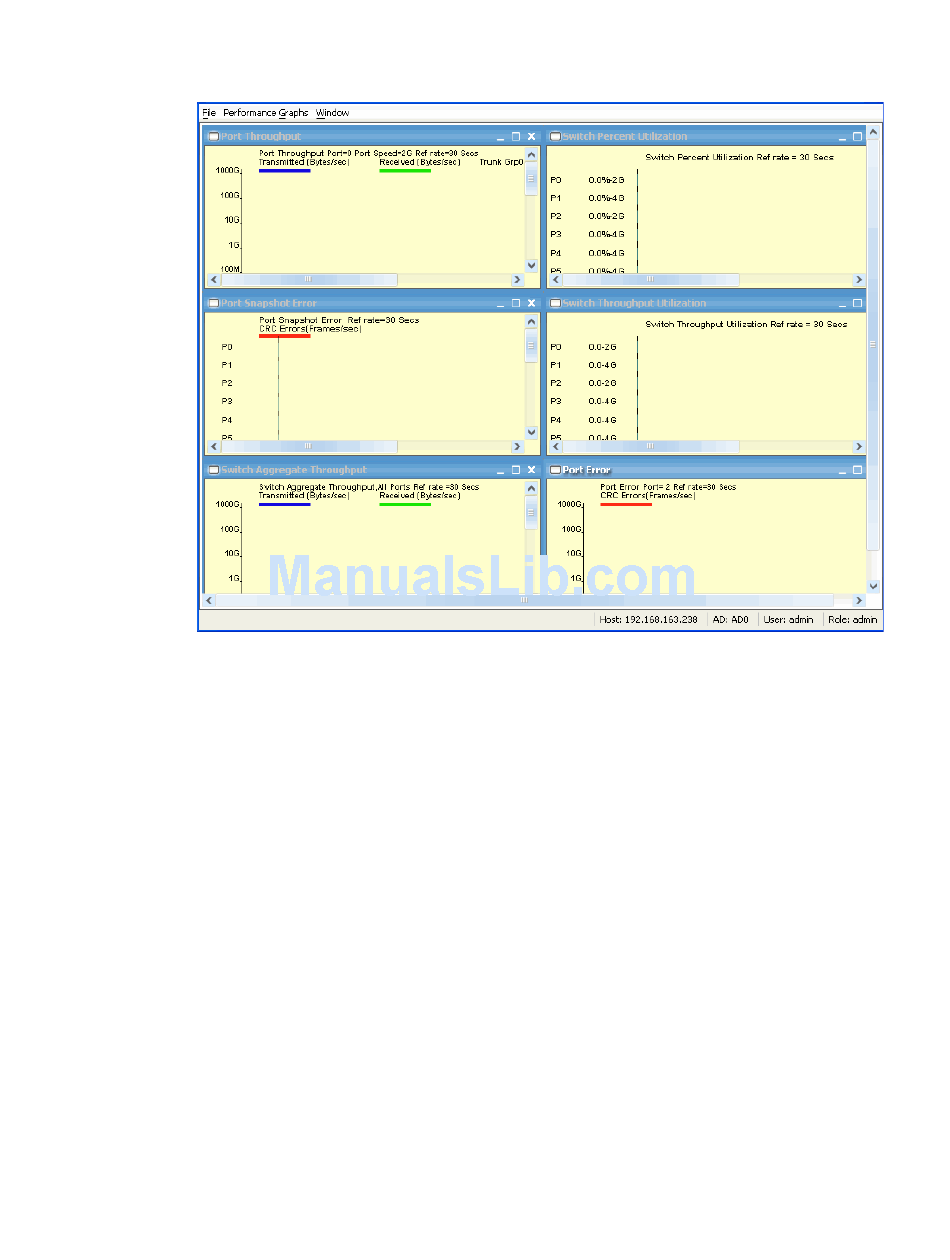

Canvas of six performance monitoring graphs
Depending on the type of graph you select, you might be prompted to select a slot or port for
which to create a graph.
port information in the field, in the format slot,port.
Table 11 on page 91, perform the
