[admin@MikroTik] interface l2tp-server> add user=ex1
[admin@MikroTik] interface l2tp-server> print
Flags: X - disabled, D - dynamic, R - running
# NAME
0 DR <l2tp-ex>
1 l2tp-in1
[admin@MikroTik] interface l2tp-server>
In this example an already connected user ex is shown besides the one we just added.

L2TP Application Examples

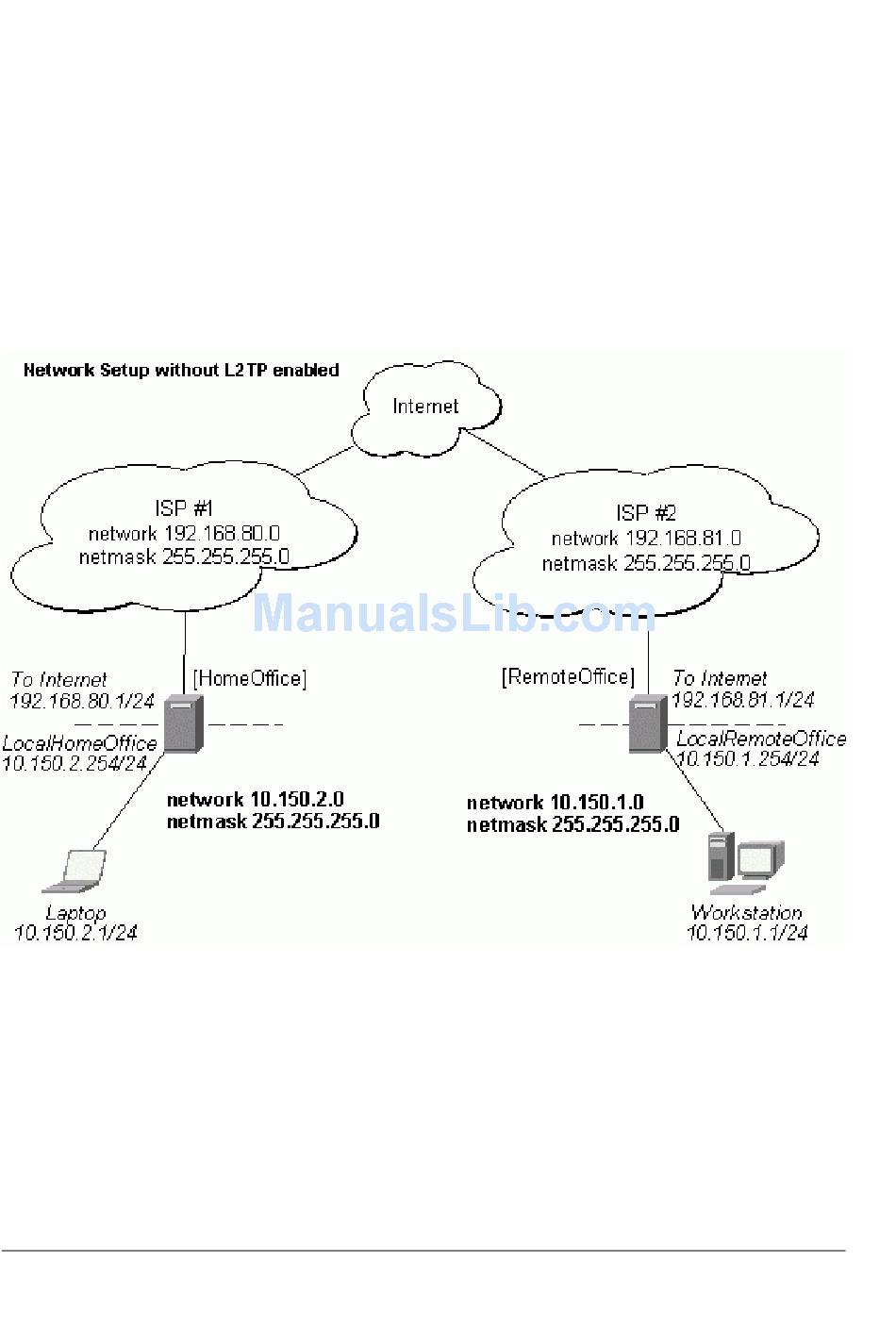

Router-to-Router Secure Tunnel Example
There are two routers in this example:
• [HomeOffice]
Interface LocalHomeOffice 10.150.2.254/24
Interface ToInternet 192.168.80.1/24
• [RemoteOffice]
Interface ToInternet 192.168.81.1/24
Interface LocalRemoteOffice 10.150.1.254/24
Each router is connected to a different ISP. One router can access another router through the
Internet.
Page 328 of 695
Copyright 1999-2007, MikroTik. All rights reserved. Mikrotik, RouterOS and RouterBOARD are trademarks of Mikrotikls SIA.
Other trademarks and registred trademarks mentioned herein are properties of their respective owners.
USER MTU
ex 1460
ex1
CLIENT-ADDRESS UPTIME
10.0.0.202 6m32s
ENC...
none
