Chapter 4: FPGA Configuration Options
The Spartan-3E Starter Kit board has an XCF04S Platform Flash PROM. Select xcf04s
from the drop list, as shown in
The PROM Formatter then echoes the settings, as shown in
34
www.xilinx.com
Figure

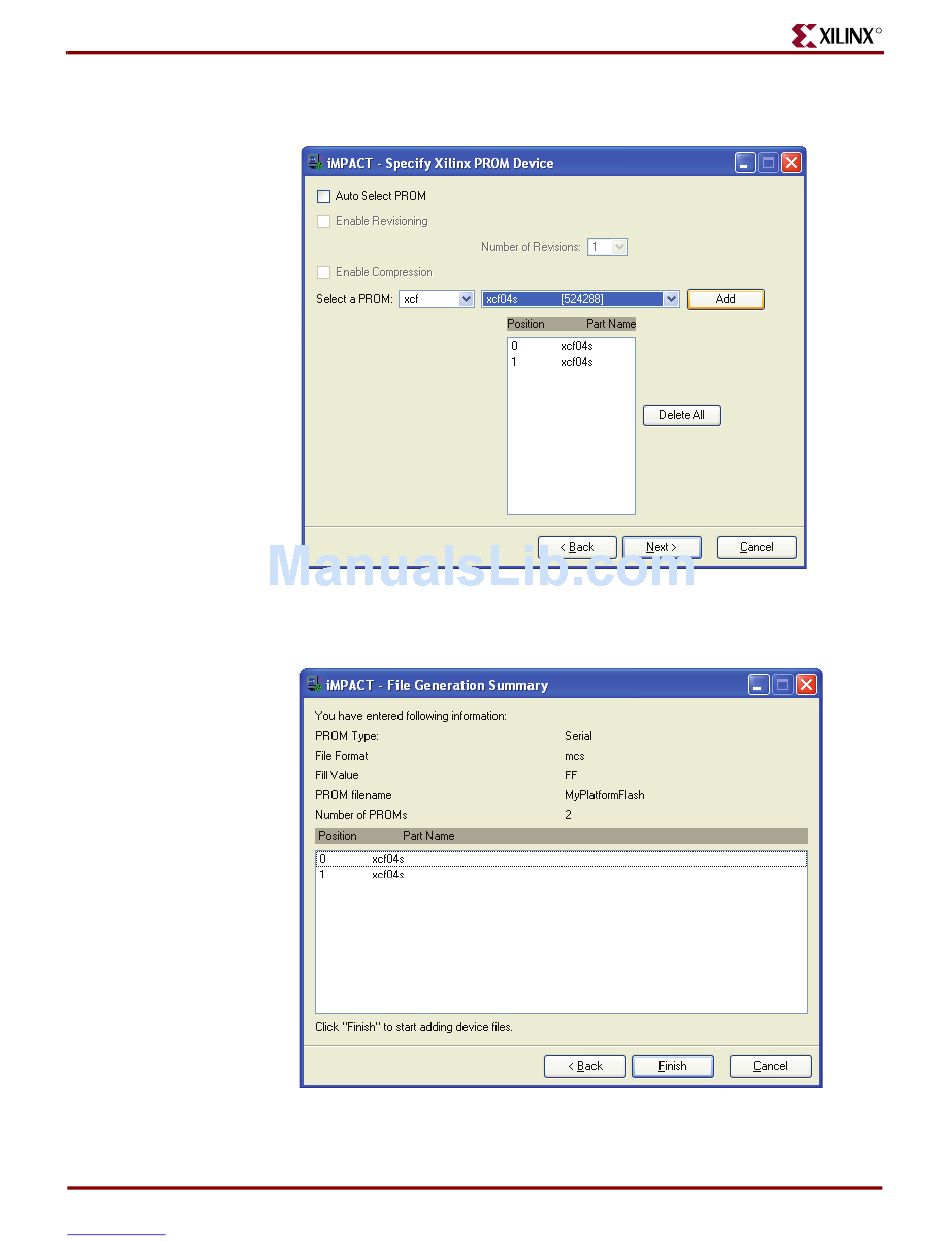

Figure 4-16: Choose the XCF04S Platform Flash PROM
Figure 4-17: Click Finish after Entering PROM Formatter Settings
MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
4-16. Click Add, then click Next >.
Figure
UG257 (v1.1) December 5, 2007
R
UG257_4-16_061206
4-17. Click Finish.
UG257_4-17_061206
