Firmware Update Wizard

The Firmware Update Wizard provides step-by-step instructions for updating the mpx110 gateway
firmware.
To update the firmware:
1. Select the FW Update Wizard option from the Wizards menu.
The mpx Selection dialog box appears

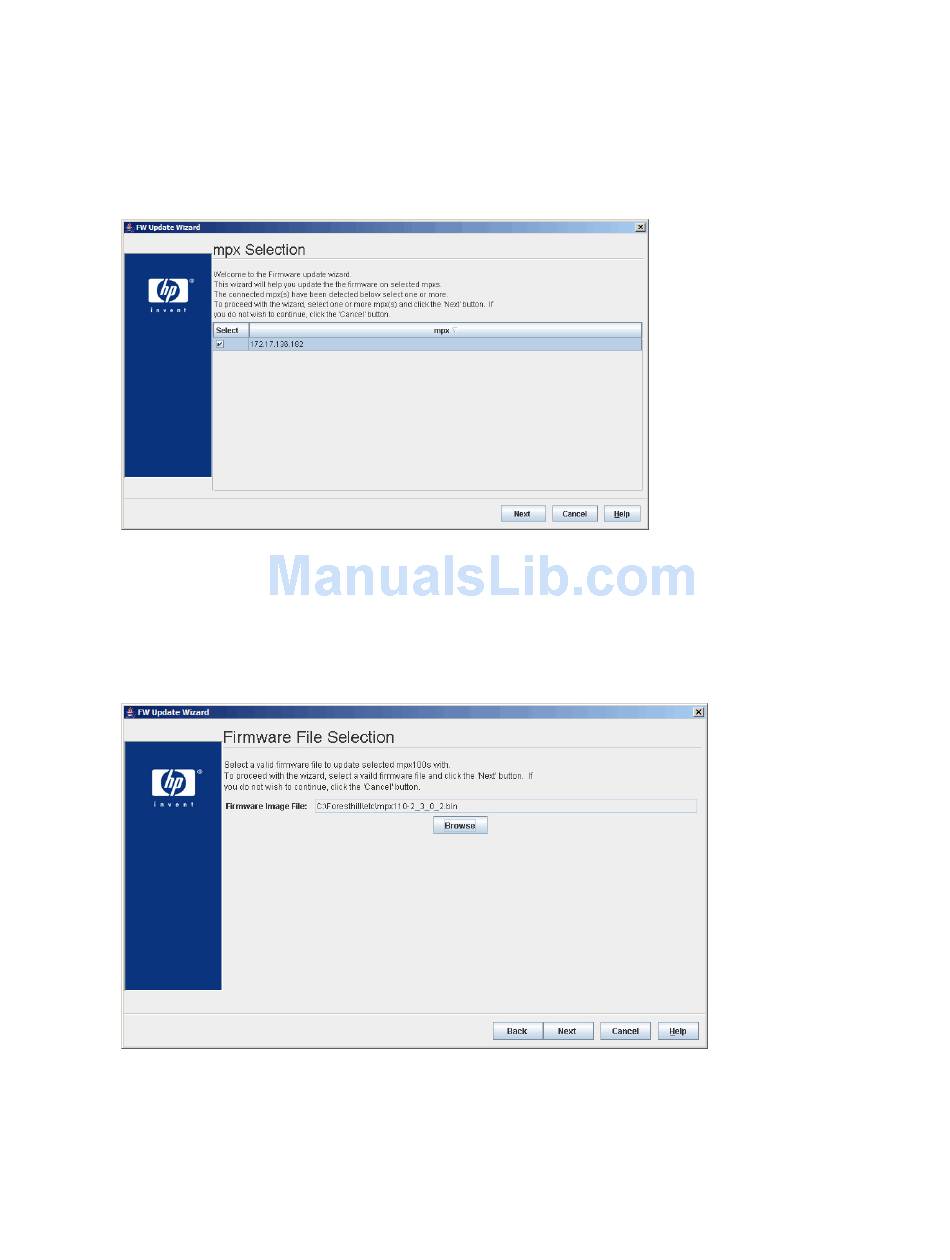

Figure 44 mpx Selection dialog box
.
2. Select the check box next to the appropriate gateway, and then click Next.
3. Enter the path to the firmware file, or click Browse to locate the firmware file.
The Firmware Image File box appears, displaying the firmware file.
4. Click Next to continue.
Figure 45 Firmware File Selection dialog box
.
80 Using the HP StorageWorks mpx Manager utility
(Figure 44).
