How to enable the "Show native resolution" function?
1. Press MENU to activate the menu bar.
2. Press → to select the Image item.
3. Press ↓ to pull down the Image menu.

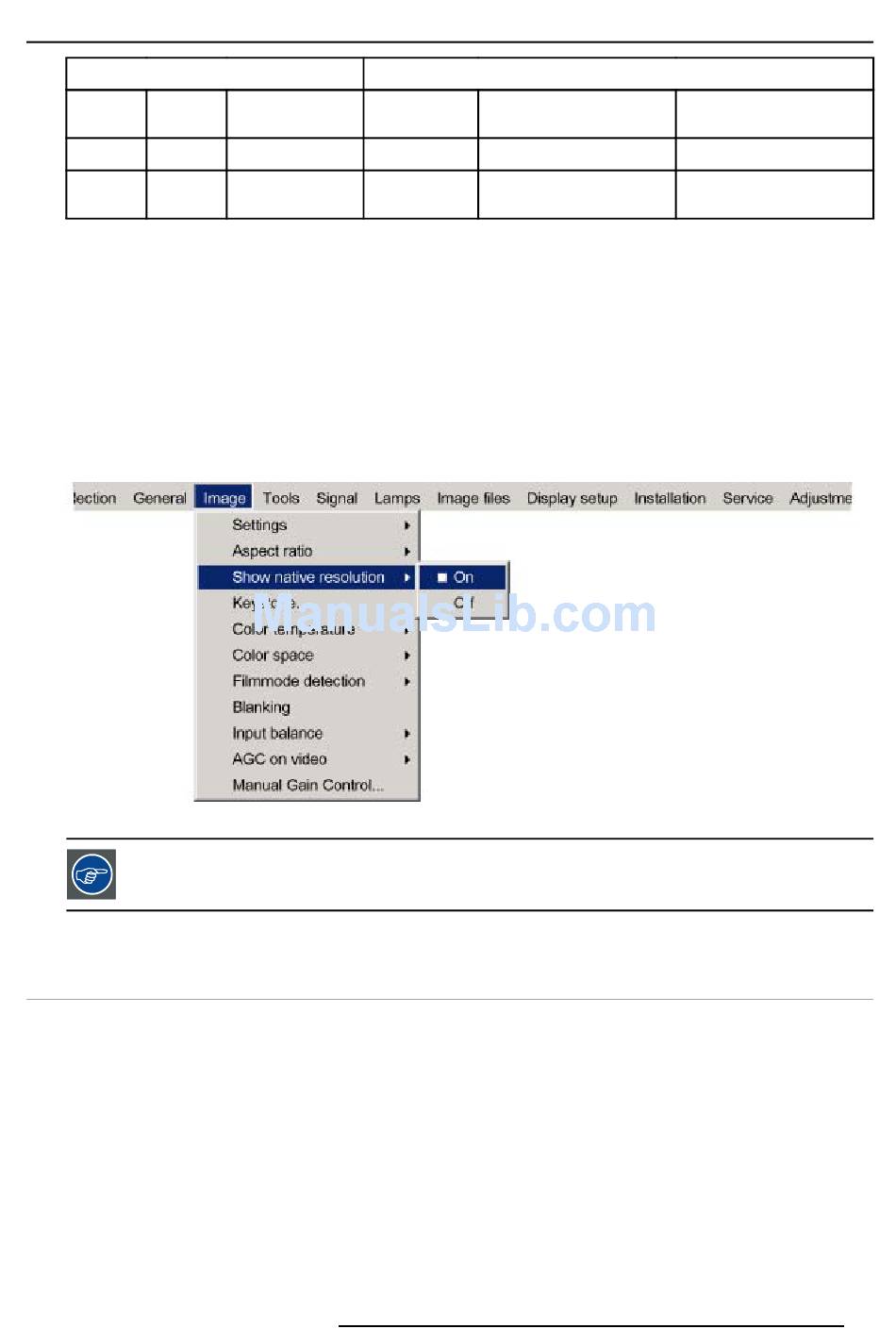

4. Use ↑ or ↓ to select Show native resolution. (image 8-17)
5. Press → to pull down the menu.
6. Use ↓ or ↑ to select On.
7. Press ENTER .
A white bullet shows the selection.
Image 8-17
When Show Native Resolution is in the ON position, scrolling of the image is possible with the arrow keys on
the remote control.
8.5

Keystone correction

What can be done ?
The Keystone adjustment is used to align the image, this can be necessary when projecting under a non standard angle
R5976816 RLM R6+ PERFORMER 02/06/2006
Projected image
1280x1024 5:4
1400x1050 4:3
1600x1200 4:3
1280x1024
1400x1050
1600x1200
8. Image Menu
image projected with black
borders
normal image projected
part of the image displayed,
image scroll possible
