S-Video input

Input specification
R/PR
G/Y
DVI
POWER WIRELESS
RECEIVER
10 BASE-T

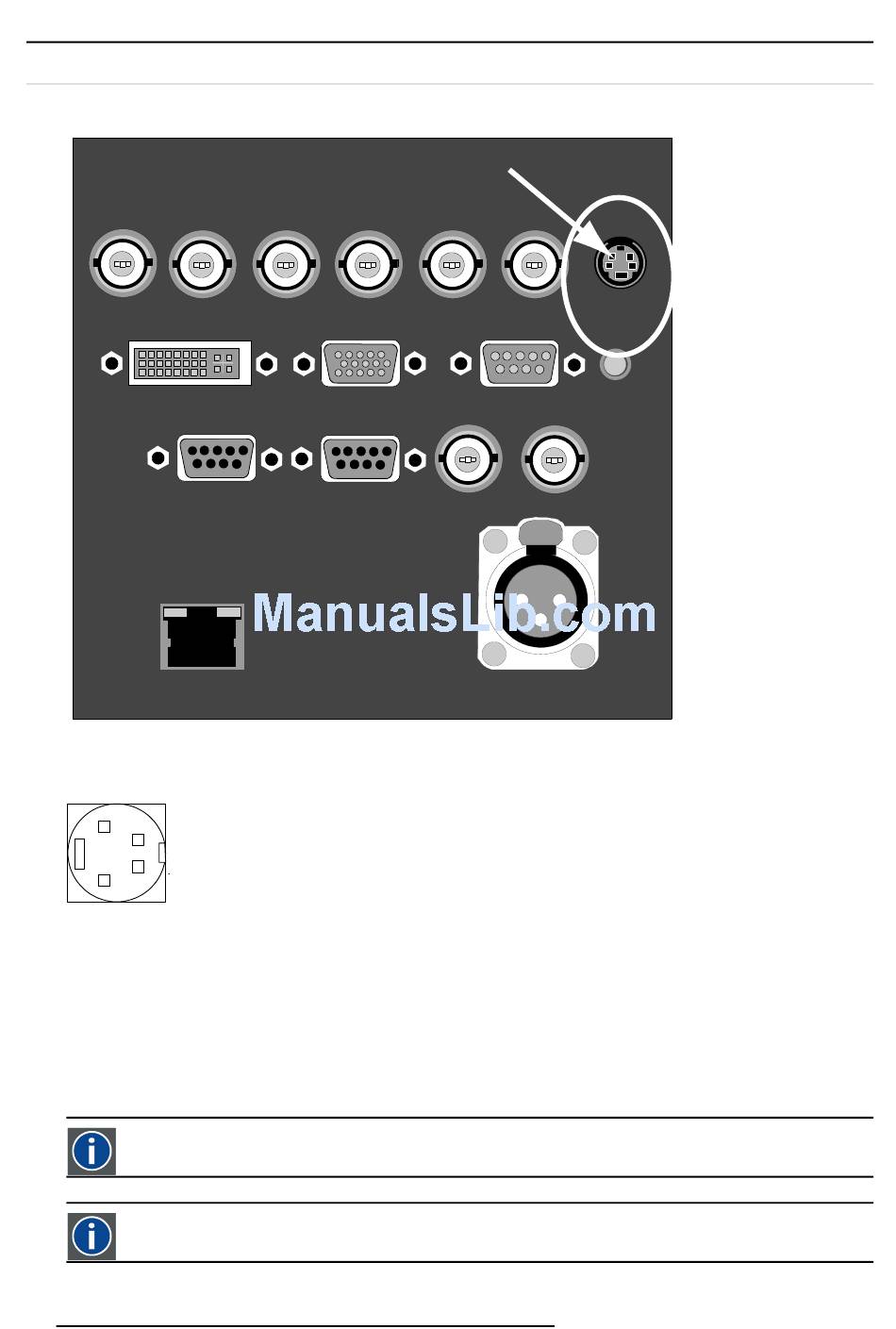

Image 3-5
S-Video indication
Pin configuration 4 pin connector
2
4
3
1
Image 3-6
For S-Video
pin 1 : earth (ground) luminance
pin 2 : earth (ground) chrominance
pin 3 : luminance signal (Y) 1Vpp ±3dB
pin 4 : chrominance signal (C) 300mVpp
Chrominance
The color component of a video signal that includes information about tint and saturation.
Luminance
The component of a video signal that includes information about its brightness.
26
B/PB Hs/Cs
ANALOG RGB
RS 232/422 (HD)SDI
OUT
Vs VIDEO S-VIDEO
R.C.
RS 232/422 IN
(HD)SDI OUT
IN
PUSH
2
1
3
TWO WAY
HARDWIRED REMOTE
For Video
pin 1 : earth (ground) video Y
pin 2 : earth (ground) video C
pin 3 : video Y signal
pin 4 : video C signal
