16. ADJUSTMENT MENU (CHECK UP)

Overview
•

Internal patterns

• Convergence
• More..
All items in the adjustment menu are given for check up. No adjustments are possible.
16.1 Internal patterns
How to select ?
1. Press MENU to activate the menu bar.
2. Press → to select the Adjustment item. (image 16-1)
3. Press ↓ to pull down the Adjustment menu.
4. Use ↑ or ↓ to select Internal patterns.
5. Press → to pull down the menu.
6. Use ↑ or ↓ to select the desired test pattern.
The following test patterns are available:
- Purity
- Outline
- Hatch
- Color bars
- Checkerboard
- Full white
- HGBWS
- Character set
7. Press ENTER to select.
The selected test pattern will be displayed.

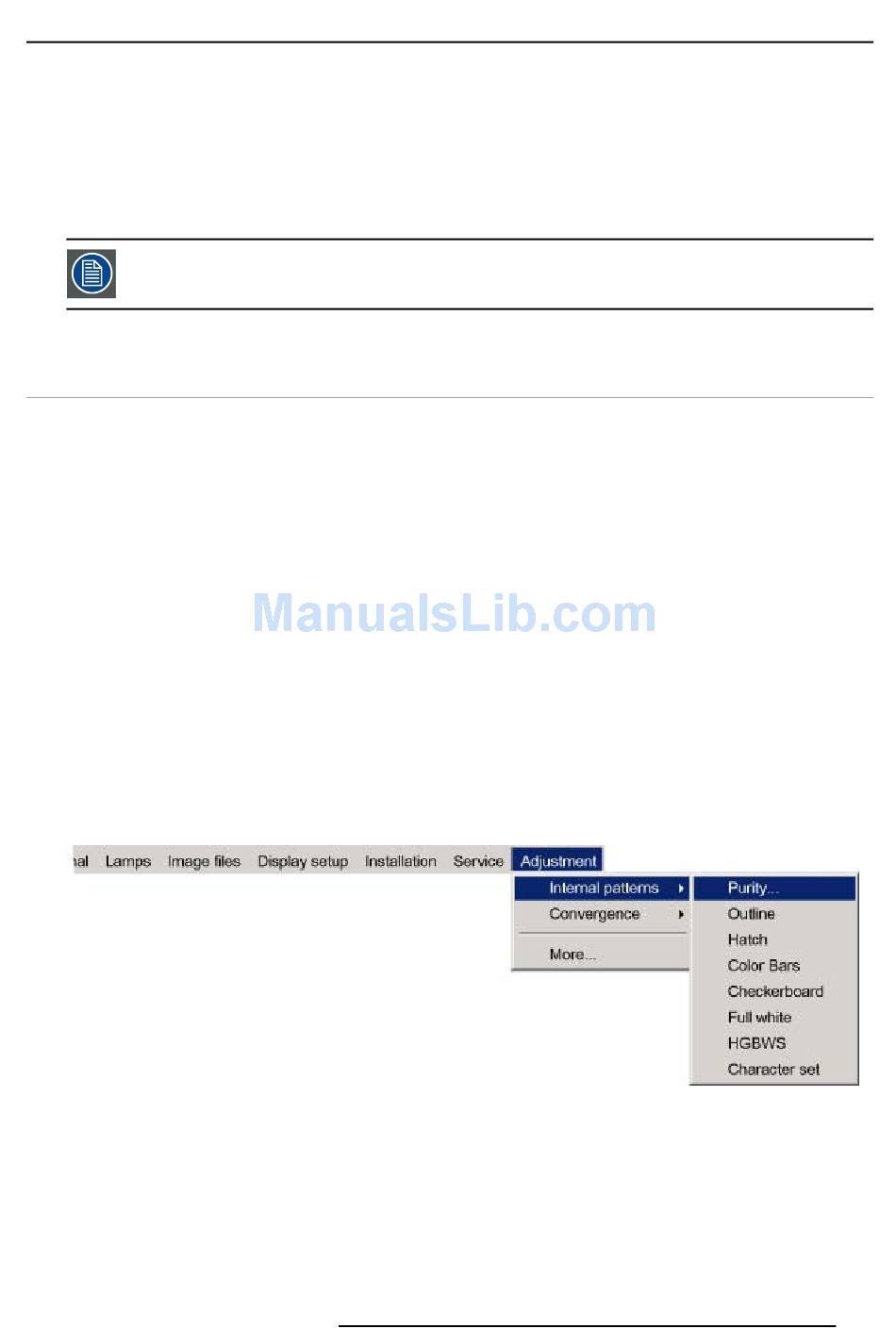

Image 16-1
When character set is selected
A character set is built up with several pages:
1. Press ENTER for the next set (page).
2. Press BACK for previous set (page).
3. Press MENU to return to menu structure.
