3. Connections
R/PR
DVI
POWER WIRELESS
RECEIVER
10 BASE-T

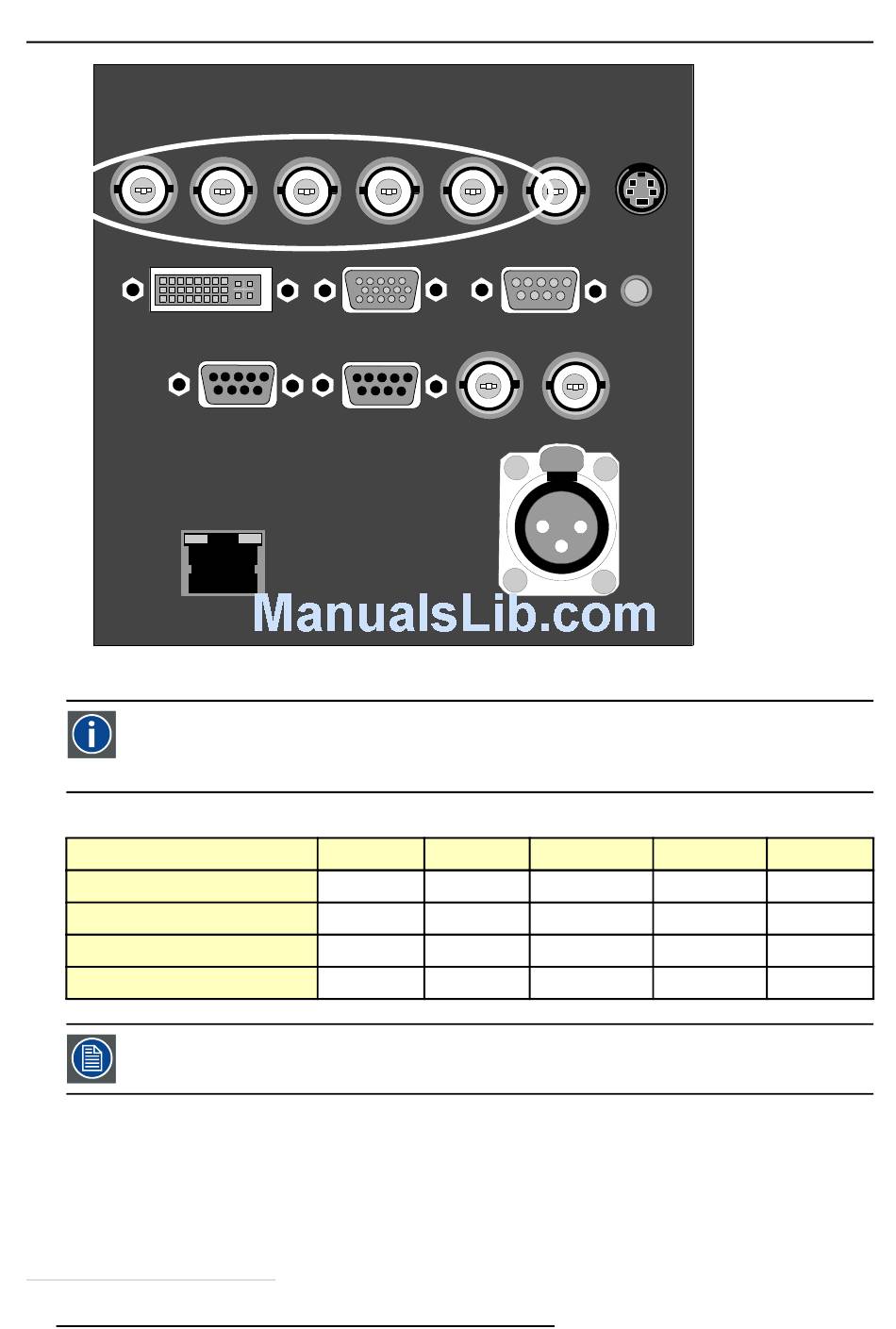

Image 3-3
5-cable input
Component Video
In Component Video the term component describes a number (3) of elements that are needed to make up the video
picture, these components are R-Y/Y/B-Y. A composite video signal on the other hand contains all the information
needed for the color picture in a single channel of information
Which signals can be connected ?
Signals/Input BNC
RGBHV
1
RG B
s
1
RGBS
Component
Beside the standard RGB, component and sync signals, the extended mode of the 5 Cable input makes pro-
cessing of additional signals possible.
How to select a source on the 5 cable input ?
1. Press 1 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu
1. data or video
