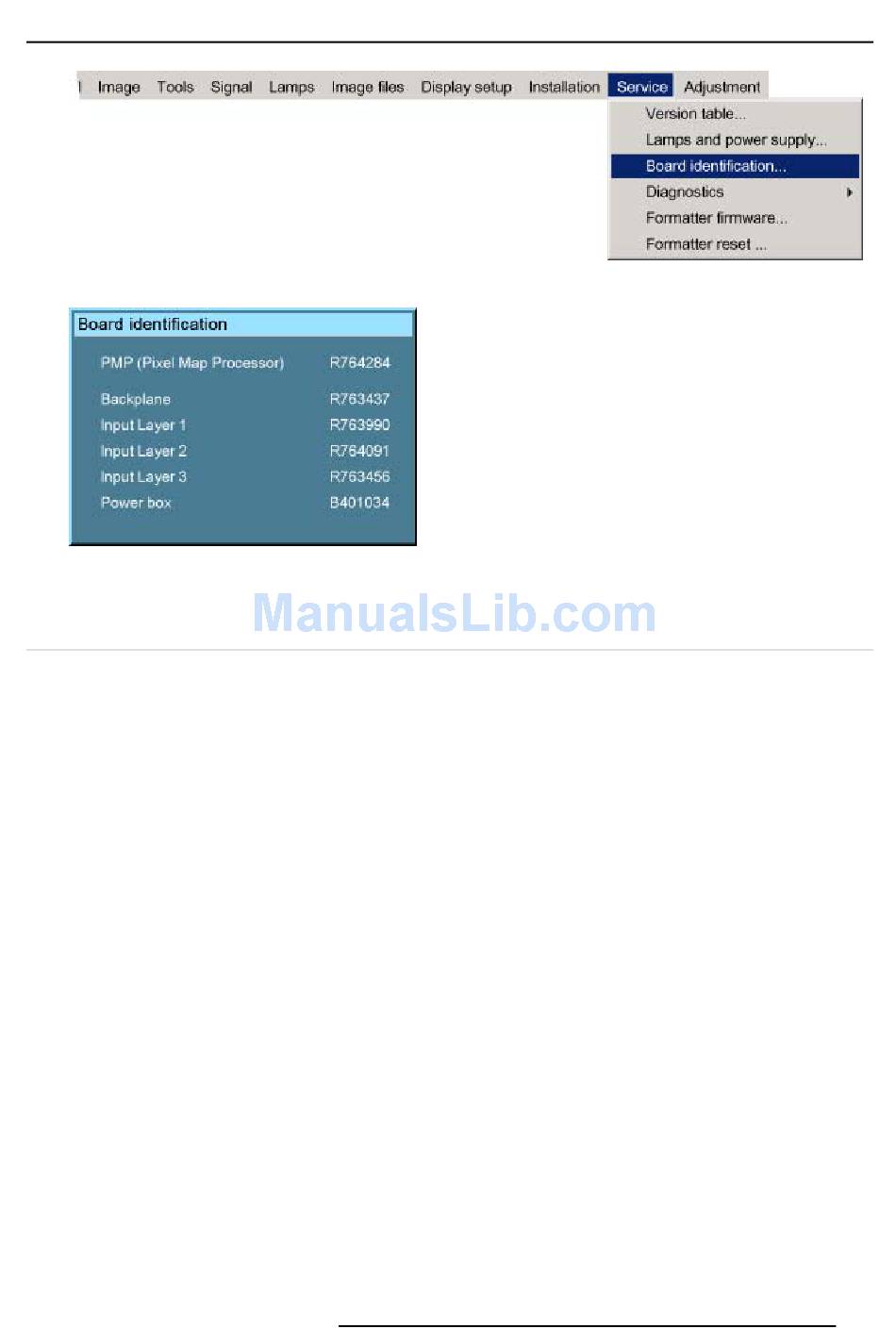

Image 15-5
Image 15-6
15.4 Diagnostics
Overview
•
I²C Diagnostics
•
Lamps and power supply
15.4.1 I²C Diagnostics
What can be done ?
The I
2
C bus allows the diagnostic of different hardware components
How to display the diagnostics menu ?
1. Press MENU to activate the menu bar.
2. Press → to select the Service item. (image 15-7)
3. Press ↓ to pull down the Service menu.
4. Use ↑ or ↓ to select Diagnostics.
5. Press → to pull down the menu.
6. Use ↑ or ↓ to select I²C.
7. Press ENTER to select I
A text box is displayed. (image 15-8)
Items with a green icon are OK. Items with a red icon have a problem.
8. Use the ↑ or ↓ keys to scroll inside the list.
R5976816 RLM R6+ PERFORMER 02/06/2006
2
C.
15. Service
143
