8. Image Menu

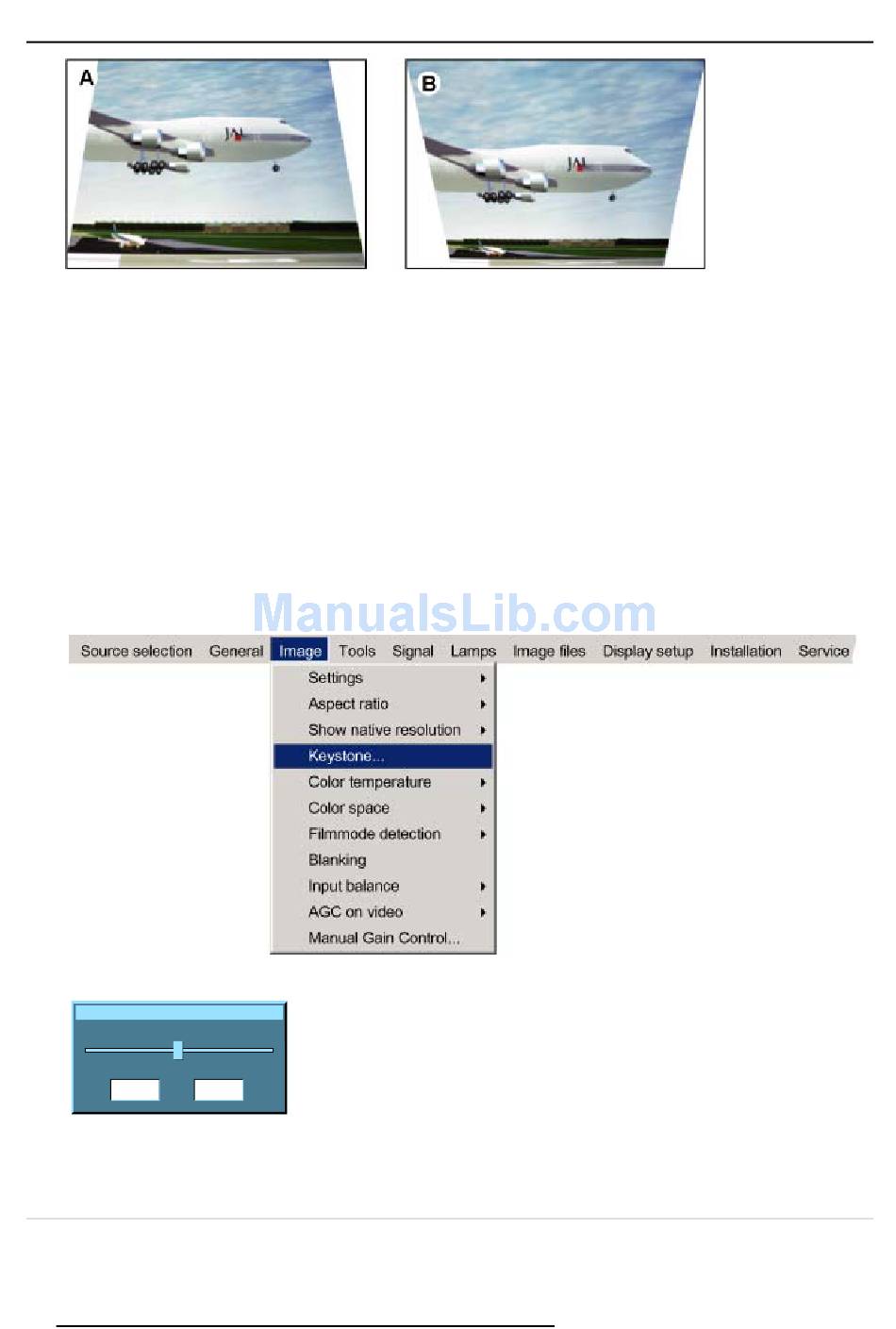

Image 8-18
Keystone adjustment
A Top adjustment of the keystone
B Bottom adjustment of the keystone
How to perform a Keystone correction ?
1. Press MENU to activate the menu bar.
2. Press → to select Image.
3. Press ↓ to pull down the Image menu.
4. Use ↑ or ↓ to select Keystone. (image 8-19)
5. Press ENTER to confirm.
A slider box is displayed . (image 8-20)
6. Use ← or → to adjust the keystone.
Or,
enter the desired value with the numeric keys.
The top and bottom adjustments affect the image differently.
Image 8-19
Keystone
Top
255
0
0
Image 8-20
8.6

Color Temperature

What can be done ?
The color temperature can be selected according to the type of source:
74
Bottom
255
0
R5976816 RLM R6+ PERFORMER 02/06/2006
