9. Tools Menu
The different PiP configurations
2
• Full screen
The full screen is used to display one of the selected sources.
Browse through the sources with the PiP Adjust button on the remote control.
2

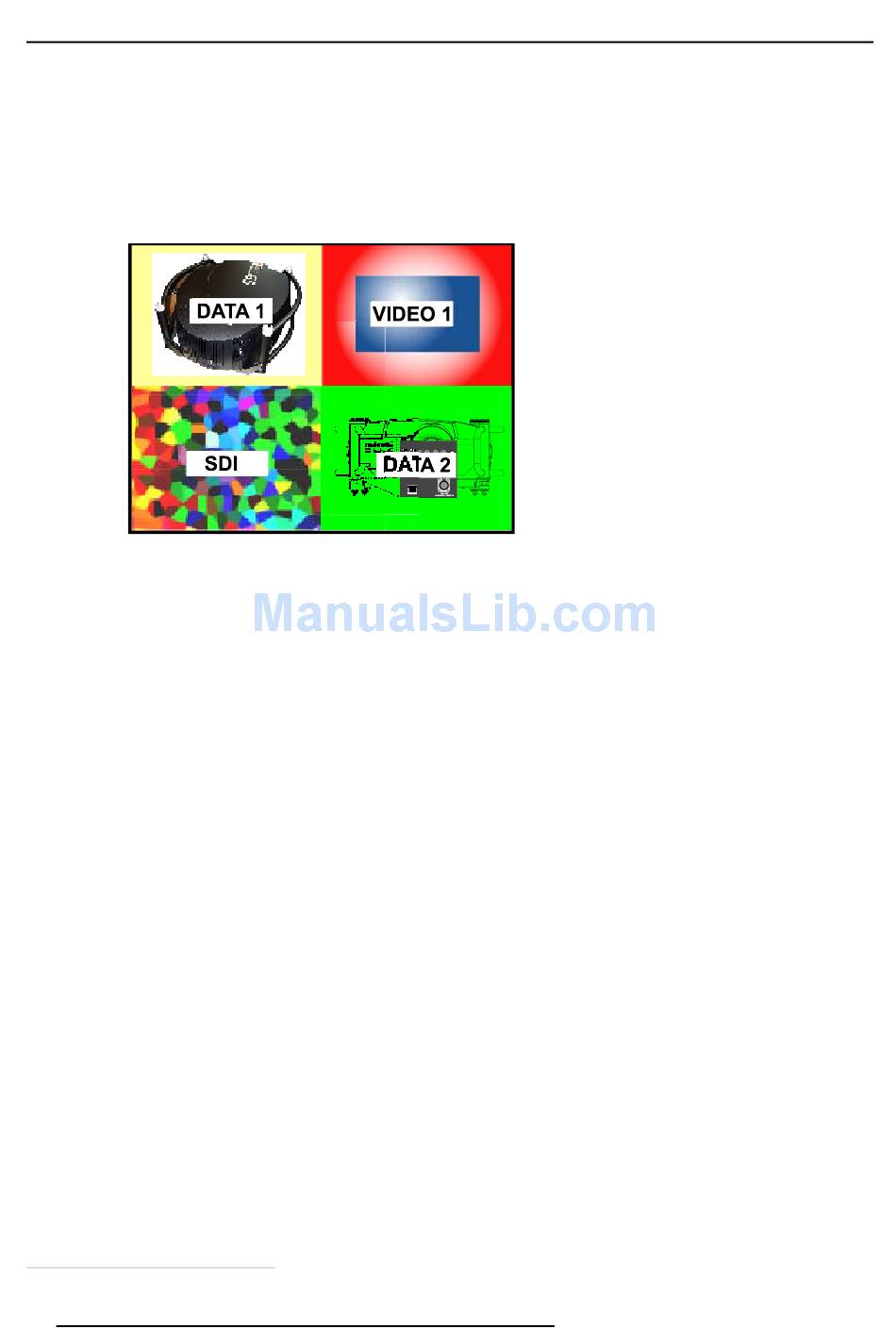

• 2-by-2 raster
The screen is divided into 4 subscreens containing 1 Video, 2 Data sources and 1 SDI source.
Image 9-1
• PiP layout 1 to 3
These are factory layouts, they can be edited and saved.
• Personal layouts
Beside the 2 fixed layouts and the 3 factory layouts, you can create 5 additional (personal) layouts.
2. fixed layout
3. factory layouts
