3. Connections
R/PR
G/Y
DVI
POWER WIRELESS
RECEIVER
10 BASE-T

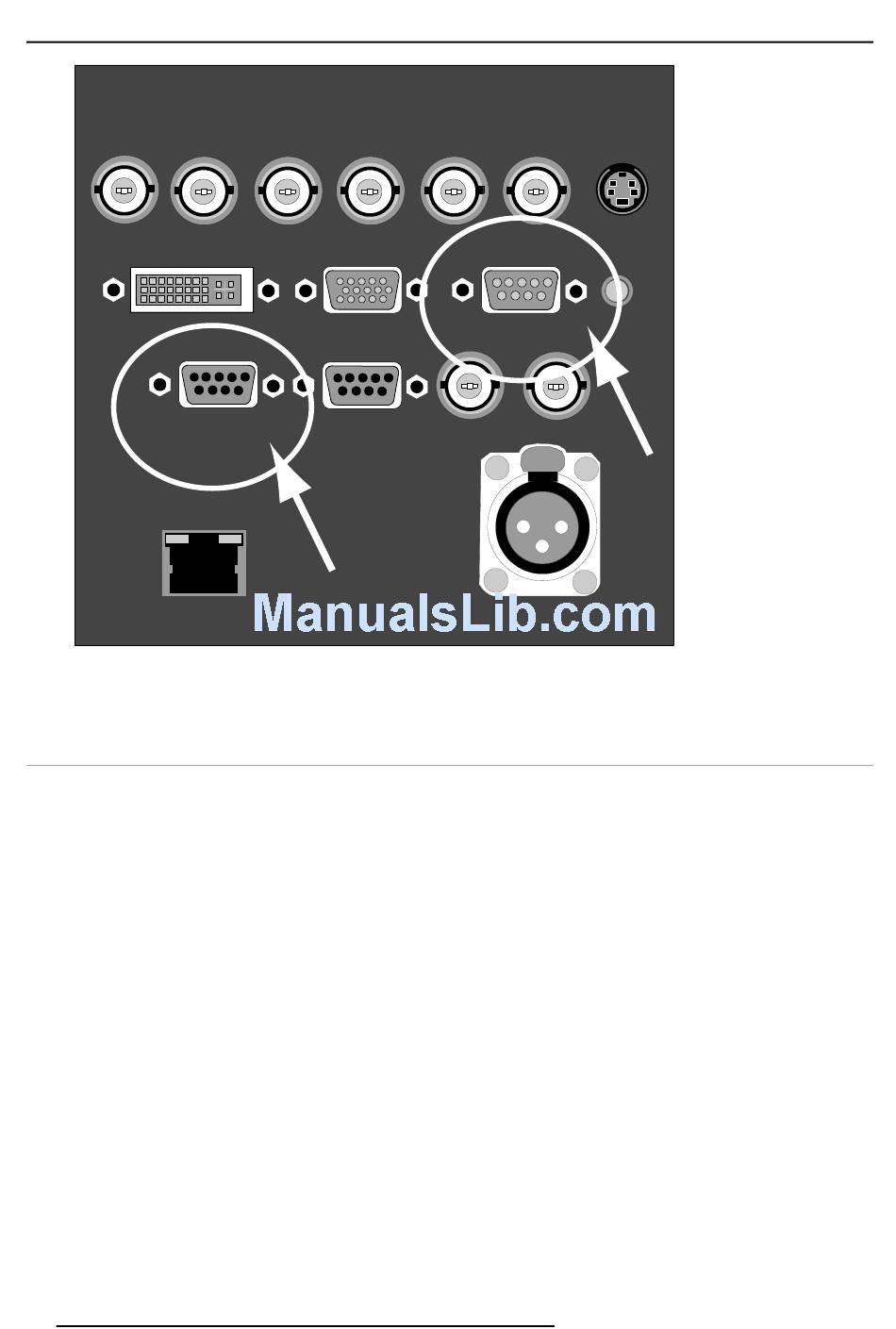

Image 3-11
Wireless receiver connection

3.10 Extended configuration

Overview
•

Introduction

•

5-cable extended configuration

• S-Video extended configuration
• Summarizing
3.10.1 Introduction
What can be done ?
The extended configuration allows to connect multiple equal source types to the inputs and allow switching between this wide range
of input signals.
3.10.2 5-cable extended configuration
What can be done ?
Beside the standard RGB, composite & sync signals, the extended capabilities of the 5-cable inputs make treatment of additional
signals possible:
• a composite video signal may be connected to 4 of the 5 BNC's (beside the standard video BNC input)
• a S-Video signal can be connected
32
B/PB Hs/Cs
ANALOG RGB
RS 232/422 (HD)SDI
OUT
Vs VIDEO S-VIDEO
R.C.
RS 232/422 IN
(HD)SDI OUT
IN
PUSH
2
1
3
TWO WAY
HARDWIRED REMOTE
R5976816 RLM R6+ PERFORMER 02/06/2006
