6. Source selection
3. Use ↑ or ↓ to select one of the different sources (Press → to pull down if the item has a submenu).
4. Press ENTER to confirm your choice.
On the screen appears now the selected source with at the same time for a few seconds a text box with source information.
(image 6-1)
Video source 1
Video
Video625.c06
Image 6-1
Source indication
6.4

Selecting a data source on the 5-cable input

What can be connected to the 5-cable input
The following source can be connected to the 5-cable input in normal mode:
• Data on BNC's
• Component Video
• RG(s)B
The position of the icon "1" will always indicate which BNC configuration is selected.
How to set the correct source
1. Press MENU to activate the menu bar.
2. Press ↓ to pull down the Source Selection menu.

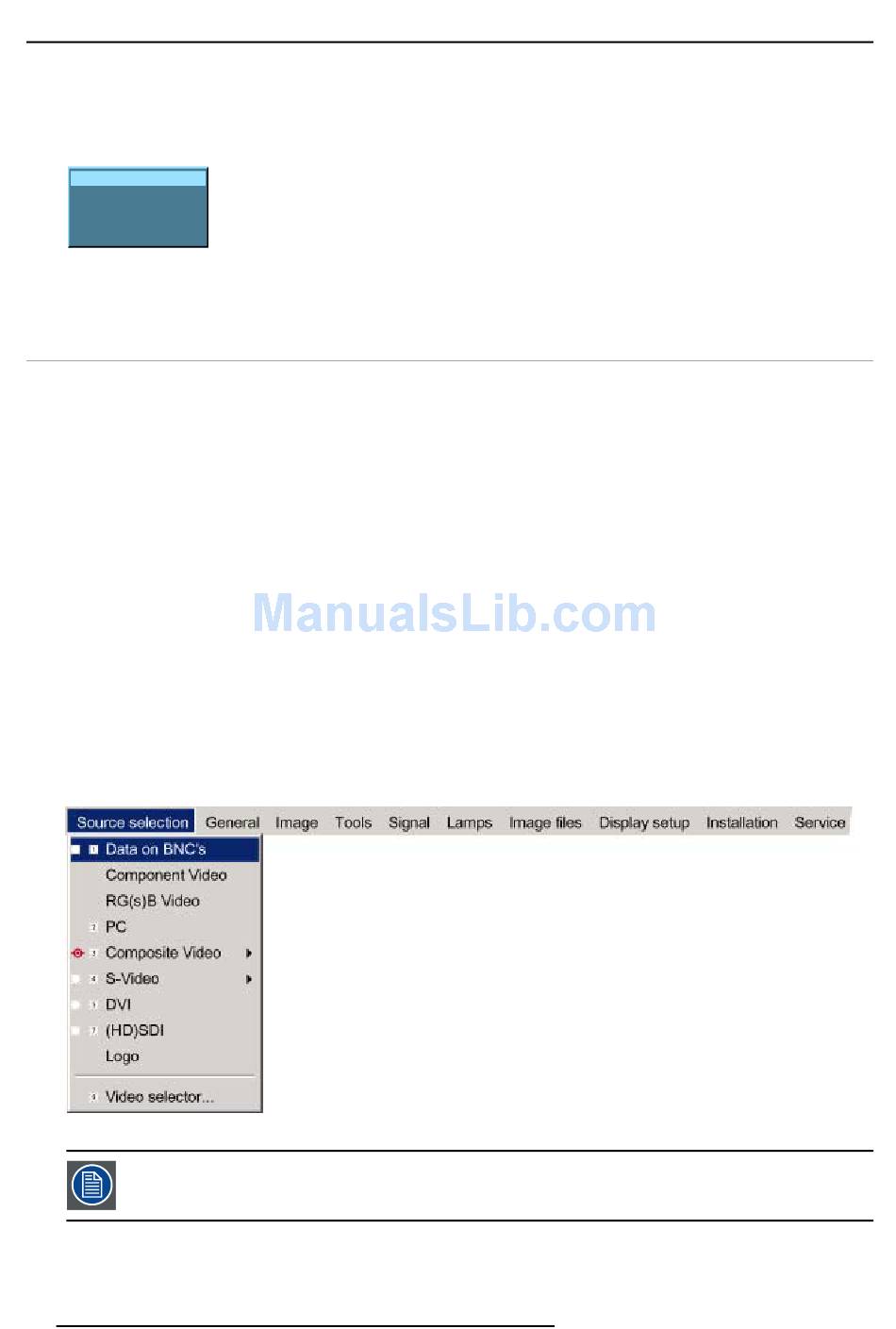

3. Use ↑ or ↓ to select one of the 3 possible sources. (image 6-2)
When to select :
DATA on BNC's
Component Video
RG(s)B Video
Image 6-2
When selecting "1" with the remote control, the predefined source type will be displayed.
52
When a data signal is connected to the BNC's
When a video signal of the type (PR/Y/PB) is connected on the BNC's
When RGB video signal with Sync on green or sync on H is connected on the BNC's.
This signal is routed to the video circuit and is projected in a Video Window.
R5976816 RLM R6+ PERFORMER 02/06/2006
