8.2

Settings

Overview
•

Contrast

• Brightness
• Color
• Tint (hue)
• Sharpness
• Gamma
• Phase
• Noise reduction
What can be done?
Correct image settings are important for a good image reproduction.
The image settings are made through a dialog box with a scroll bar. Minimal, maximal and the actual values are indicated. These
settings can also be done directly via the RCU's dedicated buttons, except for the sharpness.

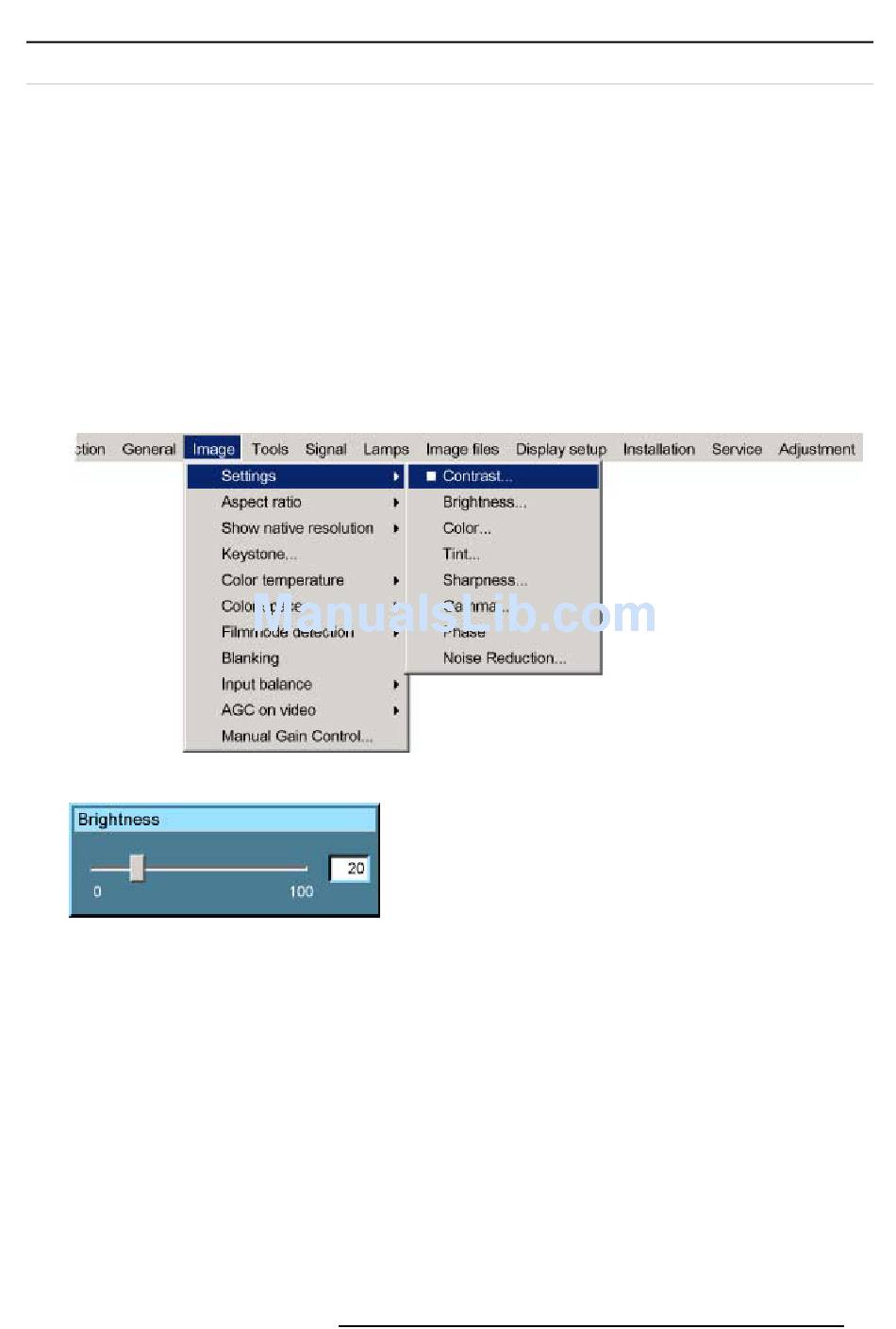

Image 8-1
Image 8-2
8.2.1 Contrast
About Contrast
The contrast function is used to adjust the contrast between the light and dark areas of the displayed image.
How to change the contrast
1. Press MENU to activate the menu bar. (image 8-3)
2. Press → to select the Image item.
3. Press ↓ to pull down the Image menu.
4. Use ↑ or ↓ to select settings.
5. Press → to pull down the menu.
6. Use ↑ or ↓ to select Contrast.
7. Press ENTER.
A slider box appears.
