Related Manuals for Barco RLM G5i Performer R9010320

Summary of Contents for Barco RLM G5i Performer R9010320

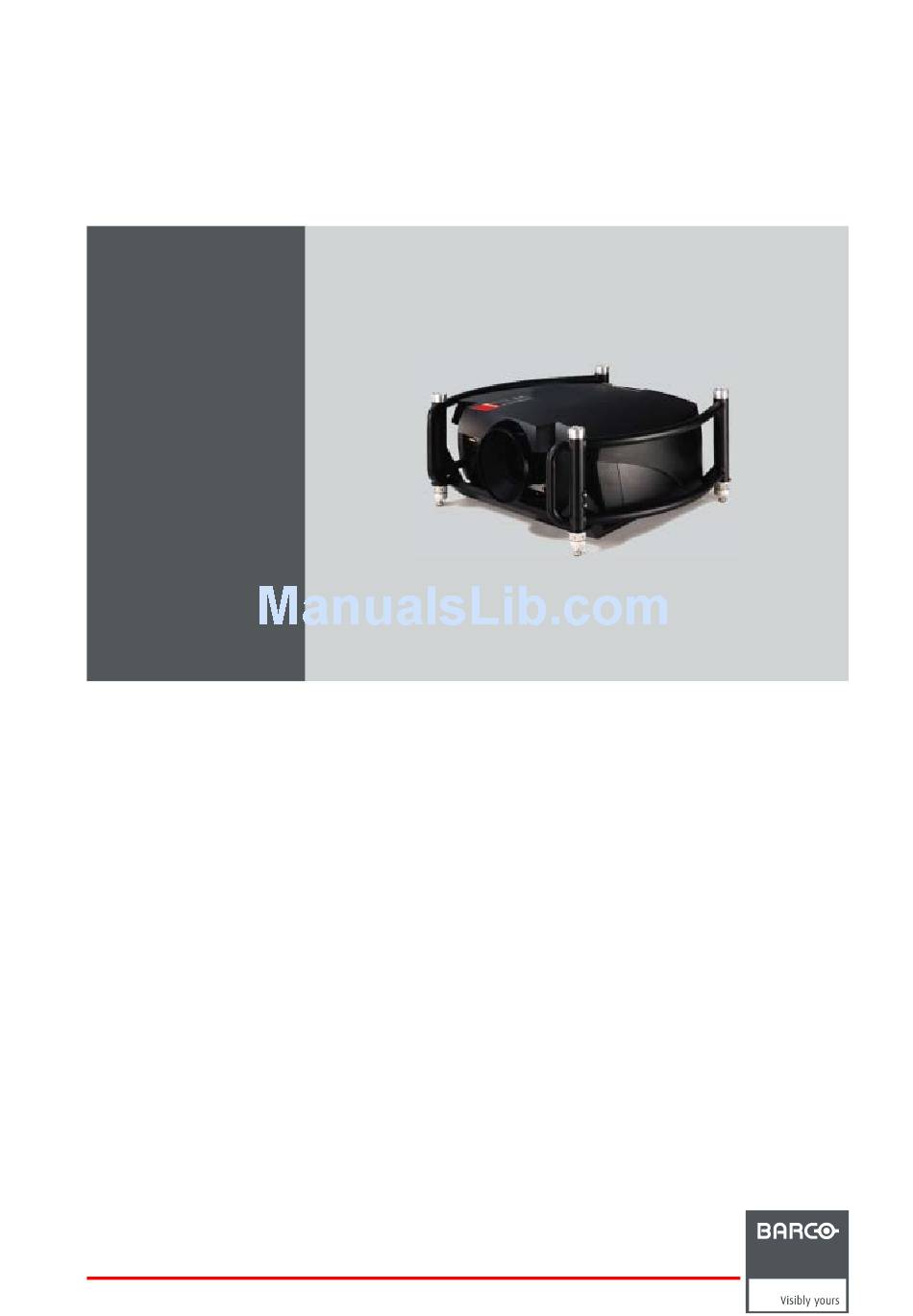

  • Page 1 RLM G5i Performer Owner’s manual R9010320 R5976815/02 02/06/2006...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: sales.events@barco.com Visit us at the web: www.barco.com Printed in Belgium...

  • Page 3: Packaging And Dimensions

    1. Packaging and Dimensions 1. PACKAGING AND DIMENSIONS Overview • Box content • Projector Packaging • Dimensions Box content CEE7 European power plug to connect the power cord to the wall outlet. ANSI 73.11 American power plug to connect the power cord to the wall outlet. Content •...
  • Page 4 1. Packaging and Dimensions PULL TO OPE Image 1-1 Image 1-2 Projector packaging Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory. R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 5: Side View

    1. Packaging and Dimensions Dimensions Side view Image 1-3 Side view Front view [27.76] 51.9 [2.04] Image 1-4 Front view R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 6: Bottom View

    1. Packaging and Dimensions Bottom view [6.69] [6.69] [2.36] 76.8 ° 27.2 [1.07] [4.72] [2.36] [4.72] [7.87] 354.5 [13.96] Image 1-5 Bottom view R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 7: Top View

    1. Packaging and Dimensions Top view 122.5 122.5 [18.11] [4.82] [4.82] 82.5 82.5 [3.25] [21.26] [3.25] [27.76] Image 1-6 Top view R5976815 RLM G5I PERFORMER 02/06/2006...
  • Page 8 1. Packaging and Dimensions R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 9: Safety Warnings

    2. Installation Guidelines 2. INSTALLATION GUIDELINES Overview • Safety Warnings • General • Projector Configuration • Safety Area around projector • Lenses • Battery Insertion in the Remote Control • Stacking projectors • Rigging points and accessories ARNING Before installing the projector, read first the safety instructions in the safety manual delivered with the projector and also the safety pages in this manual.

  • Page 10: Environment Condition Check

    2. Installation Guidelines Environment Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not excessive.
  • Page 11 2. Installation Guidelines Image 2-1 Front-Ceiling configuration Side view Top view Back view PD Distance projector - screen R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 12: Safety Area Around Projector

    2. Installation Guidelines Image 2-2 Front-Table configuration Side view Top view Back view PD Distance projector - screen Safety Area around projector Safety area Make sure the projector is located so that the air inlets and outlets for the cooling system are not obstructed. Image 2-3 Air flow, safety area R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 13: Lens Installation

    2. Installation Guidelines Lenses Overview • Lenses • Lens formulas • Lens installation • Cleaning the lens 2.5.1 Lenses Available lenses Lenses Order number RLD(0.8) R9832640 RLD(1.5-1.8) R9832642 RLD(1.8-2.25) R9832643 R9832644 RLD(2.25-3.0) RLD(3.0-4.5) R9832645 RLD(4.5-7.0) R9832646 TLD lenses can be used on the projector together with the optional Lens Adapter kit TLD/RLM (order number : R9832650).

  • Page 14: Battery Insertion In The Remote Control

    2. Installation Guidelines How to replace with another lens? Follow the next procedure: 1. Move the handle (A) of the lens anchor system to the left and take out the lens. 2. Take the new lens assembly out of its packing material and remove the lens caps on both sides. 3.

  • Page 15: How To Install The Batteries

    2. Installation Guidelines How to install the batteries 1. Push the cover tab (A) with the fingernail a little backwards and pull upwards the cover top (B). (image 2-5) 2. Slide the cover forwards to remove. (image 2-6) 3. Push the battery body towards the spring and lift it up to remove. (image 2-7) 4.
  • Page 16 2. Installation Guidelines Image 2-8 Stacking two projectors Image 2-9 Closing the rigging sockets Image 2-10 Mounting the security chain R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 17: Rigging Points And Accessories

    2. Installation Guidelines Rigging points and accessories 2.8.1 Overview Clamps Slots are made in the carry handle frame for easy inserting the overlockers and for easy adjusting the clamps position so that this position matches with the rigging points. Consult a professional structural engineer prior to suspending the ceiling mount from a structure not intended for that use. Always ensure the working load limit of the structure supporting the projector.
  • Page 18 2. Installation Guidelines Image 2-11 Mounting the clamps fixation Image 2-12 Mounting the rigging clamp R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 19: Power Connection

    3. Connections 3. CONNECTIONS Overview • Power connection • Input Source Connections • 5-Cable input • Composite Video Input • S-Video input • Digital Visual Interface (DVI) input • Computer input (RGB analog) • Serial Digital Interface • Communication connection •...

  • Page 20: Input Source Connections

    3. Connections Input Source Connections Overview • Input section • Input facilities 3.2.1 Input section Input Layers The input section is divided in layers, each of them regrouping several inputs, this architecture allows the input section to be upgraded at any time with an optional analog or digital layer. Layer 1: analog layer containing analog data and video inputs.

  • Page 21: 5-Cable Input

    3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER PUSH TWO WAY 10 BASE-T HARDWIRED REMOTE Image 3-2 Input facilities L1 Layer 1 = RGBHV + Composite Video + S-Video L2 Layer 2 = DVI + Computer + RS232IN + RC (wired remote control) L3 Layer 3 = SDI in and out + RS232OUT + Power wireless receiver L4 Layer 4 = Two way hardwired remote + Ethernet...
  • Page 22 3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN SDI IN SDI OUT RS 232/422 OUT POWER WIRELESS RECEIVER PUSH 10 BASE-T TWO WAY HARDWIRED REMOTE Image 3-3 5-cable input Component Video In Component Video the term component describes a number (3) of elements that are needed to make up the video picture, these components are R-Y/Y/B-Y.

  • Page 23: Composite Video Input

    3. Connections Component Video signals (PR/Y/PB) Some interfaces use progressive output signals with a double line frequency of 32 kHz. The video decoder used for the video signals is not appropriate for these signals since it can only handle 15 kHz signals. This signal has therefore to be internally redirected, this is done in the Source selection menu by selecting Data on BNC’s instead of Component video and by selecting Pr/Y/Pb in the advanced settings of the Image file menu.

  • Page 24: S-Video Input

    3. Connections S-Video input Input specification R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER PUSH 10 BASE-T TWO WAY HARDWIRED REMOTE Image 3-5 S-Video indication Pin configuration 4 pin connector Image 3-6 For S-Video For Video...

  • Page 25: Digital Visual Interface (Dvi) Input

    3. Connections Which signal can be connected ? Standard S-Video (S-VHS) with separate Y (luma) and C (chroma) signals. In extended mode also Composite video can be connected to the S-Video plug. How to select the S-Video input ? 1. Press 4 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu.
  • Page 26 3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER PUSH 10 BASE-T TWO WAY HARDWIRED REMOTE Image 3-7 DVI indication. DVI-I type connector analog link (4 pins at the right side of the connector) not supported. Pin assignment for the DVI connector.

  • Page 27: Serial Digital Interface

    3. Connections Computer input (RGB analog) Input specification TTL sync input : U = 2.0 V RGB input = 0.7 V ± 3dB R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER PUSH...

  • Page 28: Communication Connection

    3. Connections Input specifications SDI input : BNC SDI output : BNC (= loop through) typical : 0.8 Vpp 75Ω terminated output impedance: 75Ω R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER...

  • Page 29: Wireless Receiver

    3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN SDI IN SDI OUT RS 232/422 OUT POWER WIRELESS RECEIVER PUSH 10 BASE-T TWO WAY HARDWIRED REMOTE Image 3-10 RS232/422 communication RS232/422 IN RS232/422 OUT Applications of the RS232/422 connection Remote control: •...

  • Page 30: Extended Configuration

    3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232/422 IN RS 232/422 OUT SDI IN SDI OUT POWER WIRELESS RECEIVER PUSH 10 BASE-T TWO WAY HARDWIRED REMOTE Image 3-11 Wireless receiver connection 3.10 Extended configuration Overview • Introduction •...

  • Page 31: S-Video Extended Configuration

    3. Connections Inputs VIDEO Signals RGBHV RGBS Component S-Video S-Video Composite VIDEO Composite VIDEO Composite VIDEO Composite VIDEO Composite VIDEO Table 3-4 Extended configuration of the 5-cable input: the first column gives the possible signals, and the first row the 5 cable input connectors (+ the standard Video BNC). How to set up the 5-cable extended configuration ? 1.
  • Page 32 3. Connections How to set up the S-Video extended configuration ? 1. Connect the video sources to the desired connector (image 3-15) Note: An adapter cable is required R/PR B/PB Hs/Cs VIDEO S-VIDEO Luma Video Y Video C Chroma Image 3-15 Connecting 2 composite Video signals to the S-Video connector Multiple video signals can not be visualized simultaneously since there is only one decoder.

  • Page 33: Getting Started

    4. Getting Started 4. GETTING STARTED Overview • Terminology overview • Switching on • Lamp runtime • Switching to standby • Switching off • Temperature error DMD • Using the RCU • Projector address • Controlling the projector • Quick lens adjustment •...
  • Page 34 4. Getting Started MENU BACK ENTER LOGO PAUSE TEXT AUTO IMAGE DIGI ZOOM PHASE SB-PC TINT COLOR VIDEO S-VIDEO BRIGHTN CONTR LENS LENS ZOOM SHIFT LENS FOCUS Image 4-1 Led 1 Led 2 Led 3 Image 4-2 R5976815 RLM G5I PERFORMER 02/06/2006...
  • Page 35 4. Getting Started Key name Description Function keys user programmable keys with functions for direct access. MENU Menu key, to enter or exit the Tool bar menu. Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with a pencil, followed by pressing one digit button between 0 and 9.

  • Page 36: How To Switch On

    The total lifetime of the lamp (single lamp) for a safe operation is x hours max., do not use it longer. Always replace with a same type of lamp. Call a Barco authorized service technician for lamp replacement. Lamp management when the lamp runtime is reached in the different lamp modes is indicated in the next image.

  • Page 37: Switching To Standby

    ARNING Using a lamp for more than x hours is dangerous as the lamp could explode. The lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. Switching to standby How to switch to standby? 1.

  • Page 38: Using The Rcu

    4. Getting Started Ambient temperature range within the operating temperature range of the DMD is situated : +10°C and +40°C. Using the RCU Pointing to a reflective screen 1. Point the front of the RCU to the reflective screen surface. (image 4-5) IR Sensor (C) Remote Control (A) Screen (B)
  • Page 39 4. Getting Started Image 4-7 Stereo jack pin configuration tip: Left channel ring: right channel screen: common (GND) external switch Stereo jack Mono jack The Remote connection uses a standard two wire cable terminated on each end with a 3.5 mm male (mono/stereo) phone jack.

  • Page 40: Projector Address

    4. Getting Started Image 4-9 Two way hard-wired remote Projector address Overview • Address setting • Displaying and Programming addresses into the RCU 4.8.1 Address setting Projector address Address installed in the projector to be individually controlled. Common address Default address. Projector will always execute the command coming from a RCU programmed with that common address.

  • Page 41: Controlling The Projector

    4. Getting Started 4.8.2 Displaying and Programming addresses into the RCU Displaying the Projector Address on the Screen. 1. Press the Address key (recessed key on the RCU) with a pencil. The projector’s address will be displayed in a ’Text box’ To continue using the RCU with that specific address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key.

  • Page 42: The Pause Key

    4. Getting Started Brightness Use the + button for a higher brightness. Use the - button for a lower brightness. Contrast Use the + button for a higher contrast. Use the - button for lower contrast. Color Use the + button for richer colors. Use the - button for lighter colors.

  • Page 43: Lens Adjustment Via Menu Bar

    4. Getting Started Lens adjustment Lens adjustment for vertical shift for horizontal shift Press <enter> for ZOOM/FOCUS Press <LOGO> or <LENS> for vertical shift for test pattern for horizontal shift Press <enter> for ZOOM/FOCUS Press <LOGO> or <LENS> for test pattern Lens adjustment for zoom Lens adjustment...

  • Page 44: Digital Zoom

    4. Getting Started 4.10.3 Direct Lens Adjustment (RCU) Lens adjustment button on the Remote Control On the Remote Control three buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS and VER- TICAL SHIFT. For Horizontal Shift, some projectors use the VOL button. 1.

  • Page 45: Quick Picture In Picture Selection

    4. Getting Started Image 4-16 Digital zoom Normal image Digital zoom out Digital zoom in Panning of the zoomed image To return to the normal image, press MENU, go to Tools, select PiP select and check Full screen. 4.12 Quick Picture in Picture selection Quick selection 1.
  • Page 46 4. Getting Started R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 47: Getting Used With The Menu Structure

    5. Getting used with the menu structure 5. GETTING USED WITH THE MENU STRUCTURE Overview • How to start up the menus • Using the menu • Using the Dialog boxes • Using the menus via the built-in LCD panel How to start up the menus PC like menu structure The RLM G5i Performer has a build in “PC like”...

  • Page 48: Using The Dialog Boxes

    5. Getting used with the menu structure How to pull down a menu ? 1. Use ↓ to pull down a menu. How to pull down a submenu ? 1. Use → to pull down a submenu. How to exit the submenu ? 1.

  • Page 49: Using The Menus Via The Built-In Lcd Panel

    5. Getting used with the menu structure In some cases an alphanumeric value (file name, ...) has to be entered. Use ↑ or ↓ to scroll through the char- acter values once the input field is activated. Following characters can be browsed in this particular order: Decimal scroll list: 0123456789 Signed decimal scroll list: 0123456789- ASCII scrolllist:ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-*/&@#.;.abcdefghijklmnopqrstuvwxyz...
  • Page 50 5. Getting used with the menu structure R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 51: Source Selection Overview

    6. Source Selection 6. SOURCE SELECTION Overview • Source Selection overview • The use of icons • Source selection • Selecting a data source on the 5-cable input • Composite Video • S-Video selection • The Video Selector Source Selection overview Source selection overview •...

  • Page 52: Selecting A Data Source On The 5-Cable Input

    6. Source Selection 3. Use ↑ or ↓ to select one of the different sources (Press → to pull down if the item has a submenu). 4. Press ENTER to confirm your choice. On the screen appears now the selected source with at the same time for a few seconds a text box with source information. (image 6-1) Video source 1 Video...

  • Page 53: Composite Video

    6. Source Selection Composite Video Possible connections In normal mode, one video source can be connected to the video input. In extended mode, up to 7 different video sources can be connected to the normal video input, or to the extended 5-cable input or to the S-Video.

  • Page 54: The Video Selector

    6. Source Selection 2. Press ↓ to pull down the Source Selection menu. 3. Use ↑ or ↓ to select S-Video. 4. Press → to pull down the submenu. 5. Use ↑ or ↓ to select one of the different S-Video inputs. (image 6-4) 6.

  • Page 55: Graphical Interface

    6. Source Selection Image 6-5 How to select an input on the Video Selector 1. Use ← or → to browse through the different inputs. 2. Press ENTER to select. Use MENU or BACK to exit the Video Selector. Graphical interface Image 6-6 A BNC or S-Video connector on the video selector can be in one of following conditions: •...
  • Page 56 6. Source Selection R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 57: General Menu Overview

    7. General Menu 7. GENERAL MENU Overview • General Menu overview • Pause • Freeze • Standby Timer • Identification General Menu overview General Menu structure • Pause • Freeze • Standby timer... • Identification Pause Interrupting the image projection With the Pause function, the image projection can be stopped, the projector remains with full power for immediate restart.

  • Page 58: Standby Timer

    7. General Menu How to freeze the image ? 1. Press MENU to activate the menu bar. 2. Press → to select General. 3. Press ↓ to pull down the General menu. 4. Use ↑ or ↓ to select Freeze. (image 7-2) 5.
  • Page 59 7. General Menu Image 7-4 Image 7-5 Identification The projector’s identification screen The identification screen displays the projector’s main characteristics These are: • Projector type • Projector address • Software version controller unit • RS232 Baudrate • Serial number of projector How to display the identification screen ? 1.
  • Page 60 7. General Menu Image 7-7 R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 61: Image Menu

    8. Image Menu 8. IMAGE MENU Overview • Image menu overview • Settings • Aspect ratio • Show native resolution • Keystone correction • Color Temperature • Filmmode detection • Blanking • Input Balance • AGC on Video • Manual Gain Control R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 62: Image Menu Overview

    8. Image Menu Image menu overview Overview • Settings Contrast Brightness Color Tint Sharpness Gamma Phase Noise Reduction • Aspect ratio Auto [4:3] [16:9] [5:4] [2.35] [2.88] [1.78] Custom • Show native resolution • Keystone... • Color temperature Projector white Computer Video Film...
  • Page 63 8. Image Menu Settings Overview • Contrast • Brightness • Color • Tint (hue) • Sharpness • Gamma • Phase • Noise reduction What can be done? Correct image settings are important for a good image reproduction. The image settings are made through a dialog box with a scroll bar. Minimal, maximal and the actual values are indicated. These settings can also be done directly via the RCU’s dedicated buttons, except for the sharpness.

  • Page 64: How To Change The Brightness

    8. Image Menu The higher the value, the higher the contrast. click in the input box and enter the desired value with the numeric keys. Image 8-3 8.2.2 Brightness About Brightness The Brightness function is used to adjust the overall light output. How to change the Brightness ? 1.
  • Page 65 8. Image Menu 8.2.3 Color About Color setting The color function is used to adjust color saturation levels. How to change the Color ? 1. Press MENU to activate the menu bar. (image 8-5) 2. Press → to select the Image item. 3.
  • Page 66 8. Image Menu Image 8-6 8.2.5 Sharpness About Sharpness The sharpness function is used to adjust the image sharpness of video signals. How to change the sharpness ? 1. Press MENU to activate the menu bar. (image 8-7) 2. Press → to select the Image item. 3.
  • Page 67 8. Image Menu How to change the Gamma 1. Press MENU to activate the menu bar. (image 8-8) 2. Press → to select the Image item. 3. Press ↓ to pull down the Image menu. 4. Use ↑ or ↓ to select settings. 5.

  • Page 68: Noise Reduction

    8. Image Menu 6. Use ↓ or ↑ to select Phase. 7. Press ENTER . A slider box appears. 8. Use ← or → to change the Phase and refine the jitter. click in the input box and enter the desired value with the numeric keys. Note: Don’t mix up with wrong number of total pixels.

  • Page 69: Aspect Ratio

    8. Image Menu Image 8-11 Aspect ratio Aspect ratio is greyed out when the Full Screen Representation function in Display Setup is switched ON or when the Show Native Resolution function in Image is switched ON. What can be done ? The aspect ratio setting forces the projector to project an image using a defined aspect ratio Aspect ratio Description...

  • Page 70: How To Change The Aspect Ratio

    8. Image Menu 16/9 Auto Video Signal Pal/Secam Video Signal NTSC Video Signal 16/9 RGB Signal Image 8-12 Some examples for aspect ratio How to change the Aspect ratio ? 1. Press MENU to activate the menu bar. (image 8-13) 2.
  • Page 71 8. Image Menu Image 8-13 How to set up a custom Aspect ratio ? 1. Press MENU to activate the menu bar. (image 8-14) 2. Press → to select Image. 3. Press ↓ to pull down the Image menu. 4. Use ↑ or ↓ to select Aspect ratio. 5.

  • Page 72: Show Native Resolution

    8. Image Menu Show native resolution Show native resolution overrules the Full Screen Representation function in Display Setup. Show native resolution is greyed out for video signals. Digital Micromirror Device What can be done The aim here is to always show the resolution of the source independently of the resolution of the DMD panels. Image 8-16 When the show native resolution function is in the ON position, the projector handles the source as follows: Source...

  • Page 73: Keystone Correction

    8. Image Menu 6. Use ↓ or ↑ to select On. 7. Press ENTER . A white bullet shows the selection. Image 8-17 When Show Native Resolution is in the ON position, scrolling of the image is possible with the arrow keys on the remote control.

  • Page 74: Color Temperature

    8. Image Menu Image 8-19 Keystone Bottom Image 8-20 Color Temperature What can be done ? The color temperature can be selected according to the type of source: There are 6 different preset color temperatures: • Projector white • computer : 9300 K •...
  • Page 75 8. Image Menu 5. Press → to pull down the menu. 6. Use ↓ or ↑ to select the desired preset color temperature. 7. Press ENTER to confirm. The color temperature of the image is adapted and a white bullet shows the active setting in the menu bar. Image 8-21 How to store a customer created color temperature on Custom Preset? 1.
  • Page 76 8. Image Menu Change between x and y with <COLOR> Image 8-24 1000 Image 8-23 the x and y coordinate changes between 0.00 and 1.00. For practical reasons, the values on the slider box are multiplied by 1000. How to start up the custom color temperature ? 1.

  • Page 77: Filmmode Detection

    8. Image Menu Filmmode detection What can be done ? Some sources like common DVD material are derived from cinema 24 Hz sources (2/2 or 3/2 pull down method). The filmmode detection insures that these converted signals are shown without artefacts. This function may cause undesired effects on standard sources, therefore it can be disabled (OFF) at any time 2:2 pull-down The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two...

  • Page 78: Adjusting The Blanking

    8. Image Menu Blanking What can be done ? Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on the screen and to hide or black out unwanted information (or noise). A ’0’ indicates no blanking. Which blanking adjustments are available ? •...

  • Page 79: Input Balance

    8. Image Menu 7. Use the ↑ or ↓ keys to select Top, Bottom, Left or Right blanking and change the value with ← or → until the desired blanking is obtained. use the ↑ or ↓ keys to select Top, Bottom, Left or Right blanking and press ENTER to change the value indication to a input field and enter a new value with the keyboard.

  • Page 80: Black Level

    8. Image Menu In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 8-33 , we are quite sure that the amplitude of these color signals is subject to alterations. An example of alteration may be a DC component added to the signal, in the form of a DC offset repositioning the black level, since this black level (“brightness”) will become crucial later on (clamping circuit) it will result in “black not being black”.

  • Page 81: Adjusting The Input Balance

    8. Image Menu Black level setting : brightness White level setting : contrast The same absolute black and white level for the three colors allow the same reference for Brightness and contrast control of the picture ! These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file).

  • Page 82: Black Balance

    8. Image Menu Black balance 1. Press MENU to activate the menu bar. 2. Press → to select the Image item. 3. Press ↓ to pull down the Image menu. 4. Use ↑ or ↓ to select Input balance. 5. Press → to pull down the menu. 6.

  • Page 83: Input Balance For Yprpb Signals

    8. Image Menu 6. Use ↑ or ↓ to select Input balance. 7. Press → to pull down the menu. 8. Use ↓ or ↑ to select White balance. (image 8-41) 9. Adjust the Red white level (gain) on a minimal value. (image 8-42) 10.Adjust the blue white level (gain) on a minimal value Note: This minimal value is not necessary , provided that the 2 other colors are not influencing too much the color to be adjusted, in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the transition...

  • Page 84: Agc On Video

    8. Image Menu Input balance is also available for a component video source under following conditions: • A component video signal is present on the BNC’s. • ”Data on BNC’s” is selected in the Source selection menu. • Pr/Y/Pb is selected in the Advanced menu of the corresponding image file. The procedure is the same as for a data source except: •...

  • Page 85: Manual Gain Control

    8. Image Menu 5. Press → to pull down the menu. 6. Use ↓ or ↑ to enable or disable the AGC. 7. Press ENTER to confirm. (image 8-45) A white bullet shows the active setting. Image 8-45 The AGC can be disturbing in case of Macrovision encoded signals, therefore the AGC can be disabled (OFF) at any time 8.11 Manual Gain Control What can be done ?
  • Page 86 8. Image Menu Image 8-46 Image 8-47 R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 87: Overview Of The Tools Menu

    9. Tools Menu 9. TOOLS MENU Overview • Overview of the Tools menu • Introduction to PiP • PiP select • PiP add window • PiP remove window • PiP layout • PiP Adjust Overview of the Tools menu Overview •...
  • Page 88 9. Tools Menu The different PiP configurations • Full screen The full screen is used to display one of the selected sources. Browse through the sources with the PiP Adjust button on the remote control. • 2-by-2 raster The screen is divided into 4 subscreens containing 1 Video, 2 Data sources and 1 SDI source. Image 9-1 •...

  • Page 89: Pip Select

    9. Tools Menu PiP dedicated buttons • PiP Adjust : this button allows to focus on one particular window, this window is shown with a white frame surrounding the selected window. A source identification box is displayed in the right lower corner. Image 9-2 Press PiP Adjust button to move the frame to the next window.

  • Page 90: Pip Add Window

    9. Tools Menu Image 9-3 PiP add window What can be done ? It is possible to add a window to the existing windows (maximum 4), therefore a source must be selected. Sources which are already used are not selectable. If for instance the PiP layout contains a component video then component video will be not selectable.

  • Page 91: Pip Remove Window

    9. Tools Menu 9. Change the viewing order of the displayed images (z-order) with the ↑ and ↓ . (image 9-10) Image 9-5 Pip Wizard step 1 : Select the source you want to display in the window... Source selection Image 9-7 Data on BNC's Video selector...

  • Page 92: Pip Layout

    9. Tools Menu Image 9-11 Select window with <PiP ADJUST> Press <ENTER> to remove Image 9-12 PiP layout Overview • PiP Save • PiP rename layout • PiP delete layout 9.6.1 PiP Save What can be done ? The active layout can be saved or "saved as". When a new layout is saved it is added to the PiP select menu.

  • Page 93: Pip Rename Layout

    9. Tools Menu Image 9-13 Save PiP layout Message Layout name: Current layout has been saved Press <ENTER> or <EXIT> to return Full-screen Image 9-14 Image 9-15 9.6.2 PiP rename layout What can be done ? The non fixed layouts (factory and personal layouts) can be renamed . The maximal length of the name is 12 characters.

  • Page 94: Pip Adjust

    9. Tools Menu Rename PiP layout Rename PiP layout New name: PIP Layout 1 Own layout 1 PIP Layout 2 PiP Layout 3 Image 9-18 Own layout 1 Own layout 2 Image 9-17 9.6.3 PiP delete layout What can be done ? The non fixed layouts (factory and personal layouts) can be deleted.
  • Page 95 9. Tools Menu This can also be done by using the dedicated PiP Adjust key on the RCU Image 9-20 PiP adjust in case of 2-by-2 layout Data1 window has the focus, new settings will only affect Data1 window Video1 window has the focus, new settings will only affect Video1 window PiP adjust 1.
  • Page 96 9. Tools Menu R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 97: Overview Of The Signal Menu

    10. Signal menu 10. SIGNAL MENU Overview • Overview of the Signal menu • Switching mode • Output Frame rate • Background 10.1 Overview of the Signal menu Overview • Switching mode Seamless Box in Box out Shift in left Shift in right Shift in top Shift in bottom...
  • Page 98 10. Signal menu Image 10-1 The Random mode will select a new switching mode at each source switching i.e. there will never be 2 suc- cessive source switchings with the same effect. The Seamless switching mode is not used in the Random mode. Note on Fade in/out In some cases, depending on the sources to be switched, the fade in/out effect is impossible or may not occur.

  • Page 99: Output Frame Rate

    10. Signal menu Image 10-2 Video may be Composite video/ S-Video / SDI • dark arrow : fade in/out effect possible • dotted arrow : undetermined case, fade in/out effect may take place or not • striked out arrow : fade effect impossible The switching effects are only possible in the full screen mode 10.3 Output Frame rate What can be done ?
  • Page 100 10. Signal menu 4. Use ↑ or ↓ to select Output frame rate. 5. Press → to pull down the menu. 6. Use ↑ or ↓ to select the desired frame rate. The following choices are possible: synchronous : the output follows the input frame rate. 50 Hz : output is always displayed with a frame rate of 50 Hz 60 Hz : output is always displayed with a frame rate of 60 Hz 7.

  • Page 101: Overview Of The Lamps Menu

    11. Lamps Menu 11. LAMPS MENU Overview • Overview of the Lamps menu • Runtimes • Mode • Economic ON/OFF • Runtime warning 11.1 Overview of the Lamps menu Overview • Runtimes... • Mode Single... Dual... • Economic • Runtime warning 11.2 Runtimes How to display the lamp runtimes ? 1.
  • Page 102 11. Lamps Menu 11.3 Mode Single lamp mode The projector will always switch to the lamp with the shortest runtime when the difference between the runtimes of lamp 1 and lamp 2 reaches 100 hours, switching from one lamp to another happens only at switching on of the projector and not during operation. When the lamp fails or reaches its maximum runtime the projector switches automatically to the other lamp without interrupting the projection.

  • Page 103: Economic On/Off

    11. Lamps Menu Image 11-4 When switching from the dual mode to the single mode the lamp with the longest runtime is switched off. If the runtimes are equal (if the projector has always been operated in dual mode) then lamp 1 is switched out. When switching to single mode, returning to the dual mode will not be possible in the first 60 seconds, Dual in the menu is greyed out and LED3 is flickering, thereby preventing hot restrike which may damage the lamp.
  • Page 104 8. Press Back to return. Image 11-6 Lamp runtime warning hrs before end of lamp lifetime Image 11-7 ARNING Lamp replacement should be done by a Barco authorized technician. R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 105: Overview Of The Image Files Menu

    12. Image Files Menu 12. IMAGE FILES MENU Overview • Overview of the Image Files Menu • Introduction to image files • Load file • File selection • Auto Image • Edit file • Rename file • Copy • Delete •...

  • Page 106: Possible File Manipulations

    12. Image Files Menu Possible file manipulations The possible file manipulations are : • Load : installation of a file for a new source • Edit : editing a loaded file to match the source specifications • Rename : renaming a file •...

  • Page 107: File Selection

    12. Image Files Menu What to do if the image is not perfect ? If the displayed image is not correct after AutoImage or after selecting the best fitting file, go to the Edit menu, select the active file and change the settings. 12.4 File selection How to set the filter ? 1.

  • Page 108: Editing A File

    12. Image Files Menu Image 12-4 The Auto Image setup in the Display setup menu affect only Auto Image if it is launched via the RCU key or at automatic file creation. Launching AutoImage via the menu involves complete checking of all parameters. Auto Image can also be launched via the RCU with the dedicated AutoImage key.

  • Page 109: Correct File Parameters

    12. Image Files Menu Image 12-5 Edit custom file Edit custom file Name Video625.c01 Video625.c01 Horizontal: Video625.c02 total active start Active files: period Video625.c01 Vertical: total active Image 12-6 start Advanced Image 12-7 It is recommended to use the default values. 12.6.2 Correct file parameters What is already available during start up ? During the installation of a file with LOAD, the horizontal period, the total number of vertical lines and the interlaced mode are...

  • Page 110: Advanced Data Settings

    12. Image Files Menu Advanced edit video signal video signal frame blanking Comb filter AGC hold interval Short Long egalisation Sync locking Slow Fast Sharpness Coarse Fine Image 12-9 HI AGC Hold interval Image 12-8 The Comb filter is by default enabled. The AGC hold interval is the time interval in which the AGC is inhibited (AGC hold = no update in video amplitude measurement), the advanced parameter allows to choose a short or long hold interval.

  • Page 111: How To Rename A File

    12. Image Files Menu • a progressive signal (32 kHz frequency video signal ) is connected to the BNC’s (select the source with Data on BNC’s in the Source selection menu). • one wants (in PiP mode) to visualize the component video signal in a Data window hereby adding a video image in the PiP layout.
  • Page 112 12. Image Files Menu 12.8 Copy How to copy a file ? 1. Press MENU to activate the menu bar. 2. Press → to select the Image files item. (image 12-15) 3. Press ↓ to pull down the Image files menu. 4.

  • Page 113: How To Delete A File

    12. Image Files Menu How to delete a file ? 1. Press MENU to activate the menu bar. 2. Press → to select the Image files item. (image 12-18) 3. Press ↓ to pull down the Image files menu. 4. Use ↑ or ↓ to select delete. 5.
  • Page 114 12. Image Files Menu The projector will switch the file when the source settings change. The projector stays on its active file even when the settings of the source change. Image 12-20 12.11 Zoom-Focus The Zoom-Focus setting is only valid when the projector is equipped with TLD lenses. What can be done ? When TLD lenses are used, it is possible to store the zoom and focus setting for each file separately.

  • Page 115: Display Setup

    13. Display Setup 13. DISPLAY SETUP Overview • Startup screen • TextBox • Take screenshot • Menu bar position • Status bar position • Sliderbox position • Auto Image Setup • Scenergix 13.1 Startup screen What can be done ? When the startup screen is enabled, the identification screen is displayed for a few seconds at startup.

  • Page 116: How To Take A Screenshot

    13. Display Setup 3. Press ↓ to pull down the Display setup menu. 4. Use ↑ or ↓ to select Textbox. 5. Press → to pull down the menu. 6. Use ↓ or ↑ to enable/disable the textbox. 7. Press ENTER. Image 13-2 To enable the menus and dialog boxes again, press the TEXT button on the RCU.

  • Page 117: Menu Bar Position

    13. Display Setup Take screenshot Screenshot This will erase your current logo Erasing logo Are you sure to proceed? Saving logo Image 13-4 Image 13-5 Override message Screenshot Erasing logo Saving logo Image 13-6 13.4 Menu bar position What can be done ? The menu bar can be centered vertically.

  • Page 118: Status Bar Position

    13. Display Setup 13.5 Status bar position What can be done ? The status bar (wizard menu) can be centered vertically. The range is from the bottom of the screen to the middle of the screen. Image 13-9 Status bar position This is useful in applications where the bottom image content is not displayed (e.g.

  • Page 119: Auto Image Setup

    13. Display Setup Image 13-11 Sliderbox position X position : 619 Y position : 618 Press <ENTER> for fine adjustment Image 13-12 There is a coarse and a fine adjustment of the position, use ENTER (when sliderbox is displayed) to switch between the two.
  • Page 120 13. Display Setup Image 13-13 Image 13-14 How to perform Auto Image ? 1. press Auto Image on the RCU A text box showing a progress bar is displayed. (image 13-15) Image 13-15 During the AUTO IMAGE measuring process the data source disappears temporarily. 13.8 Scenergix Overview •...
  • Page 121 13. Display Setup 13.8.1 Introduction Why ScenergiX ? When working in a multichannel setup the RLM G5i Performer and its Soft Edge possibilities enable an image blending that gives the appearance of a single view, thus achieving realistic immersion for the majority of wide screen applications. Image 13-16 Why Soft Edge? What is the Basic Principal of ScenergiX ?
  • Page 122 13. Display Setup 13.8.3 ScenergiX overlap zone (horizontal scenergix) Definitions Image 13-18 Scenergix set up Overlap : number of pixels that overlap Horizontal resolution of 1 projector : 1024 for Graphics versions, 1280 for Reality versions, 1400 for SXGA projectors. Total horizontal screen resolution : [(horizontal resolution of 1 projector) x 2] minus overlap.

  • Page 123: Scenergix Border Adjustment

    13. Display Setup 13.8.4 ScenergiX overlap zone (vertical scenergix) Definitions Image 13-19 Scenergix overlap zone vertical Overlap : number of pixels that overlap Vertical resolution of 1 projector : 768 for Graphics versions, 1024 for Reality versions, 1050 for SXGA projectors. Total vertical screen resolution : [(Vertical resolution of 1 projector) x 2] minus (overlap) Vertical Resolution source : number of active lines of the source Adjustment of Active lines (Lact) of the first projector...

  • Page 124: Adjusting With The Arrow Keys

    13. Display Setup 3. Press ↓ to pull down the Display setup menu. 4. Use ↑ or ↓ to select ScenergiX. 5. Press → to select the ScenergiX item. 6. Use ↑ or ↓ to select Border. 7. Press ENTER to select. A dialog box will be displayed.

  • Page 125: Black Level Of The Images

    13. Display Setup Image 13-22 Width set up for projector 1 Image 13-23 Width set up for projector 2 Adjusting by entering the exact values. 1. When on an adjustable item, the input box background will be colored. Press ENTER. The value will change to a 3 digit value and the first digit is selected.
  • Page 126 13. Display Setup 2. Press → to select the Display setup item. (image 13-24) 3. Press ↓ to pull down the Display setup menu. 4. Use ↑ or ↓ to select ScenergiX. 5. Press → to select the ScenergiX item. 6.

  • Page 127: Installation Menu

    14. Installation menu 14. INSTALLATION MENU Overview • Lens adjustments • Projector address • Orientation • Language • Quick access keys • RS232 baudrate • Automatic startup • Security 14.1 Lens adjustments What can be done ? Motorized lenses can be adjusted in the installation menu or via the dedicated keys on the remote (see chapter “Getting Started”, “Quick lens adjustment”).

  • Page 128: What Can Be Changed

    14. Installation menu Image 14-1 Lens adjustment Lens adjustment for zoom for vertical shift for focus for horizontal shift Press <enter> for SHIFT mode Press <enter> for ZOOM/FOCUS Press <LOGO> or <LENS> Press <LOGO> or <LENS> for test pattern for test pattern Image 14-2 Image 14-3 14.2 Projector address...

  • Page 129: How To Change The Common Address

    14. Installation menu Image 14-4 Image 14-5 Image 14-6 How to change the common address ? 1. Press MENU to activate the menu bar. 2. Press → to select the Installation. (image 14-7) 3. Press ↓ to pull down the Installation menu 4.

  • Page 130: How To Change The Language

    14. Installation menu 14.3 Orientation Projector orientations Depending on how the projector is oriented, the projector’s internal settings have to be adapted. See also Chapter “Installation”, “Orientation”. How to change the orientation ? 1. Press MENU to activate the menu bar. 2.

  • Page 131: Quick Access Keys

    14. Installation menu Image 14-11 14.5 Quick access keys What can be done ? The 3 function keys on top of the RCU (F1, F2 and F3) can be associated with a particular item in one of the menus. Each function which is not password protected can be associated to a function key. How to get an overview of the quick access keys ? 1.

  • Page 132: How To Change The Baudrate

    14. Installation menu The menu item is stored behind the quick access key. The message Quick Access key stored will be displayed. 14.6 RS232 baudrate How to change the baudrate? 1. Press MENU to activate the menu bar. 2. Press → to select the Installation item. (image 14-14) 3.
  • Page 133 14. Installation menu Automatic startup enabled Automatic startup disabled 7. Press ENTER to confirm. Image 14-15 14.8 Security What can be done ? A security function is implemented in the projector that allows a protection against theft. A PIN code allows the user to lock the projector in case of wrong code entry. The PIN code must be entered at each start up (Power ON), entering three times a wrong number triggers a wait cycle of 15 minutes, the second 3 wrong codes a wait cycle of 30 minutes, 1 hour, ...

  • Page 134: How To Disable The Security Mode

    Security Enter your PIN: Enter name of owner Activating the security mode involves the following things: e.g. Barco Educational Center Confirm your PIN code: Image processing department - The startup screen (identification window) Brussels - Belgium will contain a line withthe name of the owner in it.
  • Page 135 14. Installation menu Image 14-21 R5976815 RLM G5I PERFORMER 02/06/2006...
  • Page 136 14. Installation menu R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 137: Version Table

    15. Service 15. SERVICE Overview • Version Table • Lamps and Power supply • Board Identification • Diagnostics • Formatter firmware • Formatter reset 15.1 Version Table What is possible ? To get an overview of the different software and firmware version inside the projector. How to get the version table 1.

  • Page 138: Board Identification

    15. Service How to get the lamps and power supply overview ? 1. Press MENU to activate the menu bar. (image 15-3) 2. Press → to select the Service item. 3. Press ↓ to pull down the menu. 4. Use ↑ or ↓ to select Lamps and Power supply..5.
  • Page 139 15. Service Image 15-5 Image 15-6 15.4 Diagnostics Overview • I²C Diagnostics • Lamps and power supply 15.4.1 I²C Diagnostics What can be done ? The I C bus allows the diagnostic of different hardware components How to display the diagnostics menu ? 1.
  • Page 140 15. Service Image 15-7 I2C Diagnostics I2C Diagnostics Device Slave address Lamp driver 0x78 Lamp Eeprom 0xA0 Power Supply 0x30 I2C Mulitplexer 0xE0 Red Formatter 0x34 Green Formatter 0x36 Blue Formatter 0x38 Motor driver 0x1A Image 15-8 15.4.2 Lamps and power supply What can be done ? This menu item gives an overview of the lamp and power supply errors.

  • Page 141: Formatter Firmware

    15. Service Image 15-10 15.5 Formatter firmware How to display ? 1. Press MENU to activate the menu bar. (image 15-11) 2. Press → to select the Service item. 3. Press ↓ to pull down the menu. 4. Use ↑ or ↓ to select Formatter firmware..5.
  • Page 142 15. Service How to display ? 1. Press MENU to activate the menu bar. (image 15-13) 2. Press → to select the Service item. 3. Press ↓ to pull down the menu. 4. Use ↑ or ↓ to select Formatter reset..5.

  • Page 143: Adjustment Menu (Check Up)

    16. Adjustment menu (check up) 16. ADJUSTMENT MENU (CHECK UP) Overview • Internal patterns • Convergence • More.. All items in the adjustment menu are given for check up. No adjustments are possible. 16.1 Internal patterns How to select ? 1.
  • Page 144 16. Adjustment menu (check up) 16.2 Convergence Only for check up of the convergence, no adjustment is possible in the field. When a convergence problem occurred, contact a Barco service center. How to select ? 1. Press MENU to activate the menu bar.

  • Page 145: Standard Image Files

    A. Standard Image Files A. STANDARD IMAGE FILES A.1 Table overview Table overview The following standard image files are pre-programmed in the projector. Name Fvert FHor Fpix Ptot Pact Ltot Lact Video625 25,00 15,625 11,25 Video525 29,97 15,734 11,33 SDI_625 25,00 15,625 13,50...
  • Page 146 A. Standard Image Files Name Fvert FHor Fpix Ptot Pact Ltot Lact 1280x768RB@60 59,994 47,396 68,250 1440 1280 1280x960@85 85,005 85,940 128,505 1728 1280 1011 1280x1024@60 60,018 63,980 107,997 1688 1280 1066 1024 1280x1024@75 75,023 79,974 134,997 1688 1280 1066 1024 85,027 91,149...

  • Page 147: Maintenance Of The Projector

    B. Maintenance of the Projector B. MAINTENANCE OF THE PROJECTOR B.1 Air Filters About maintaining the air filters It is recommended that you replace the air filters (located at the bottom of the projector) when you replace the lamp - or sooner, in dusty or dirty environment.
  • Page 148 B. Maintenance of the Projector Image B-2 Image B-3 Available kit All the 5 air filters are assembled to 1 kit, order number R401045K R5976815 RLM G5I PERFORMER 02/06/2006...

  • Page 149: Specifications

    C. Specifications C. SPECIFICATIONS C.1 Specifications RLM G5i Performer Overview Light Output 4500 ANSI Lumen Resolution 1024 x 768 (native) Contrast ratio 1000 : 1 (full field) High contrast mode Available with special lenses Brightness uniformity > 90% Lamp 2 x 250 W mercury max.
  • Page 150 C. Specifications Control • 1 x RS-232 / 422 IN • 1 x XLR female (2 way) • build-in RF remote transceiver (optional) Shift Range Lens Shift Range RLD 0.8 up-down: 25<>25 left-right: 20<>20 Other RLD up-down: 100<>10 left-right: 75<>75 TLD (HB) 0.8 up-down: 60<>35 left-right: 50<>...

This manual is also suitable for:

Rlm g5i performer

Table of Contents
