IR Sensor (C)
45°
45°
Image 4-7

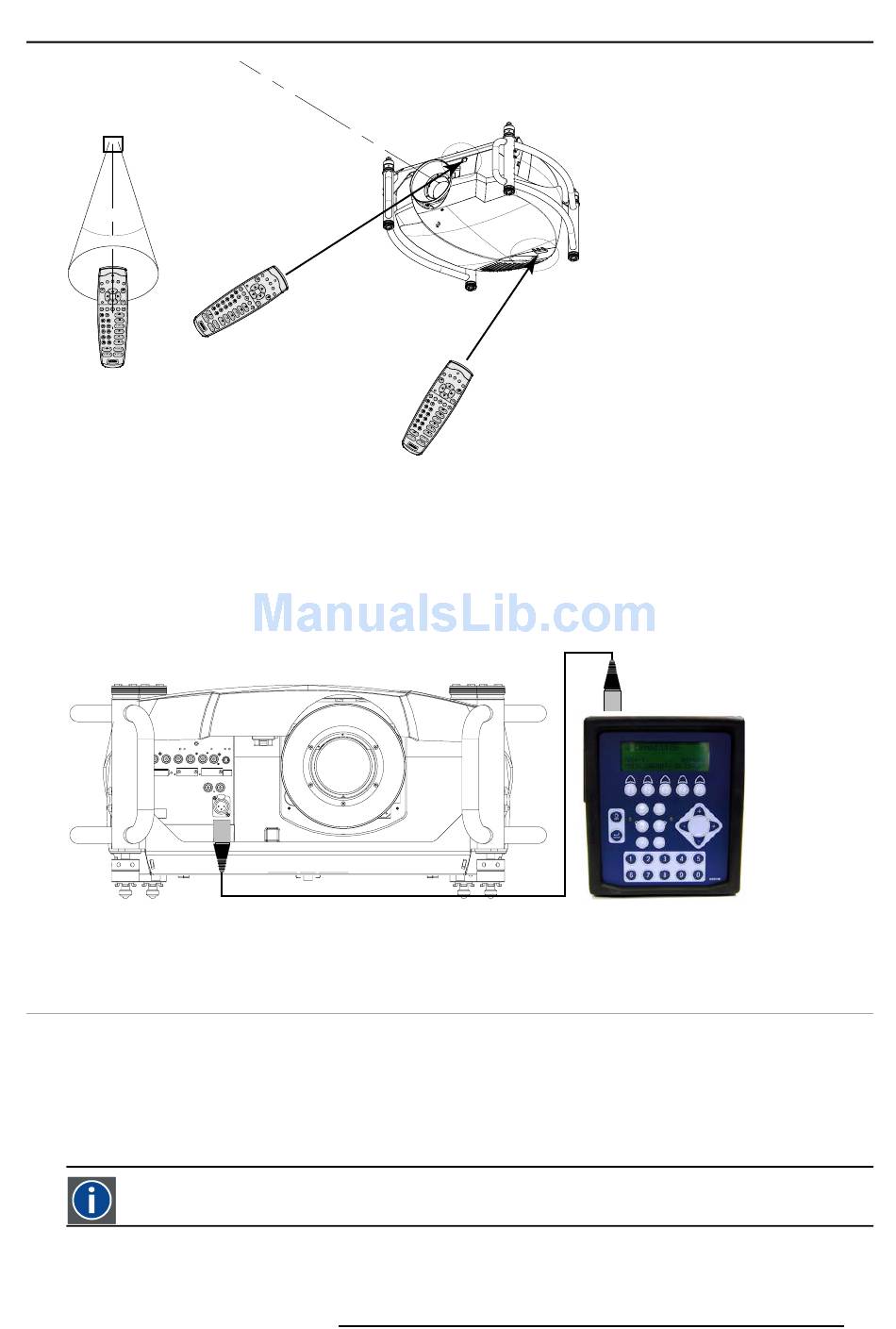

Remote control to IR sensor
A
IR sensor on front
B
IR sensor on top
C
IR sensor
Optional two way hard-wired remote to XLR input
1. Plug one end of the twisted pare cable with XLR connector in the two way remote. (image 4-8)
2. Plug the other end in the XLR connector on the projector.
Image 4-8
Two way hard-wired remote
4.8
Projector address
Overview
•
Address setting
•
Displaying and Programming addresses into the RCU
4.8.1
Address setting
Projector address
Address installed in the projector to be individually controlled.
