3. Connections
Input specifications
(HD)SDI input : BNC
(HD)SDI output : BNC (= loop through)
typical : 0.8 Vpp
75Ω terminated
output impedance: 75Ω
R/PR
G/Y
DVI
POWER WIRELESS
RECEIVER
10 BASE-T

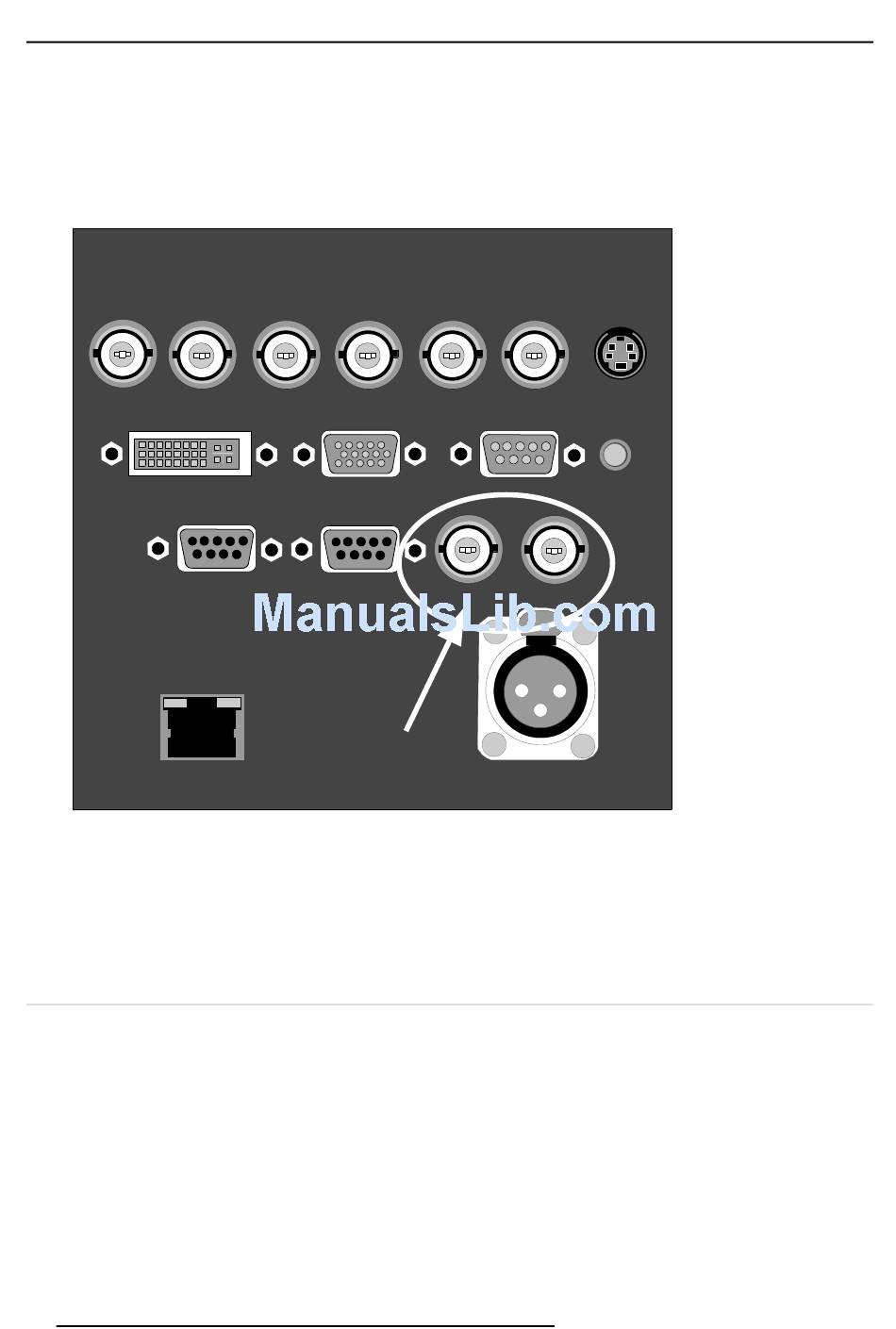

Image 3-9
(HD)SDI input
How to select the (HD)SDI input
1. Press 7 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu.
3.9

Communication connection

Overview
•

RS232 IN connection

• Wireless receiver
3.9.1 RS232 IN connection
What can be connected to the RS232/422 IN connection ?
The RS232 IN connection allows the projector to communicate with a computer e.g. IBM PC or Apple Macintosh.
30
B/PB Hs/Cs
ANALOG RGB
RS 232/422 (HD)SDI
OUT
Vs VIDEO S-VIDEO
R.C.
RS 232/422 IN
(HD)SDI OUT
IN
PUSH
2 1
3
TWO WAY
HARDWIRED REMOTE
