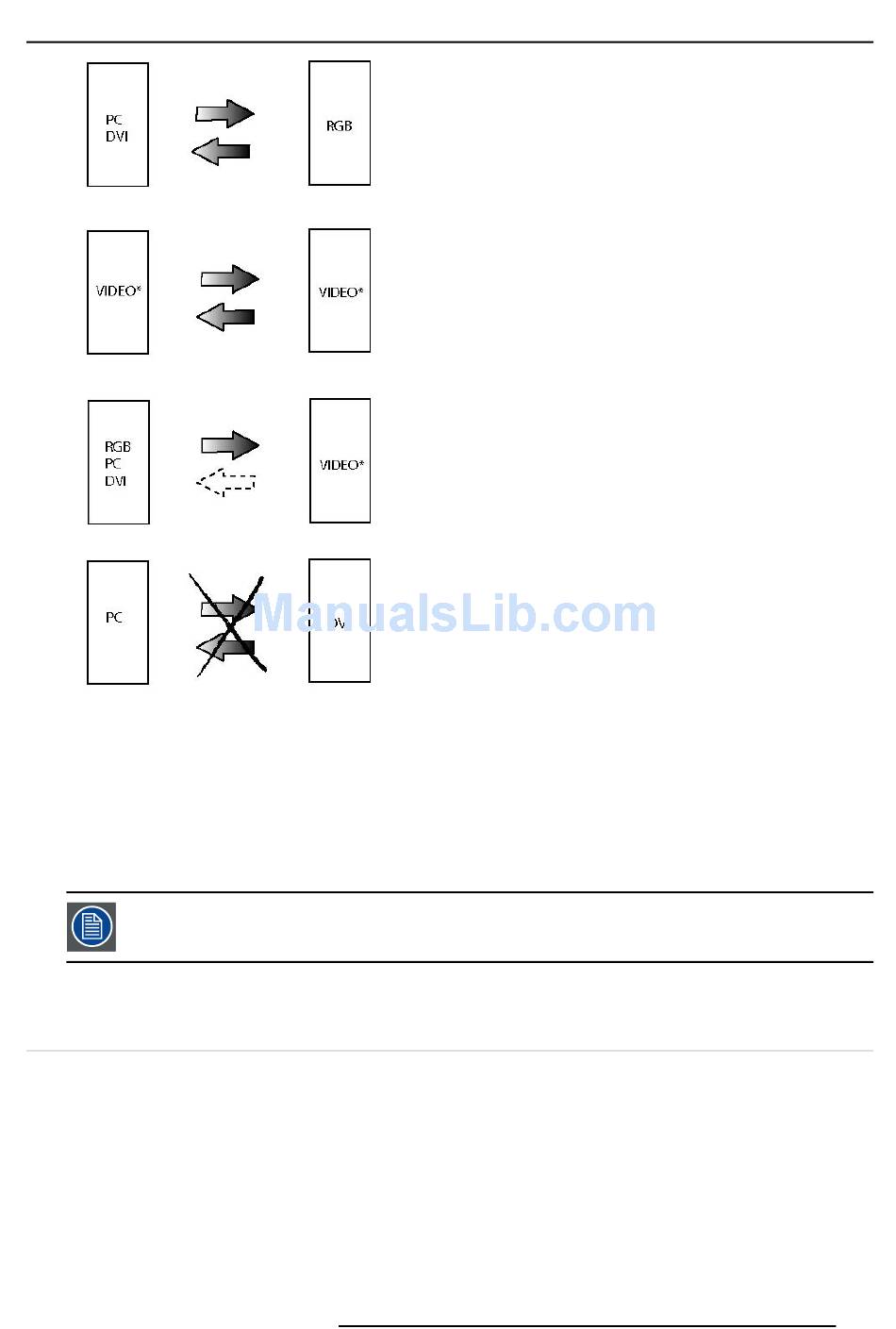

Image 10-2
*
Video may be Composite video/ S-Video / SDI
•
dark arrow : fade in/out effect possible
•
dotted arrow : undetermined case, fade in/out effect may take place or not
•
striked out arrow : fade effect impossible
The switching effects are only possible in the full screen mode
10.3 Output Frame rate
What can be done ?
To avoid transition effects when switching from a source with a frame rate of 50 Hz to a source with frame rate of 60 Hz or vice versa,
set the output frame rate to one typical frequency. The default value for this setting is synchronous, that means that the output frame
rate follows the input source. When the source is 50 Hz, the output will be 50 Hz, when the source is 60 Hz, the output will be 60
Hz, but transition effects can occur. When set to e.g. 50 Hz, all sources will be displayed with an output frame rate of 50 Hz. 60 Hz
sources will miss some frames.
How to change ?
1. Press MENU to activate the Tool bar.
2. Press → to select the Signal item. (image 10-3)
3. Press ↓ to pull down the Signal menu.
R5976816 RLM R6+ PERFORMER 02/06/2006
10. Signal menu
103
