3. CONNECTIONS
Overview
•
Power connection
•
Input Source Connections
•
5-Cable input
•
Composite Video Input
•
S-Video input
•
Digital Visual Interface (DVI) input
•
Computer input (RGB analog)
•
SDI or HDSDI input
•
Communication connection
•
Extended configuration
3.1
Power connection
AC power (mains) cord connection
Use the supplied power cord to connect your projector to the wall outlet.
Plug the female power connector into the male connector at the back of the projector. Fixate the power plug with the power cord
clamp.
The power input is auto-ranging from 90 to 240 VAC.

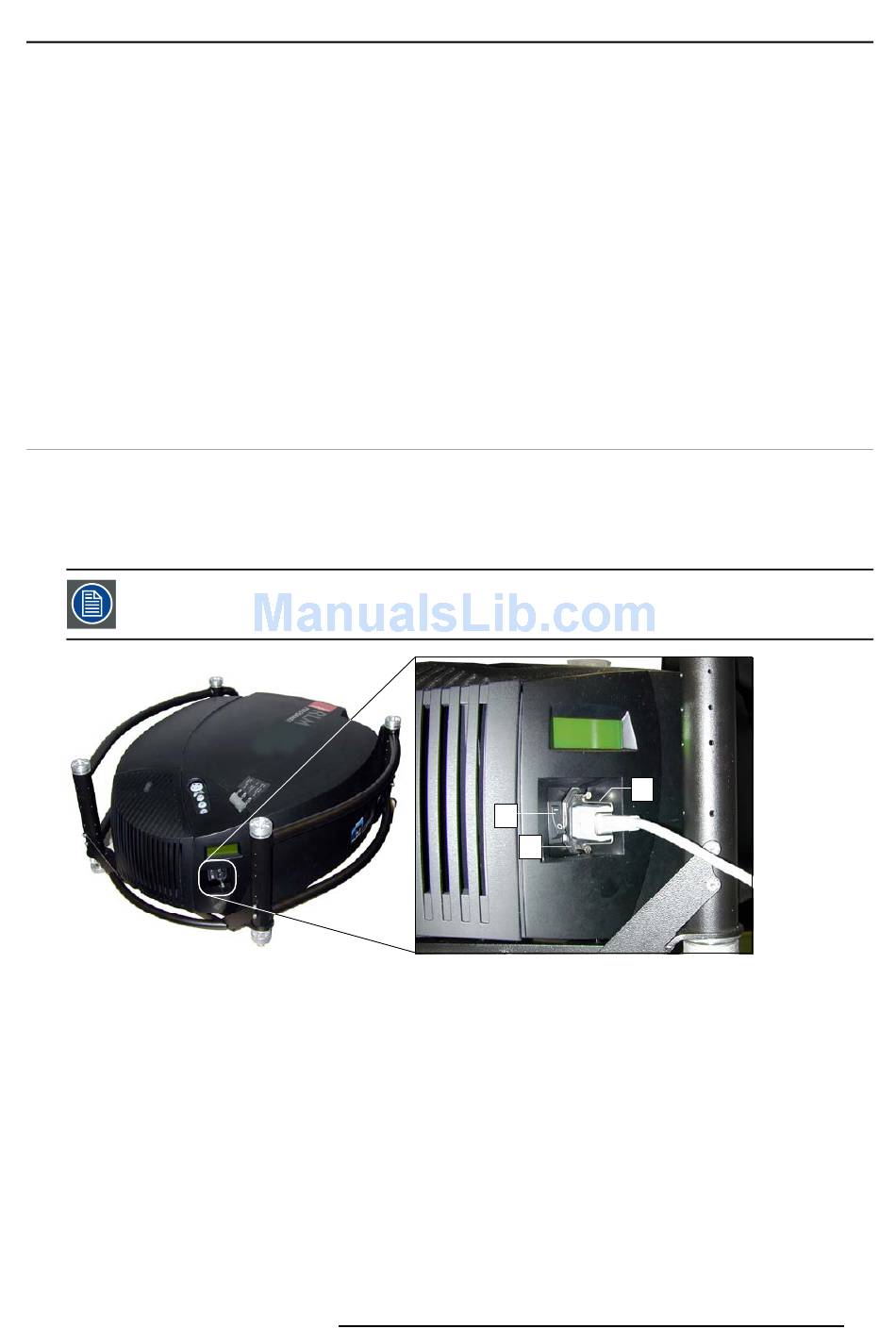

Image 3-1
Power connection
1
Power input
2
Power cord clamp
3
ON/OFF switch
Fuses
For continued protection against fire hazard :
•
refer replacement to qualified service personnel
•
ask to replace with the same type of fuse.
