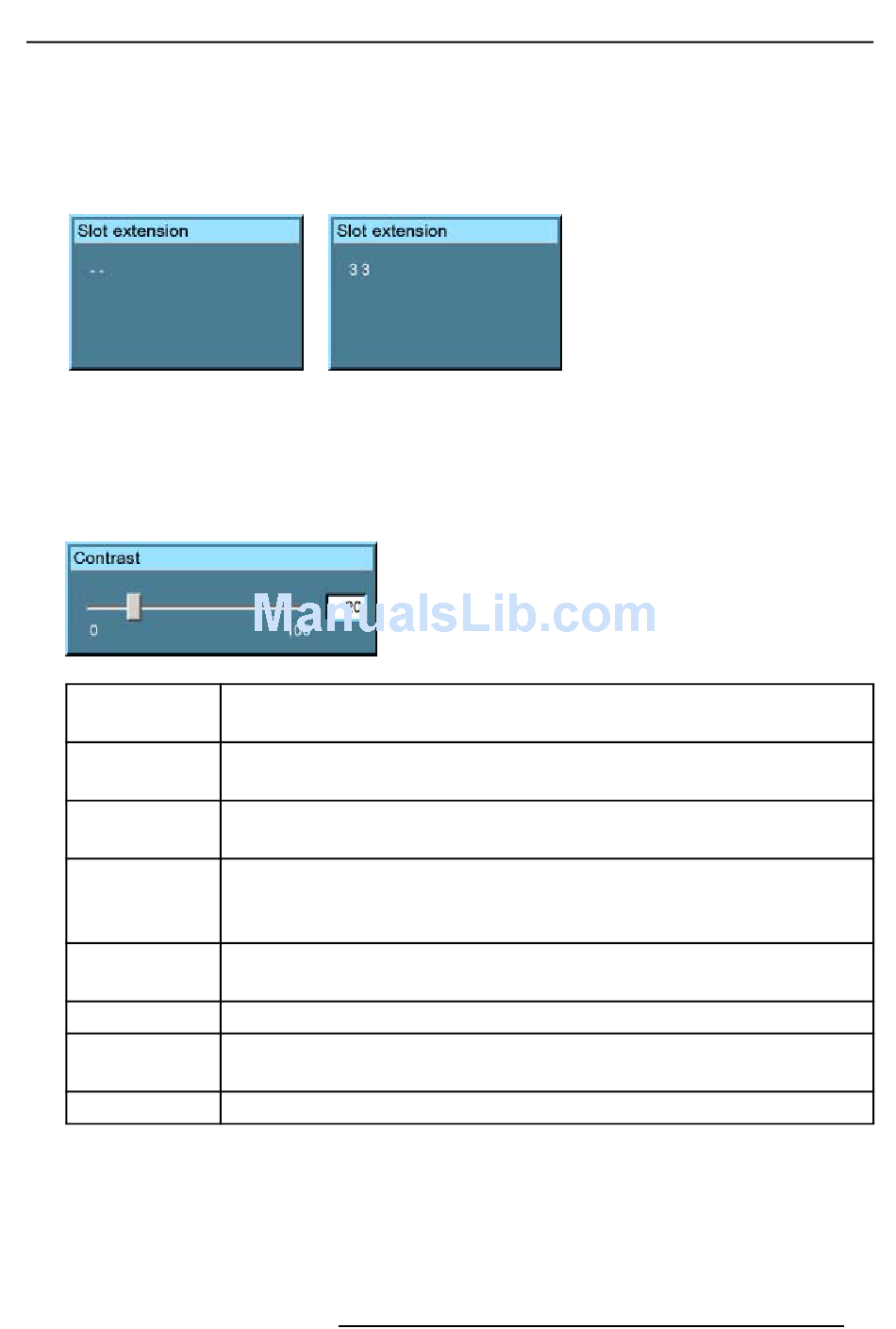

Input Selection with alternative custom file (slot extension)
It is possible to select the same input but with another settings (another custom file will be loaded).
How to do it :
1.
Press first 0 on the RCU. The Slot extension menu will be displayed.
2.
Enter the two digits. First digit is custom file sequence and the second digit is the input. E.g. 33, the third custom file will be
loaded for source 3. If it does not exist, it will be created.
The same input can be loaded with 9 different input sources. E.g. for source 3, the input can be from 13 over 23 to 93.
Image 4-9
Picture Controls
When an image control is pressed, a text box with a bar scale, icon and function name of the control, e.g. 'brightness...' appears
on the screen (only if Textbox in the Display Setup menu is ON). The length of the bar scale and the value of the numeric indication
indicate the current memorized setting for this source. The bar scale changes as the arrows on the RCU are pressed or the + or -
buttons on the local keypad.
The picture settings are saved in the image file.
Image 4-11
Brightness
Contrast
Color
Tint (Hue)
Sharpness
Phase
Gamma
Freeze
The Pause Key
When the Pause key is pressed, the image projection is stopped, the mechanical shutter is closed.
R5976816 RLM R6+ PERFORMER 02/06/2006
Image 4-10
Use the + button for a higher brightness.
Use the - button for a lower brightness.
Use the + button for a higher contrast.
Use the - button for lower contrast.
Use the + button for richer colors.
Use the - button for lighter colors.
Tint is only active for Video and S-Video when using the NTSC 4.43 or NTSC 3.58 system.
Use the + button
Use the - button.
Use the + button for a sharper picture.
Use the - button for a softer picture.
Use the + or - button to adjust the phase.
Use the + button for a higher gamma
Use the - button for a lower gamma
Press Freeze to freeze the displayed image.
4. Getting Started
43
