Component Video signals (PR/Y/PB)
Some interfaces use progressive output signals with a double line frequency of 32 kHz. The video decoder
used for the video signals is not appropriate for these signals since it can only handle 15 kHz signals. This
signal has therefore to be internally redirected, this is done in the Source selection menu by selecting Data on
BNC's instead of Component video and by selecting Pr/Y/Pb in the advanced settings of the Image file menu.
3.4

Composite Video Input

Input specifications
The Composite video input section is made of 1 BNC input terminal. Connect Composite video signals from a VCR, OFF air signal
decoder, etc..
1.0 Vpp ± 3dB
75 Ω terminated
No loop through
R/PR
G/Y
DVI
POWER WIRELESS
RECEIVER
10 BASE-T

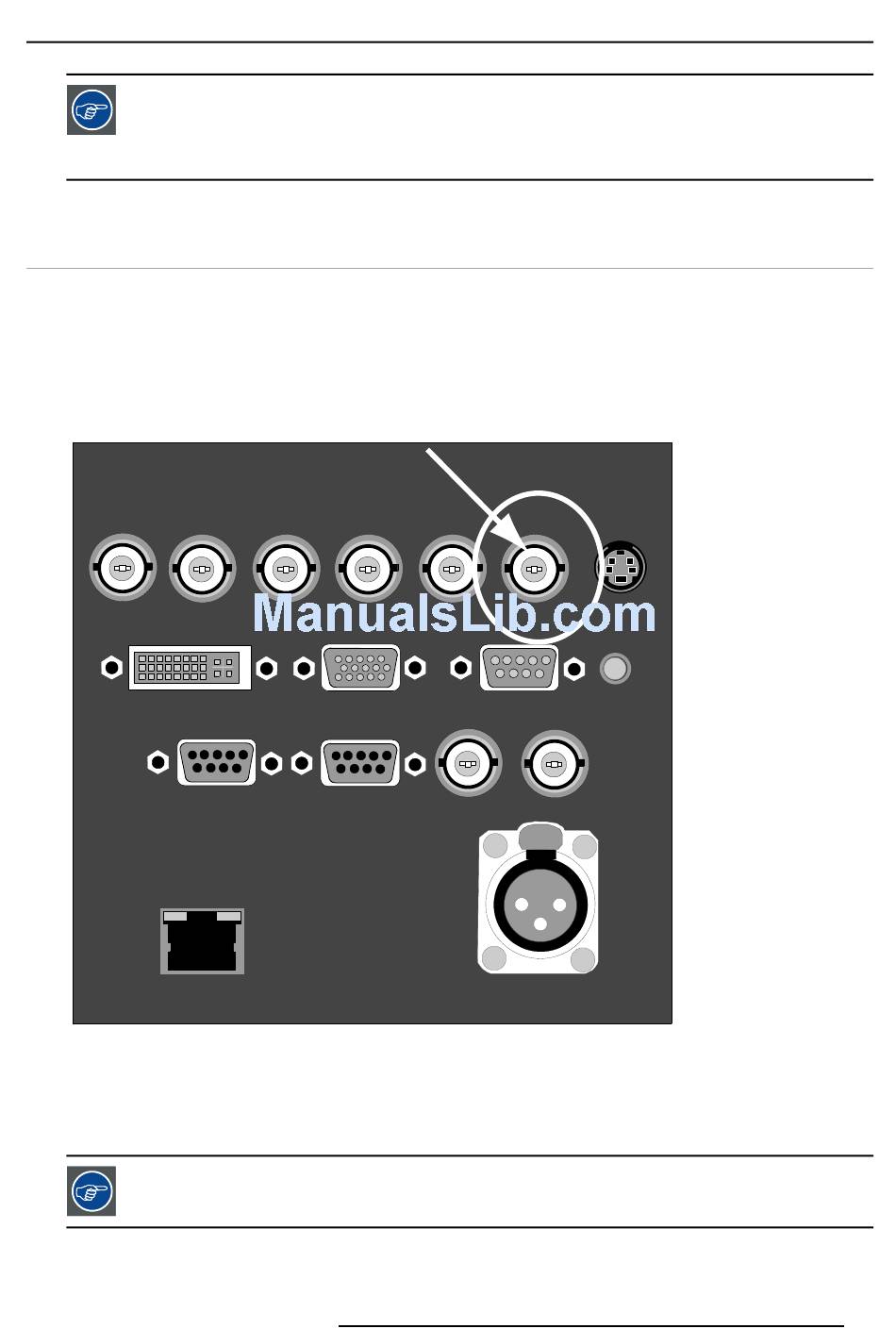

Image 3-4
Composite Video indication
How to select a Composite Video Input ?
1. Press 3 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu.
The projector allows the input of more composite video signals (up to 7 composite video signals) when using
the 5 cable input in extended configuration. Press 3 to browse through the possible video sources.
R5976816 RLM R6+ PERFORMER 02/06/2006
B/PB Hs/Cs
ANALOG RGB
RS 232/422 (HD)SDI
OUT
Vs VIDEO S-VIDEO
R.C.
RS 232/422 IN
(HD)SDI OUT
IN
PUSH
2 1
3
TWO WAY
HARDWIRED REMOTE
3. Connections
25
