3. Connections
How to set up the S-Video extended configuration ?
1. Connect the video sources to the desired connector (image 3-15)
Note: An adapter cable is required
R/PR
G/Y
B/PB
Hs/Cs
Video Y
Video C

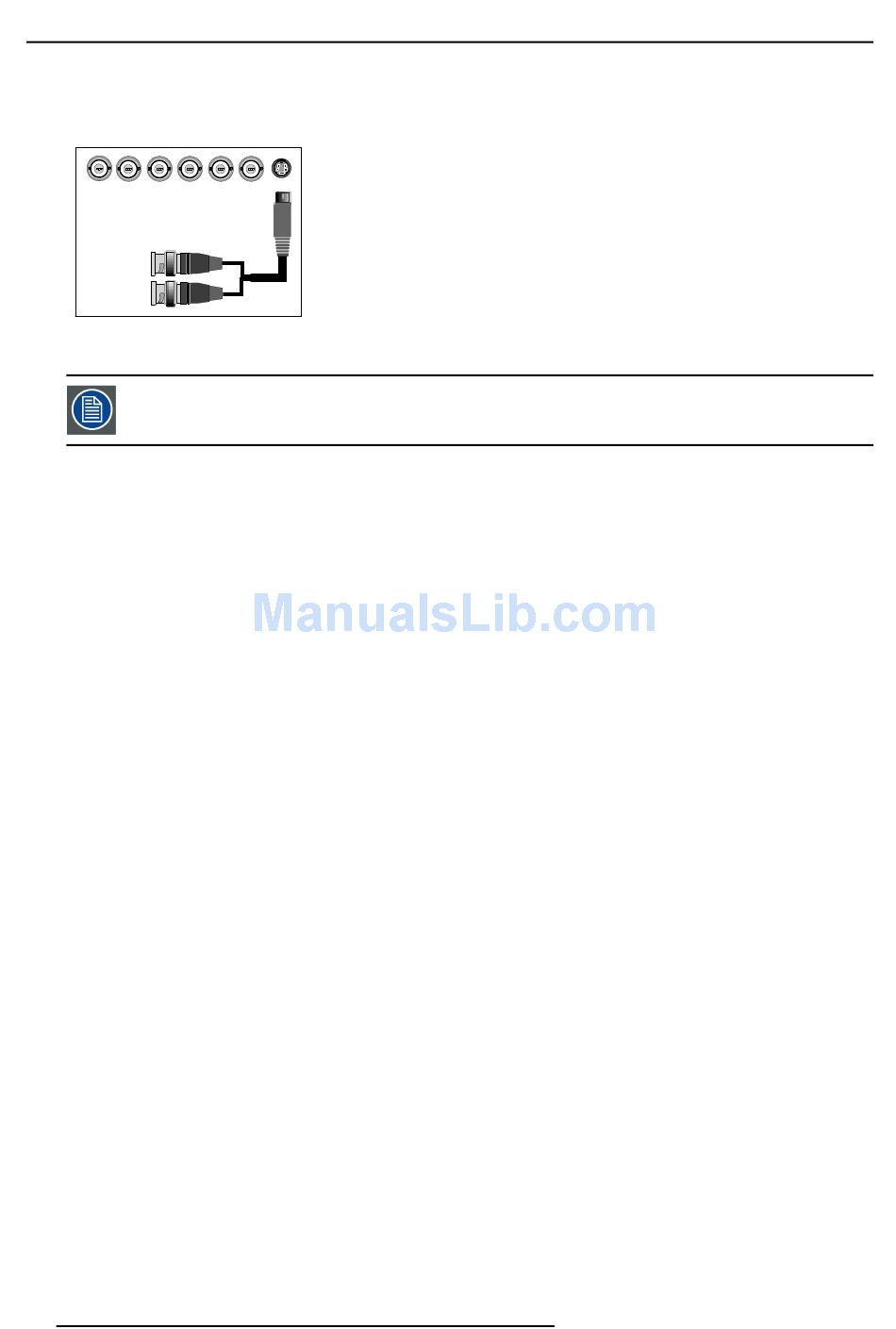

Image 3-15
Connecting 2 composite Video signals to the S-Video connector
Multiple video signals can not be visualized simultaneously since there is only one decoder.
3.10.4 Summarizing
Composite video signals
A composite video signal can be entered via 7 different inputs, which gives you 7 different video signals (optional video input not
included).
1.
Video R : via 1st BNC
2.
Video G : via 2nd BNC
3.
Video B : via 3rd BNC
4.
Video VS : via 5th BNC
5.
Video : via the standard composite video BNC input
6.
Video Y : via S-Video input
7.
Video C : via S-Video input
Key 3 on the RCU allows to browse through the active video inputs, each hit moves to the next active video input. The first hit on
key 3 selects the last selected video input.
S-Video signals
An S-Video source can be connected in 3 different ways, through 3 different inputs.
1.
S-Video 1: via the standard S-Video input
2.
S-Video 2 : via the 5
3.
S-Video 3 : via the 1st and the 3rd BNC
Key 4 on the RCU allows to browse through the active S-Video inputs, each hit moves to the next active video input. The first hit on
key 4 selects the last selected video input.
34
Vs
VIDEO S-VIDEO
Luma
Chroma
th
BNC and the standard Composite Video input
R5976816 RLM R6+ PERFORMER 02/06/2006
