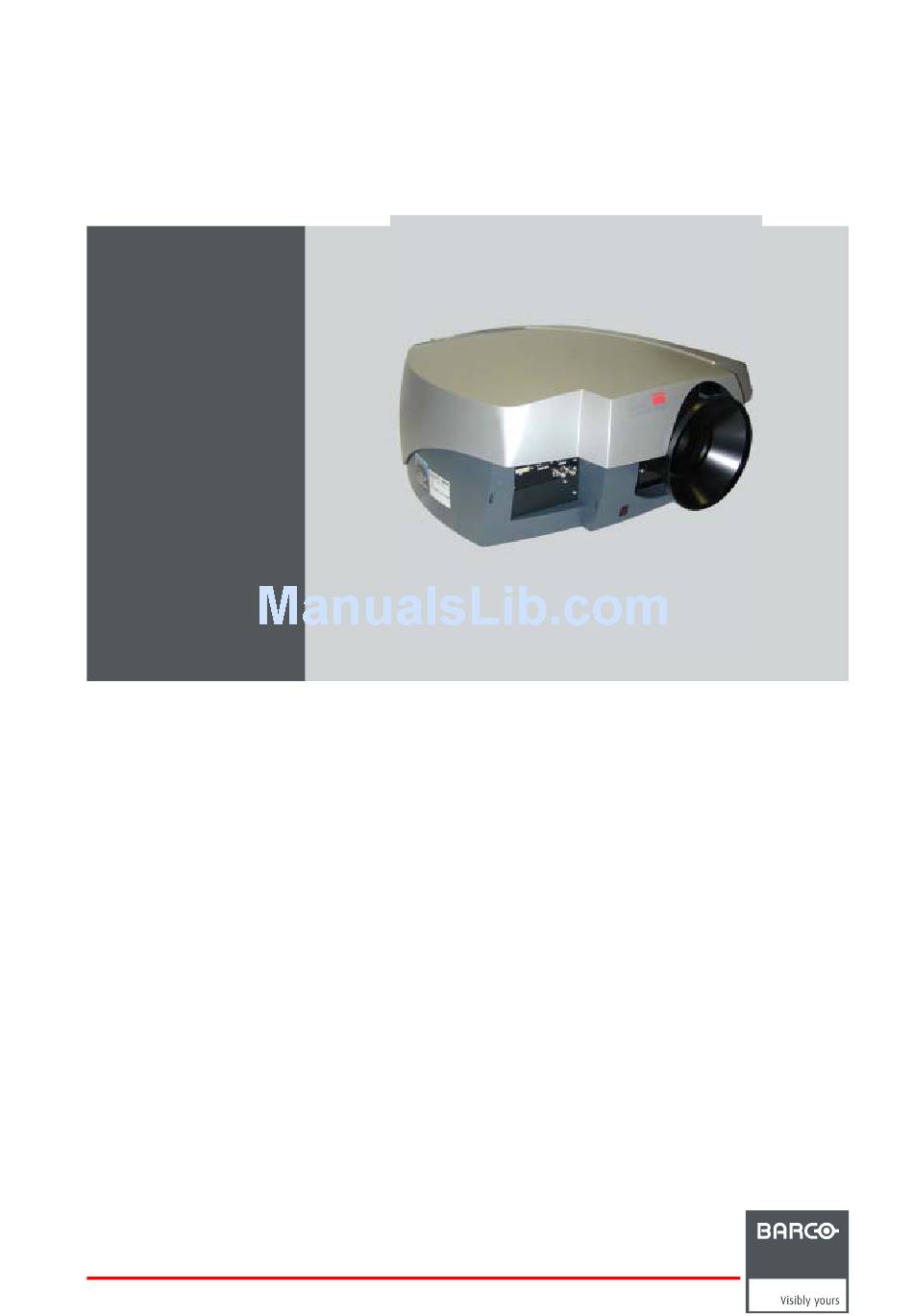

CineVERSUM™ 110
Owner's Manual
R9010120
R5976697/01
12/05/2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CineVERSUM 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco CineVERSUM 110

Summary of Contents for Barco CineVERSUM 110

  • Page 1 CineVERSUM™ 110 Owner’s Manual R9010120 R5976697/01 12/05/2004...
  • Page 2 Barco nv Home Cinema Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.69 Fax: +32 56.36.83.54 E-mail: salesassistantht.bci@barco.com Visit us at the web: www.homecinema.barco.com Printed in Taiwan...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Packaging and Dimensions ..................5 Box content .
  • Page 6 Table of contents Freeze ..........................55 Standby Timer .
  • Page 7 Table of contents 14.2 Projector address ........................122 14.3 Orientation .
  • Page 8 Table of contents R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 9: Packaging And Dimensions

    1. Packaging and Dimensions 1. PACKAGING AND DIMENSIONS Overview • Box content • Projector Packaging • Dimensions 1.1 Box content CEE7 European power plug to connect the power cord to the wall outlet. ANSI 73.11 American power plug to connect the power cord to the wall outlet. Content •...
  • Page 10 1. Packaging and Dimensions Image 1-2 Projector packaging Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory. R5976697 CINEVERSUM™...

  • Page 11: Dimensions

    1. Packaging and Dimensions 1.3 Dimensions Side view 217,2 [6,30] [12,40] [8,55] 691,7 [27,23] Image 1-3 Side view Back view 605,2 [23,83] [8,86] [8,86] Air outlet Image 1-4 Back view R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 12: Bottom View

    1. Packaging and Dimensions Bottom view Air Inlet Cable intrance [12 40] Image 1-5 Bottom view R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 13: Installation Guidelines

    2. Installation Guidelines 2. INSTALLATION GUIDELINES Overview • Safety Warnings • General • Safety Area around projector • Projector Configuration • Installation requirements and attention points • Lenses • Ceiling mount support for CineVERSUM™ 110 • Battery Insertion in the Remote Control ARNING Before installing the projector, read first the safety instructions in the safety manual delivered with the projector and also the safety pages in this manual.

  • Page 14: Safety Area Around Projector

    2. Installation Guidelines Environment Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not excessive.

  • Page 15: Projector Configuration

    2. Installation Guidelines Image 2-1 Air flow, safety area 2.4 Projector Configuration Which configuration can be used? The projector can be installed to project images in four different configurations: • Front/table • Rear/table • Front/ceiling • Rear/ceiling Positioning the projector The projector should be installed perpendicular to the screen on a distance PD and water leveled in both directions.
  • Page 16 2. Installation Guidelines Image 2-2 Projector distance screen – projector Due to the lens shift functionality, it is possible to mount the projector out of axis in horizontal and in vertical direction. The lens shift can be defined as : the distance from the middle of the lens to the horizontal or vertical center line of the screen. The Vertical lens shift is expressed in % of the screen height divided by 2.

  • Page 17: Installation Requirements And Attention Points

    2. Installation Guidelines Optical Axis Projector Lens Optical Axis Projector Lens Image 2-3 Lens shift Vertical lens shift Horizontal lens shift 2.5 Installation requirements and attention points Overview • Position the projector perpendicular to the screen and leveled to achieve an optimal image. An inclination of the projector is allowed but limited due to the maximum keystone correction range.

  • Page 18: Lenses

    2. Installation Guidelines 2.6 Lenses Overview • Lenses • Lens formulas • Lens installation • Cleaning the lens 2.6.1 Lenses Available lenses CineVERSUM™ lenses : Lenses Order number CineVERSUM™ (0.64) R9832640 CineVERSUM™(1.2 - 1.44 : 1) R9842342 CineVERSUM™(1.44 - 1.8 : 1) R9842343 CineVERSUM™(1.8 - 2.4 : 1) R9842344...
  • Page 19 2. Installation Guidelines Lenses Metric formulas Inch formulas Hor. shift Vert. shift Screen size (meter) (inch) (diagonal) CineVER- Wide PD = 3.6 x SW PD = 3.6 x SW -67% – +46% -50% – +143% 173 – 724 cm SUM™(3.6 - 5.6 : 68 - 285 in Tele PD = 5.6 x SW...

  • Page 20: Lens Installation

    2. Installation Guidelines About horizontal and vertical shift Image 2-5 Lens shift What can be learned out of this diagram ? When shifting completely to vertical+ or vertical -, there is no horizontal shift possible. For maximum vertical shift, the lens should be horizontally in the middle.

  • Page 21: Cleaning The Lens

    2. Installation Guidelines Image 2-6 2.6.4 Cleaning the lens To minimize the possibility of damaging the optical coating or scratching exposed lens surface, we have de- veloped recommendations for cleaning the lens. FIRST, we recommend you try to remove any material from the lens by blowing it off with clean, dry deionized air.

  • Page 22: Battery Insertion In The Remote Control

    2. Installation Guidelines Image 2-8 Ceiling mount extension support For more details about the ceiling mount extension supports, see the concerning installation manual. 2.8 Battery Insertion in the Remote Control Where to find the batteries The batteries are not placed in the remote control to avoid remote control operation in its package, resulting in a shorter battery life time.
  • Page 23 2. Installation Guidelines Image 2-11 Battery removal R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 24 2. Installation Guidelines R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 25: Connections

    3. Connections 3. CONNECTIONS Overview • Power connection • Input source connection • 5-Cable input • Composite Video Input • S-Video input • Digital Visual Interface (DVI) input • Computer input (RGB analog) • Serial Digital Interface • RS232 IN connection •...

  • Page 26: Input Source Connection

    3. Connections Image 3-3 Projector covers removal Quarter turn fastener Rear cover Image 3-4 Power input cover Power connection Right angle power socket Power cable routing AC Power Specifications Auto Range 90 – 240V AC Power Voltage AC Power Current 7.0 A –...

  • Page 27: Input Facilities

    3. Connections 3.2.2 Input facilities overview • 5–cable input component video (PR/Y/PB) RGBS • composite video • S-Video • Digital Visual Input (DVI) • Computer (analog RGB) • Serial Digital Input with loop through connection R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C.

  • Page 28: Composite Video Input

    3. Connections Component Video In Component Video the term component describes a number of elements that are needed to make up the video pic- ture, these components are PR/Y/PB. A composite video signal on the other hand contains all the information needed for the color picture in a single channel of information Which signals can be connected ? Signals/Input BNC...

  • Page 29: S-Video Input

    3. Connections How to select a Composite Video Input ? 1. Press 3 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu. The projector allows the input of more composite video signals (up to 7 composite video signals) when using the 5 cable input in extended configuration.

  • Page 30: Digital Visual Interface (Dvi) Input

    3. Connections How to select the S-Video input ? 1. Press 4 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu. The projector allows the input of more S-Video signals (up to 3 S-Video signals) via the S-Video extended configuration.

  • Page 31: Computer Input (Rgb Analog)

    3. Connections How to select the DVI Input ? 1. Press 5 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu. 3.7 Computer input (RGB analog) Input specification TTL sync input : U = 2.0 V RGB input = 0.7 V...

  • Page 32: Rs232 In Connection

    3. Connections R/PR B/PB Hs/Cs VIDEO S-VIDEO R.C. ANALOG RGB RS 232 C Image 3-12 How to select the SDI input 1. Press 7 on the RCU Note: Another way for selecting this input is via Source on the local keypad or via the Menu. 3.9 RS232 IN connection What can be connected to the RS232 IN connection ? The RS232 IN connection allows the projector to communicate with a computer e.g.

  • Page 33: Extended Configuration

    3. Connections 3.10 Extended configuration Overview • Introduction • 5-cable extended configuration • S-Video extended configuration • Summarizing 3.10.1 Introduction What can be done ? The extended configuration allows to connect multiple equal source types to the inputs and allow switching between this wide range of input signals.

  • Page 34: S-Video Extended Configuration

    3. Connections Multiple video signals can not be visualized simultaneously since there is only one decoder. 3.10.3 S-Video extended configuration What can be done ? Beside the standard luminance (Y) and chrominance (C) signals, the advanced capabilities of the S-Video input make treatment of additional signals possible: •...
  • Page 35 3. Connections S-Video 1: via the standard S-Video input S-Video 2 : via the 5 BNC and the standard Composite Video input S-Video 3 : via the 1st and the 3rd BNC Key 4 on the RCU allows to browse through the active S-Video inputs, each hit moves to the next active video input. The first hit on key 4 selects the last selected video input.
  • Page 36 3. Connections R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 37: Getting Started

    4. Getting Started 4. GETTING STARTED Overview • Terminology overview • Switching on • Lamp runtime • Switching to standby • Switching off • Temperature error DMD • Using the RCU • Projector address • Controlling the projector • Quick lens adjustment •...
  • Page 38 4. Getting Started MENU BACK ENTER LOGO PAUSE TEXT AUTO IMAGE DIGI ZOOM PHASE SB-PC TINT COLOR VIDEO S-VIDEO BRIGHTN CONTR LENS LENS ZOOM SHIFT LENS FOCUS Image 4-1 Led 1 Led 2 Led 3 Image 4-2 R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 39 4. Getting Started Key name Description Function keys user programmable keys with functions for direct access. MENU Menu key, to enter or exit the Tool bar menu. Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with a pencil, followed by pressing one digit button between 0 and 9.

  • Page 40: Switching On

    The total lifetime of the lamp (single lamp) for a safe operation is 1500 (x) hours max., do not use it longer. Always replace with a same type of lamp. Call a BARCO authorized service technician for lamp replacement. Lamp management when the lamp runtime is reached in the different lamp modes is indicated in the next image.

  • Page 41: Switching To Standby

    ARNING Using a lamp for more than x hours is dangerous as the lamp could explode. The lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. 4.4 Switching to standby How to switch to standby? 1.

  • Page 42: Using The Rcu

    4. Getting Started Ambient temperature range within the operating temperature range of the DMD is situated : +10°C and +40°C. 4.7 Using the RCU Pointing to a reflective screen 1. Point the front of the RCU to the reflective screen surface. (image 4-5) IR Sensor (C) Remote Control (A) Screen (B)

  • Page 43: Projector Address

    4. Getting Started Image 4-7 Stereo jack pin configuration tip: Left channel ring: right channel screen: common (GND) external switch Stereo jack Mono jack The Remote connection uses a standard two wire cable terminated on each end with a 3.5 mm male (mono/stereo) phone jack.

  • Page 44: Displaying And Programming Addresses Into The Rcu

    4. Getting Started Common address Default address. Projector will always execute the command coming from a RCU programmed with that common address. Why a projector address ? As more than one projector can be installed in a room, the separate projector should be separately addressable with an RCU or computer.

  • Page 45: Quick Lens Adjustment

    4. Getting Started Contrast Image 4-9 Brightness Use the + button for a higher brightness. Use the - button for a lower brightness. Contrast Use the + button for a higher contrast. Use the - button for lower contrast. Color Use the + button for richer colors.

  • Page 46: Direct Lens Adjustment (Rcu)

    4. Getting Started ..Installation ..Lens adjustment Projector address ..Lens adjustment for vertical shift for horizontal shift Press <enter> for ZOOM/FOCUS Press <LOGO> or <LENS> Lens adjustment for test pattern for vertical shift for horizontal shift Press <enter> for ZOOM/FOCUS Press <LOGO>...
  • Page 47 4. Getting Started Image 4-12 Digital zoom Normal image Digital zoom out Digital zoom in Panning of the zoomed image To return to the normal image, press MENU, go to Tools, select PiP select and check Full screen. R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 48 4. Getting Started R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 49: Getting Used With The Menu Structure

    5. Getting used with the Menu structure 5. GETTING USED WITH THE MENU STRUCTURE 5.1 How to start up the menus PC like menu structure The CineVERSUM™ 110 has a build in “PC like” menu bar which allows easy access to different parameters for setting up the projector.

  • Page 50: Using The Dialog Boxes

    5. Getting used with the Menu structure How to pull down a submenu ? 1. Use → to pull down a submenu. How to exit the submenu ? 1. Press BACK to exit a submenu. Press MENU to exit the menu 5.3 Using the Dialog boxes How to use the dialog boxes ? Some parameters are modified by means of a dialog box, where selections can be made and/or values can be entered.
  • Page 51 5. Getting used with the Menu structure In some cases an alphanumeric value (file name, ...) has to be entered. Use ↑ or ↓ to scroll through the char- acter values once the input field is activated. Following characters can be browsed in this particular order: Decimal scroll list: 0123456789 Signed decimal scroll list: 0123456789- ASCII scrolllist:ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-*/&@#.;.abcdefghijklmnopqrstuvwxyz...
  • Page 52 5. Getting used with the Menu structure R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 53: Source Selection

    6.2 The use of icons Overview A Barco logo in front of a menu item indicates the presence of a signal at the input. The digit icon in front of an item, indicates the shortcut key on the RCU. 6.3 Source selection Selecting a source The Source selection menu allows to select one of the different sources.

  • Page 54: Selecting A Data Source On The 5-Cable Input

    6. Source Selection How to select a source ? 1. Press MENU to activate the menu bar. 2. Press ↓ to pull down the Source Selection menu. 3. Use ↑ or ↓ to select one of the different sources (Press → to pull down if the item has a submenu). 4.

  • Page 55: Composite Video

    6. Source Selection When selecting “1” with the remote control, the predefined source type will be displayed. 6.5 Composite Video Possible connections In normal mode, one video source can be connected to the video input. In extended mode, up to 7 different video sources can be connected to the normal video input, or to the extended 5-cable input or to the S-Video.

  • Page 56: S-Video Selection

    6. Source Selection 6.6 S-Video selection When the extended mode is not switched on, the on screen menu will have another layout with less selection possibilities. How to select one of the 3 S-Video inputs ? 1. Press MENU to activate the menu bar. 2.
  • Page 57 6. Source Selection 4. Use the arrow keys to select the Extended check box. 5. Press ENTER to disable or enable the extended mode. Check Extended to switch to extended mode. Uncheck Extended to switch to standard mode. Image 6-5 How to select an input on the Video Selector 1.
  • Page 58 6. Source Selection R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 59: General Menu

    7. General Menu 7. GENERAL MENU Overview • General Menu overview • Pause • Freeze • Standby Timer • Identification 7.1 General Menu overview General Menu structure • Pause • Freeze • Standby timer... • Identification 7.2 Pause Interrupting the image projection With the Pause function, the image projection can be stopped (black image), the projector remains with full power for immediate restart.

  • Page 60: Standby Timer

    7. General Menu How to freeze the image ? 1. Press MENU to activate the menu bar. 2. Press → to select General. 3. Press ↓ to pull down the General menu. 4. Use ↑ or ↓ to select Freeze. (image 7-2) 5.

  • Page 61: Identification

    7. General Menu Image 7-4 Standby timer Enabled Disabled Countdown to Image 7-5 7.5 Identification The projector’s identification screen The identification screen displays the projector’s main characteristics These are: • Projector type • Projector address Software version controller unit • •...
  • Page 62 7. General Menu R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 63: Image Menu

    8. Image Menu 8. IMAGE MENU Overview • Image menu overview • Settings • Aspect ratio • Show native resolution • Color Temperature • Color space • Filmmode detection • Input Balance • AGC on Video • Manual Gain Control R5976697 CINEVERSUM™...

  • Page 64: Image Menu Overview

    8. Image Menu 8.1 Image menu overview Overview • Settings Contrast Brightness Color Tint Sharpness Gamma Phase Noise Reduction • Aspect ratio Auto [4:3] [16:9] [5:4] [2.35] [2.88] [1.78] Letterbox Custom... • Show native resolution • Keystone... • Color temperature Projector white Computer Video...

  • Page 65: Settings

    8. Image Menu 8.2 Settings Overview • Contrast • Brightness • Color • Tint (hue) • Sharpness • Gamma • Phase • Noise reduction What can be done ? Correct image settings are important for a good image reproduction. The image settings are made through a dialog box with a scroll bar. Minimal, maximal and the actual values are indicated. Some settings can also be done directly via the RCU’s dedicated buttons.

  • Page 66: Brightness

    8. Image Menu 7. Press ENTER. A slider box appears. 8. Use ← or → to change the contrast. The higher the value, the higher the contrast. click in the input box and enter the desired value with the numeric keys. Image 8-3 8.2.2 Brightness...

  • Page 67: Color

    8. Image Menu Image 8-4 8.2.3 Color About Color setting The color function is used to adjust color saturation levels. How to change the Color ? 1. Press MENU to activate the menu bar. (image 8-5) 2. Press → to select the Image item. 3.

  • Page 68: Tint (Hue)

    8. Image Menu 8.2.4 Tint (hue) About Tint The Tint function is used to adjust color hue to obtain true color reproduction and is only active for Video and S-Video when the NTSC color system is used. For PAL and SECAM sources, Tint is not accessible. How to change the Tint ? 1.

  • Page 69: Gamma

    8. Image Menu Image 8-7 8.2.6 Gamma About Gamma Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced). How to change the Gamma 1.

  • Page 70: Phase

    8. Image Menu 8.2.7 Phase About Phase adjustment When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. When this jitter occurs, adjust ’Phase’ for optimum image.

  • Page 71: Aspect Ratio

    8. Image Menu How to change the Noise reduction ? 1. Press MENU to activate the menu bar. (image 8-11) 2. Press → to select the Image item. 3. Press ↓ to pull down the Image menu. 4. Use ↑ or ↓ to select settings. 5.
  • Page 72 8. Image Menu Aspect ratio Description Letterbox To display normal television formats which contain 16 to 9 signal information Custom... To set up custom formats Selecting Auto in case of a Video source may shrink the image horizontally or vertically Some examples: The first column shows the aspect ratios for a standard television signal with 4:3 image information.
  • Page 73 8. Image Menu How to change the Aspect ratio ? 1. Press MENU to activate the menu bar. (image 8-13) 2. Press → to select Image. 3. Press ↓ to pull down the Image menu. 4. Use ↑ or ↓ to select Aspect ratio. 5.

  • Page 74: Show Native Resolution

    8. Image Menu Aspect ratio Horizontal Vertical to select to adjust Image 8-15 8.4 Show native resolution Show native resolution overrules the Full Screen Representation function in Display Setup. Show native resolution is greyed out for video signals. Digital Micromirror Device What can be done The aim here is to always show the resolution of the source independently of the resolution of the DMD panels.

  • Page 75: Color Temperature

    8. Image Menu Source Projected image 1400x1050 1400x1050 SXGA+ part of the image displayed, image scroll possible UXGA 1600x1200 1600x1200 part of the image displayed, image scroll possible 720p 16:9 1280x720 16:9 1280x720 normal image projected When the Full Screen Representation function is in the ON position, it forces to use the complete native res- olution of the DMD panels, except when the Show native resolution function is switched ON.
  • Page 76 8. Image Menu • Projector white • computer : 9300 K • Video : 6500 K • Film : 5400 K • Broadcast : 3200 K These calibrated presets can be selected and will provide optimum color tracking, the projector allows however the setting of a personal color temperature, this is done in custom Projector white will provide maximum projector light output.

  • Page 77: Color Space

    8. Image Menu Image 8-19 Change between x and y with <COLOR> Image 8-21 1000 Image 8-20 Koordinatewahl x und y mit <COLOR> Image 8-22 Cambie entre x y y con <COLOR> Image 8-23 the x and y coordinate changes between 0.00 and 1.00. For practical reasons, the values on the slider box are multiplied by 1000.
  • Page 78 8. Image Menu 6. Use ↓ or ↑ to select the desired color space. European Broadcasting Union. This organization defines a European standard. ANSI American standard. Projector Maximum color space Custom The user can define the x and y coordinates for red, green and blue which forms the corners of the color space. By changing the coordinates, the color reproduction can be changed.

  • Page 79: Filmmode Detection

    8. Image Menu Red x 1000 Image 8-26 the x and y coordinate changes between 0.00 and 1.00. For practical reasons, the values on the slider box are multiplied by 1000. 8.7 Filmmode detection What can be done ? Some sources like common DVD material are derived from cinema 24 Hz sources (2/2 or 3/2 pull down method). The filmmode detection insures that these converted signals are shown without artefacts.

  • Page 80: Input Balance

    8. Image Menu Image 8-27 8.8 Input Balance Overview • Introduction to Input Balance • Adjusting the input balance • Input balance for YPrPb signals 8.8.1 Introduction to Input Balance Introduction: Unbalanced color signals When transporting signals, there is always a risk of deterioration of the information contained in the signals. In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 8-28 , we are quite sure that the amplitude of these color signals is subject to alterations.

  • Page 81: Adjusting The Input Balance

    8. Image Menu One can conclude here that a good color tracking can only be met by using three previously (input) balanced color signals Analog Digital Conversion The analog color signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP. A typical ADC transforms the analog value into an 8 bit coded digital signal.

  • Page 82: Black Balance

    8. Image Menu White balance : In the projector, we will set the contrast for each color until we get a 100% light output picture when projecting a 100% white image (image A) Black balance : In the projector, we will set the brightness for each color until we get a 0% light output picture when projecting a 100% black image (image B).
  • Page 83 8. Image Menu Image 8-33 Change color between Red Green and Blue with <COLOR> Input black balance Red Image 8-35 Image 8-34 If one uses a gray scale pattern, the bright spots should appear in the black bar. Performing White input balance 1.

  • Page 84: Input Balance For Yprpb Signals

    8. Image Menu Image 8-36 Input white balance Red Image 8-37 If one uses a gray scale pattern, the bright spots should appear in the white bar. Selecting Preset restores the factory input balance setting 8.8.3 Input balance for YPrPb signals Remark on the input balance of a component video source Before starting the Input Balance procedure, generate a signal with dominant white parts.

  • Page 85: Agc On Video

    8. Image Menu • The white balance happens only on Green. Adjust until bright spots appear in the image. Image 8-38 • The black balance happens on the three colors. The PR and PB connector have to be removed from the input. Adjust until noise appears in the image.

  • Page 86: Manual Gain Control

    8. Image Menu Image 8-40 The AGC can be disturbing in case of Macrovision encoded signals, therefore the AGC can be disabled (OFF) at any time 8.10 Manual Gain Control What can be done ? When AGC on Video is disabled, the gain of the incoming video signal can be set manually. The manual gain control must be done on an external pattern with white areas (grey scale bar pattern).
  • Page 87 8. Image Menu Manual Gain Control on Video Image 8-42 R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 88 8. Image Menu R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 89: Tools Menu

    9. Tools Menu 9. TOOLS MENU Overview • Overview of the Tools menu • Introduction to PiP • PiP select • PiP add window • PiP remove window • PiP layout • PiP Adjust 9.1 Overview of the Tools menu Overview •...
  • Page 90 9. Tools Menu The different PiP configurations • Full screen The full screen is used to display one of the selected sources. Browse through the sources with the PiP Adjust button on the remote control. • 2-by-2 raster The screen is divided into 4 subscreens containing 1 Video, 2 Data sources and 1 SDI source. Image 9-1 •...

  • Page 91: Pip Select

    9. Tools Menu PiP dedicated buttons • PiP Adjust : this button allows to focus on one particular window, this window is shown with a white frame surrounding the selected window. A source identification box is displayed in the right lower corner. Image 9-2 Press PiP Adjust button to move the frame to the next window.

  • Page 92: Pip Add Window

    9. Tools Menu Image 9-3 9.4 PiP add window What can be done ? It is possible to add a window to the existing windows (maximum 4), therefore a source must be selected. Sources which are already used are not selectable. If for instance the PiP layout contains a component video then component video will be not selectable.

  • Page 93: Pip Remove Window

    9. Tools Menu 8. Position the window on the screen with the 4 arrow keys. (image 9-9) 9. Change the viewing order of the displayed images (z-order) with the ↑ and ↓ . (image 9-10) Image 9-5 Pip Wizard step 1 : Select the source you want to display in the window... Source selection Image 9-7 Data on BNC's...

  • Page 94: Pip Layout

    9. Tools Menu Image 9-11 Select window with <PiP ADJUST> Press <ENTER> to remove Image 9-12 9.6 PiP layout Overview • PiP Save • PiP rename layout • PiP delete layout 9.6.1 PiP Save What can be done ? The active layout can be saved or "saved as". When a new layout is saved it is added to the PiP select menu.

  • Page 95: Pip Rename Layout

    9. Tools Menu Image 9-13 Save PiP layout Message Layout name: Current layout has been saved Press <ENTER> or <EXIT> to return Full-screen Image 9-14 Image 9-15 9.6.2 PiP rename layout What can be done ? The non fixed layouts (factory and personal layouts) can be renamed . The maximal length of the name is 12 characters.

  • Page 96: Pip Delete Layout

    9. Tools Menu Rename PiP layout Rename PiP layout New name: PIP Layout 1 Own layout 1 PIP Layout 2 PiP Layout 3 Image 9-18 Own layout 1 Own layout 2 Image 9-17 9.6.3 PiP delete layout What can be done ? The non fixed layouts (factory and personal layouts) can be deleted.
  • Page 97 9. Tools Menu This can also be done by using the dedicated PiP Adjust key on the RCU Image 9-20 PiP adjust in case of 2-by-2 layout Data1 window has the focus, new settings will only affect Data1 window Video1 window has the focus, new settings will only affect Video1 window PiP adjust 1.
  • Page 98 9. Tools Menu R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 99: Signal Menu

    10. Signal menu 10. SIGNAL MENU Overview • Overview of the Signal menu • Switching mode • Background 10.1 Overview of the Signal menu Overview • Switching mode Seamless Box in Box out Shift in left Shift in right Shift in top Shift in bottom Vertical curtain open Vertical curtain close...
  • Page 100 10. Signal menu Image 10-1 The Random mode will select a new switching mode at each source switching i.e. there will never be 2 suc- cessive source switchings with the same effect. The Seamless switching mode is not used in the Random mode. Note on Fade in/out In some cases, depending on the sources to be switched, the fade in/out effect is impossible or may not occur.

  • Page 101: Background

    10. Signal menu Image 10-2 Video may be Composite video/ S-Video / SDI • dark arrow : fade in/out effect possible • dotted arrow : undetermined case, fade in/out effect may take place or not • striked out arrow : fade effect impossible The switching effects are only possible in the full screen mode 10.3 Background Purpose...
  • Page 102 10. Signal menu 6. Use ↑ or ↓ to select the desired background. 7. Press ENTER. Image 10-3 The logo display is only possible in the full screen mode, a logo can thus not be displayed (rescaled) in a window in the PiP mode. When there is no signal connected, the projector will also start its standby timer countdown (if enabled) and shuts down after the predetermined time.

  • Page 103: Lamps Menu

    11. Lamps Menu 11. LAMPS MENU Overview • Overview of the Lamps menu • Runtimes • Mode • Economic ON/OFF • Runtime warning 11.1 Overview of the Lamps menu Overview • Runtimes... • Mode Single... Dual... • Economic • Runtime warning 11.2 Runtimes How to display the lamp runtimes ? 1.

  • Page 104: Mode

    11. Lamps Menu 11.3 Mode Single lamp mode The projector will always switch to the lamp with the shortest runtime when the difference between the runtimes of lamp 1 and lamp 2 reaches 100 hours, switching from one lamp to another happens only at switching on of the projector and not during operation. When the lamp fails or reaches its maximum runtime the projector switches automatically to the other lamp without interrupting the projection.

  • Page 105: Economic On/Off

    11. Lamps Menu Image 11-4 When switching from the dual mode to the single mode the lamp with the longest runtime is switched off. If the runtimes are equal (if the projector has always been operated in dual mode) then lamp 1 is switched out. When switching to single mode, returning to the dual mode will not be possible in the first 60 seconds, Dual in the menu is greyed out and LED3 is flickering, thereby preventing hot restrike which may damage the lamp.
  • Page 106 8. Press Back to return. Image 11-6 Lamp runtime warning hrs before end of lamp lifetime Image 11-7 ARNING Lamp replacement should be done by a Barco authorized technician. R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 107: Image Files Menu

    12. Image Files Menu 12. IMAGE FILES MENU Overview • Overview of the Image Files Menu • Introduction to image files • Load file • Auto Image • Edit file • Rename file • Copy • Delete 12.1 Overview of the Image Files Menu Overview •...

  • Page 108: Auto Image

    12. Image Files Menu 4. Use ↑ or ↓ to select Load. 5. Press ENTER. A dialog box is displayed. (image 12-2) 6. Use ↑ or ↓ to select the desired file. Tip: For more info about the available image files and the specifications, see Chapter Standard Image Files. 7.
  • Page 109 12. Image Files Menu The measure of the total number of pixels per line can be done through 2 methods • Limited scan: a windowing is used to allow fast tracking. The operation takes about 20 seconds (depending on file) •...

  • Page 110: Edit File

    12. Image Files Menu 12.5 Edit file Overview • Editing a file • Correct file parameters • Advanced video settings • Advanced Data settings 12.5.1 Editing a file What can be done with the Edit file menu ? The Edit file menu makes it possible to adapt the settings of the file according to the real settings of the connected source. Consult the source specifications before entering the data.

  • Page 111: Correct File Parameters

    12. Image Files Menu Edit custom file Edit custom file Name Video625.c01 Video625.c01 Horizontal: Video625.c02 total active start Active files: period Video625.c01 Vertical: total active Image 12-6 start Advanced Image 12-7 It is recommended to use the default values. 12.5.2 Correct file parameters What is already available during start up ? During the installation of a file with LOAD, the horizontal period, the total number of vertical lines and the interlaced mode are automatically measured and filled in.

  • Page 112: Advanced Data Settings

    12. Image Files Menu A long AGC hold interval eliminates Macrovision disturbances since the AGC is hold during a long interval, thus reducing the ® probability to encounter a Macrovision pulse. ® The sync locking setting is recommended for poor video signals (ex: poor TV signals). Sharpness adjustment can be chosen to be coarse or fine.

  • Page 113: Rename File

    12. Image Files Menu 12.6 Rename file How to rename a file ? 1. Press MENU to activate the menu bar. 2. Press → to select the Image files item. (image 12-12) 3. Press ↓ to pull down the Image files menu. 4.

  • Page 114: Delete

    12. Image Files Menu 8. Press ENTER to activate the input field. Use ← or → to select the characters. Use the ↓ or ↑ to change the value. 9. Press ENTER to confirm. Image 12-15 Copy file Copy file New name: Video625.c01 Video625.c01...
  • Page 115 12. Image Files Menu Image 12-18 Delete custom file Video625.c02 All files Active files: Video625.c01 Image 12-19 R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 116 12. Image Files Menu R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 117: Display Setup

    13. Display Setup 13. DISPLAY SETUP Overview • Full screen representation • Startup screen • TextBox • Take screenshot • Menu bar position • Status bar position • Sliderbox position • Auto Image Setup 13.1 Full screen representation Purpose of the Full screen representation The Full screen representation function forces to use the complete native resolution of the DMD panels independently of the native resolution of the source.

  • Page 118: Startup Screen

    13. Display Setup 13.2 Startup screen What can be done ? When the startup screen is enabled, the identification screen is displayed for a few seconds at startup. This startup screen can be disabled. How to enable/disable the Startup screen? 1.

  • Page 119: Take Screenshot

    13. Display Setup Image 13-3 To enable the menus and dialog boxes again, press the TEXT button on the RCU. 13.4 Take screenshot What can be done ? A screen-shot can be taken from the active projected image. This screen-shot is then saved in a 4 MB RAM and can be used as background (logo).

  • Page 120: Menu Bar Position

    13. Display Setup Screenshot Erasing logo Saving logo Image 13-7 13.5 Menu bar position What can be done ? The menu bar can be centered vertically. The range is from the top of the screen to the middle of the screen. This is useful in applications where the top image content is not displayed (e.g.

  • Page 121: Sliderbox Position

    13. Display Setup Image 13-10 Status bar position This is useful in applications where the bottom image content is not displayed (e.g. due to blanking). How to center the menu ? 1. Press MENU to activate the menu bar. 2. Press → to select the Display setup item. (image 13-11) 3.

  • Page 122: Auto Image Setup

    13. Display Setup Image 13-12 Sliderbox position X position : 619 Y position : 618 Press <ENTER> for fine adjustment Image 13-13 There is a coarse and a fine adjustment of the position, use ENTER (when sliderbox is displayed) to switch between the two.
  • Page 123 13. Display Setup Image 13-14 Autoimage setup Total pixels/lines Start pixel/line Phase Contrast/brightness Image 13-15 How to perform Auto Image ? 1. press Auto Image on the RCU A text box showing a progress bar is displayed. During the AUTO IMAGE measuring process the data source disappears temporarily (logo is displayed if back- ground is set to logo) Autoimage setup Total pixels/lines...
  • Page 124 13. Display Setup R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 125: Installation Menu

    14. Installation menu 14. INSTALLATION MENU Overview • Lens adjustments • Projector address • Orientation • Language • Quick access keys • RS232 baudrate • Automatic startup • Security 14.1 Lens adjustments What can be done ? Motorized lenses can be adjusted in the installation menu or via the dedicated keys on the remote (see chapter “Getting Started”, “Quick lens adjustment”).

  • Page 126: Projector Address

    14. Installation menu Image 14-1 Lens adjustment Lens adjustment for zoom for vertical shift for focus for horizontal shift Press <enter> for SHIFT mode Press <enter> for ZOOM/FOCUS Press <LOGO> or <LENS> Press <LOGO> or <LENS> for test pattern for test pattern Image 14-2 Image 14-3 14.2 Projector address...

  • Page 127: How To Change The Common Address

    14. Installation menu Image 14-4 Projector addresses Projector addresses Projector address Projector address Common RC5 address Common RC5 address Image 14-5 Image 14-6 How to change the common address ? 1. Press MENU to activate the menu bar. 2. Press → to select the Installation. (image 14-7) 3.

  • Page 128: Orientation

    14. Installation menu 14.3 Orientation Projector orientations Depending on how the projector is oriented, the projector’s internal settings have to be adapted. See also Chapter “Installation”, “Orientation”. How to change the orientation ? 1. Press MENU to activate the menu bar. 2.

  • Page 129: Quick Access Keys

    14. Installation menu Image 14-11 14.5 Quick access keys What can be done ? The 3 function keys on top of the RCU (F1, F2 and F3) can be associated with a particular item in one of the menus. Each function which is not password protected can be associated to a function key. How to get an overview of the quick access keys ? 1.

  • Page 130: Rs232 Baudrate

    14. Installation menu 14.6 RS232 baudrate How to change the baudrate? 1. Press MENU to activate the menu bar. 2. Press → to select the Installation item. (image 14-14) 3. Press ↓ to pull down the Installation menu. 4. Use ↑ or ↓ to select RS232 baudrate 5.

  • Page 131: Security

    14. Installation menu Image 14-15 14.8 Security What can be done ? A security function is implemented in the projector that allows a protection against theft. A PIN code allows the user to lock the projector in case of wrong code entry. The PIN code must be entered at each start up (Power ON), entering three times a wrong number triggers a wait cycle of 15 minutes, the second 3 wrong codes a wait cycle of 30 minutes, 1 hour, ...

  • Page 132: How To Disable The Security Mode

    Security Enter your PIN: Enter name of owner Activating the security mode involves the following things: e.g. Barco Educational Center Confirm your PIN code: Image processing department - The startup screen (identification window) Brussels - Belgium will contain a line withthe name of the owner in it.
  • Page 133 14. Installation menu Image 14-21 R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 134 14. Installation menu R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 135: Service

    15. Service 15. SERVICE Overview • Version Table • Lamps and Power supply • Board Identification • Diagnostics 15.1 Version Table What is possible ? To get an overview of the different software and firmware version inside the projector. How to get the version table 1.

  • Page 136: Board Identification

    15. Service 4. Use ↑ or ↓ to select Lamps and Power supply..5. Press ENTER. An options dialog box opens. (image 15-4) Image 15-3 Power Supply µC version Ambient Temp 016°C Max Ambient Temp 045°C Temp Lamp Driver 1 051°C Temp Lamp driver 2 049°C...

  • Page 137: Diagnostics

    15. Service 15.4 Diagnostics Overview • I²C Diagnostics • Lamps and power supply 15.4.1 I²C Diagnostics What can be done ? The I C bus allows the diagnostic of different hardware components How to display the diagnostics menu ? 1. Press MENU to activate the menu bar. 2.
  • Page 138 15. Service 5. Press → to pull down the menu. 6. Use ↑ or ↓ to select Lamps and power supply. 7. Press ENTER to select Lamps and power supply. A text box with errors is displayed. (image 15-10) Image 15-9 Lamps and power supply Projector runtime History...

  • Page 139: Adjustment Menu (Check Up)

    7. Press ENTER to select. The selected test pattern will be displayed. Image 16-1 16.2 Convergence Only for check up of the convergence, no adjustment is possible in the field. When a convergence problem occurred, contact a Barco service center. R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 140: More

    16. Adjustment menu (check up) How to select ? 1. Press MENU to activate the menu bar. 2. Press → to select the Adjustment item. (image 16-2) 3. Press ↓ to pull down the Adjustment menu. 4. Use ↑ or ↓ to select Convergence. 5.

  • Page 141: Standard Image Files

    A. Standard Image Files A. STANDARD IMAGE FILES A.1 Table overview Table overview The following standard image files are pre-programmed in the projector. Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact 1600_48V 1600x600i 48,040 62,500 135,000 2160 1600 640x200i 59,924 15.700 14.318...
  • Page 142 A. Standard Image Files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact hd_30p 1920x1080 30,000 33,750 74,000 2200 1920 1125 1080 hd_60p 1280x720 60,000 45,000 74,000 1650 1280 INTER_GR 1184x886 67,170 61,796 92,941 1504 1184 IQPC_SXGA_2 1366x1024 62,933 106,230 1688 1366 1067...
  • Page 143 A. Standard Image Files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact S1600_67 1600x1280 89,286 200,000 2240 1600 1334 1280 SDI_625 675x278i 25,000 15,625 13,500 SDI_525 675x240i 29,970 15,734 13,500 SG_50 1600x1200 50,000 62,500 130,313 2085 1600 1250 1200 SG_60_1 1280x1024 60,000...
  • Page 144 A. Standard Image Files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact SXGA+_60 1280x1024 63,980 107,997 1688 1280 1066 1024 SXGA2_60 1280x960 59,999 107,998 1800 1280 1000 SXGA2_85 1280x960 85,940 148,505 1728 1280 1011 SXGA50 1280x1024 52,351 88,368 1688 1280 1047 1024...
  • Page 145 A. Standard Image Files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact XGA_75_1 1024x768 60,024 78,752 1312 1024 XGA_75_2 1024x768 61,080 86,000 1408 1024 XGA_85 1024x768 85,000 68,680 94,500 1376 1024 XGA_EOS 1024x768 63,000 50,000 67,200 1344 1024 XGA75_GS 1024x768 74,534 59,701...
  • Page 146 A. Standard Image Files R5976697 CINEVERSUM™ 110 12/05/2004...

  • Page 147: Glossary

    Glossary GLOSSARY 2:2 pull-down The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two video fields. ( AD ) 3:2 pull-down Method used to map the 24 fps of film onto the 30 fps (60 fields) or 25 fps (50 fields), so that one film frame occupies three video fields, the next two, etc.
  • Page 148 Glossary PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type. Projector address Address installed in the projector to be individually controlled. Serial Digital Interface Video Selector The Video Selector is a graphical interface which allows an overview of the different video inputs (Composite Video and S-Video)

  • Page 149: Index

    Index INDEX edit Advanced video settings Address 39–40, 122 Parameters Program Edit 106, 108 Advanced data settings Projector address setting load Adjustment 41–42 Rename Lens 41–42 Filmmode Remote Control Full screen representation Via Menu Bar Adjustments Lens AGC on Video Gamma Aspect ratio Settings...
  • Page 150 Index Input source connection Image files menu 103, 106, 109–110 Input source connections 29–30 Copy file Extended configuration 29–30 Delete file 5-cable Edit file Introduction Introduction S-Video Load file Summarizing Overview Installation Rename file Installation guidelines 11, 13, 41 Image menu 60–67, 70–71, 73, 75–76, 81–82 Installation requirements AGC on Video...
  • Page 151 Index Using the dialog boxes Using the menu S-Video Pin configuration Safety Warnings SDI input No signal security Service Background Service menu 131–133 Noise reduction Board identification Diagnostics I²C Diagnostics Lamps and power supply Orientation Lamps and Power supply Projector orientation Version Table Sharpness Shipped Box...
  • Page 152 Index R5976697 CINEVERSUM™ 110 12/05/2004...
  • Page 153 Revision Sheet Barco nv Home Cinema/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.69, Fax: +32 56.36.83.54 E-mail: antoon.dejaegher@barco.com, Web: www.homecinema.barco.com From: Date: Please correct the following points in this documentation (R5976697/01): page wrong correct R5976697 C VERSUM™ 110 12/05/2004...

This manual is also suitable for:
