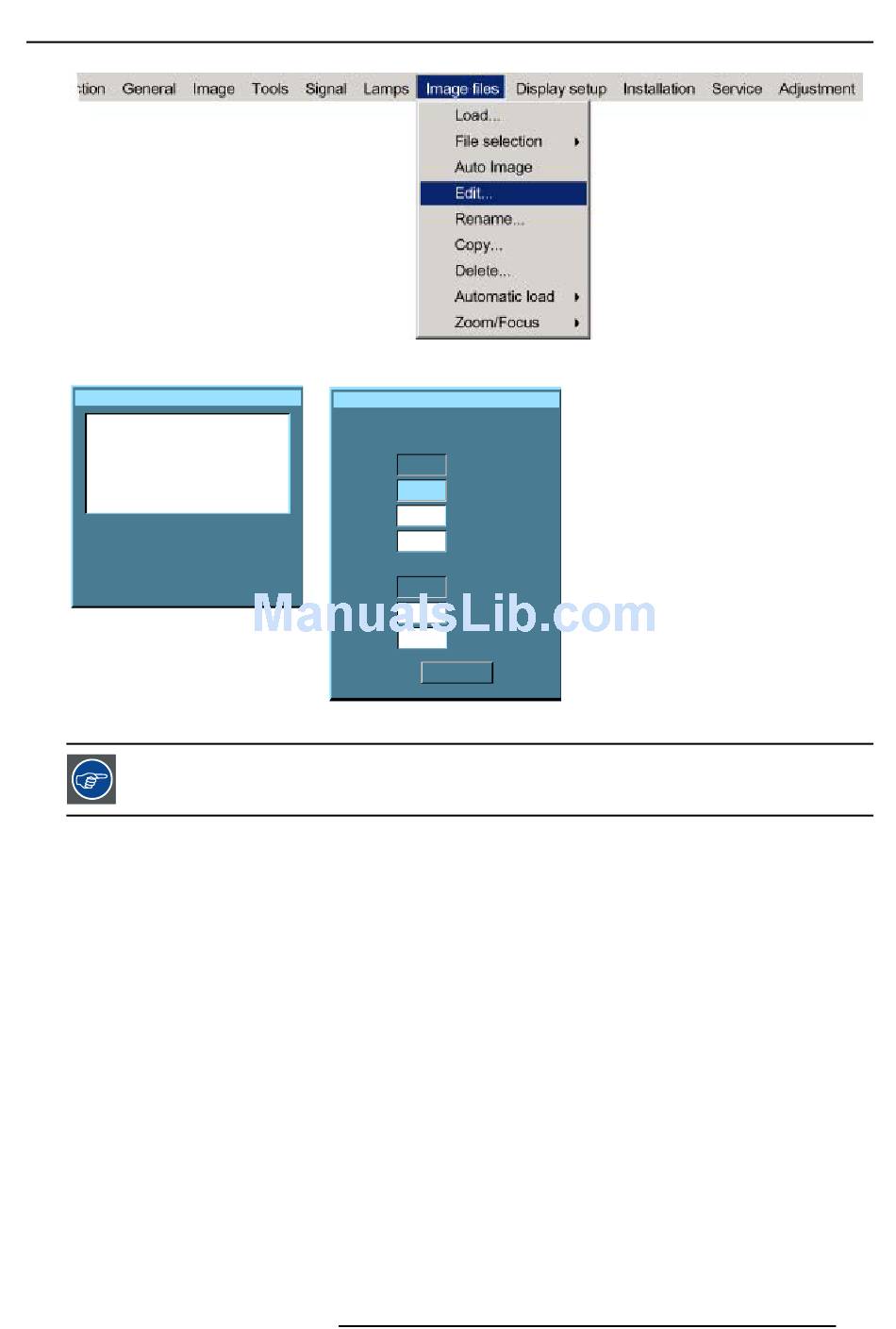

Image 12-5
Edit custom file
Video625.c01
Video625.c02
Active files:
Video625.c01
Image 12-6
It is recommended to use the default values.
12.6.2 Correct file parameters
What is already available during start up ?
During the installation of a file with LOAD, the horizontal period, the total number of vertical lines and the interlaced mode are
automatically measured and filled in. These values will be available when starting up the EDIT procedure of an active file.
Adjustable items
•
Active horizontal pixels : determine the width of the window on the screen. This value is normally given in the source specifi-
cations. If not, adjust until full image is displayed (no missing pixels).
•
Horizontal start in pixels : number of pixels between the beginning of the input signal and the start of the video information in
the signal.
•
Horizontal period in ns : when active file, the correct value will be filled out.
•
Active vertical lines : number of horizontal lines determining the height of the projected image. this value is normally given in
the specification of the source. If not, adjust until full image height is displayed (no missing lines).
•
Vertical start in lines : number of lines between the start of the input signal and start of the image on the screen.
12.6.3 Advanced video settings
Overview
When a video source is selected, the advanced button enables the advanced settings for that video source.
R5976816 RLM R6+ PERFORMER 02/06/2006
Edit custom file
Name
Video625.c01
Horizontal:
total
720
active
680
start
20
period
0
Vertical:
576
total
active
560
start
8
Advanced
Image 12-7
12. Image Files Menu
113
