Chapter 2 Basic Operations
Viewing the Stack Configuration

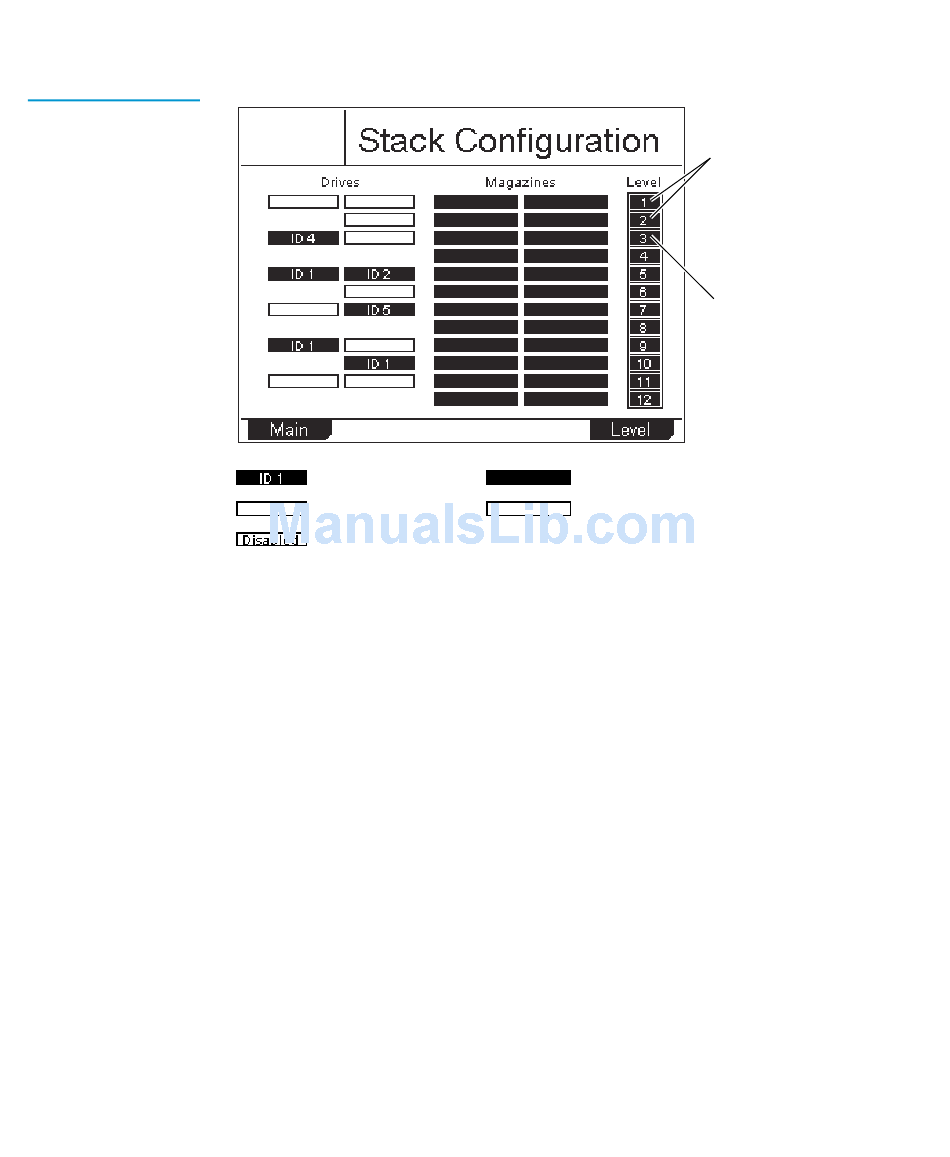

Figure 35 Sample
Stack Configuration
Screen
48
Tandberg Data
= Drive installed
= Drive not installed
= Drive disabled
This screen displays the:
•
Maximum size of the library (this depends on the length of the
StackLink installed)
•
Number of library modules installed in the stack
•
Number, location, and SCSI IDs of the tape drives installed
•
Number and location of the tape cartridge magazines installed
When you are finished viewing the
to return to the main screen.
Tandberg Data M-Series User's Guide
= Magazine installed
= Magazine not installed
screen, press
Stack Configuration
Stack levels
installed
Available stack
levels
Main
